Powder-coated Insulated Busbar
Our powder-coated insulated busbars combine superior electrical insulation (1000V rating) with robust mechanical protection, featuring a high-conductivity aluminum/copper core for minimal energy loss and a durable thermoset epoxy coating that withstands extreme temperatures (-40°C to +120°C), corrosion, and UV exposure. Designed for switchgear, renewable energy systems, and industrial applications, our products stand out through advanced coating technology ensuring void-free insulation, precision engineering with ±0.1mm tolerance for perfect fitment, full compliance with GB/UL/RoHS standards, rapid customization capabilities, and global logistics support - delivering reliable, tailored power distribution solutions worldwide.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
A powder-coated insulated busbar is an electrical conductor with a protective epoxy powder coating, providing excellent insulation (up to 1000V), heat resistance (-40°C to +120°C), and corrosion protection. Made from high-conductivity aluminum or copper, it ensures efficient power distribution in compact spaces. Widely used in switchgear, renewable energy systems, and industrial equipment for safe, reliable, and space-saving electrical connections.
working principle
Powder-coated insulated busbars work by conducting electricity through their high-purity aluminum/copper core while the epoxy powder coating provides electrical insulation and environmental protection. The coating prevents short circuits between phases and to ground, allows for compact installation, and resists heat, moisture, and chemicals. This enables safe, efficient power distribution in tight spaces with minimal energy loss.

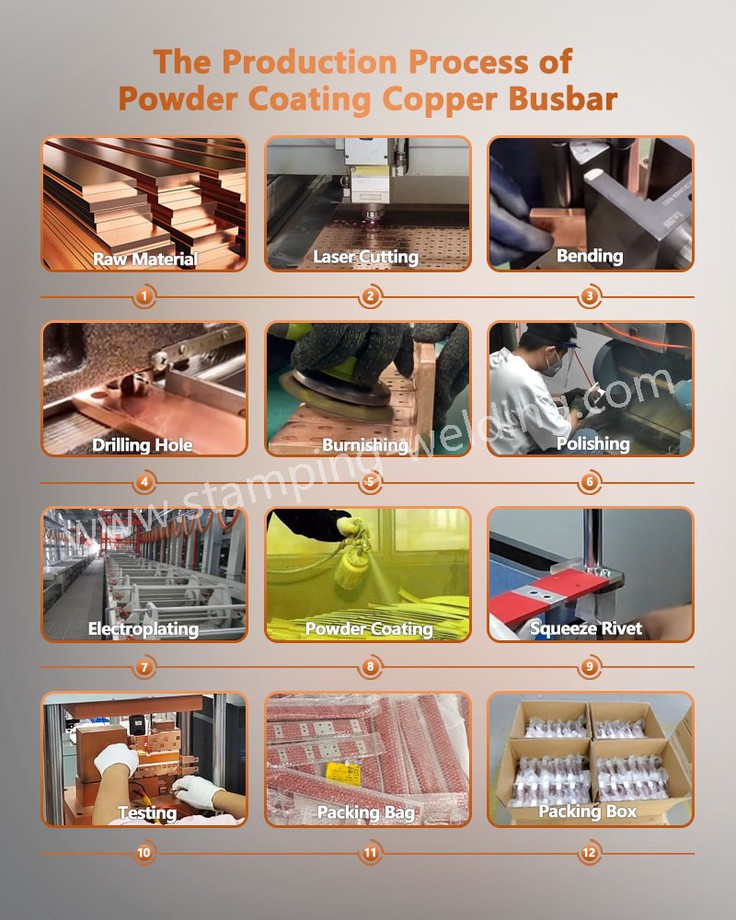

production process
1.Material Preparation
The Powder-sprayed insulated busbar production starts with selecting high-quality aluminum/copper strips, which are precisely cut to required dimensions.
2.Surface Treatment
The metal strips undergo thorough cleaning and chemical treatment to ensure optimal adhesion for the powder coating.
3.Powder Coating Application
Insulated busbar with powder coating is created through automated electrostatic spraying, applying uniform epoxy powder layers.
4.Curing Process
The coated busbars are baked at 180-200°C to form a durable, insulated protective layer.
5.Quality Inspection
Busbar insulated and powder-coated undergoes rigorous testing for dielectric strength, thickness, and surface quality.
6.Packaging
Finished products are carefully packaged with protective materials for shipment.
fields of application
1.Power Distribution Systems
The Powder-sprayed insulated busbar is ideal for switchgear and panel boards, providing reliable insulation and space-saving advantages in electrical distribution networks.
2.Renewable Energy Installations
Insulated busbar with powder coating ensures safe and efficient power transmission in solar farms and wind turbine systems, withstanding harsh environmental conditions.
3.Industrial Machinery
Powder-finished insulated busbar delivers durable power connections for manufacturing equipment, CNC machines, and automated production lines.
4.Electric Vehicle Infrastructure
These Powder-finished insulated busbars are critical components in EV charging stations and battery management systems, offering high current capacity with compact design.
