Copper and Brass Material Selection for Fuse Contacts
Copper fuse contacts are used where electrical conductivity and current-path resistance are primary design considerations. C1100 copper or another specified copper grade may be considered when the electrical and mechanical requirements are compatible with the application. The final grade should be confirmed against the customer's material specification rather than selected by product name alone.

Brass caps may be specified where a formed component requires a different balance of strength, stiffness, machinability and formability.



Brass composition and temper influence forming load, springback and resistance to cracking around drawn walls or punched features.



Material certificates and incoming inspection records should identify the grade and thickness required by the drawing.

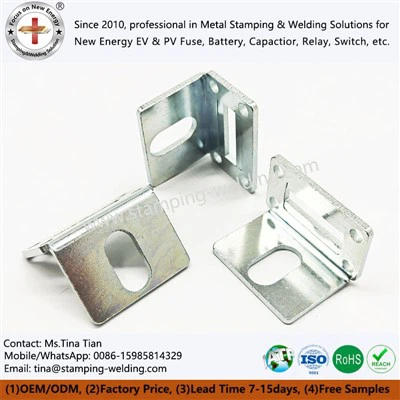

For new energy fuse contact caps, the component design must account for the actual installation envelope, contact interface, and assembly method. A copper contact and a brass cap may serve different mechanical and electrical functions within the same fuse assembly; they should not be treated as interchangeable without design validation.

Progressive Die Stamping and Knife Contact Geometry

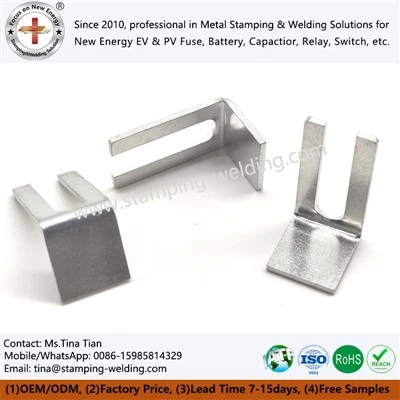

Progressive die stamping is suitable for high-volume conductive components requiring repeatable profiles and controlled feature positions. Depending on part geometry, operations may include blanking, piercing, bending, forming, and cut-off. The die layout should consider strip utilization, pilot positioning, punch clearance and the sequence of forming operations.

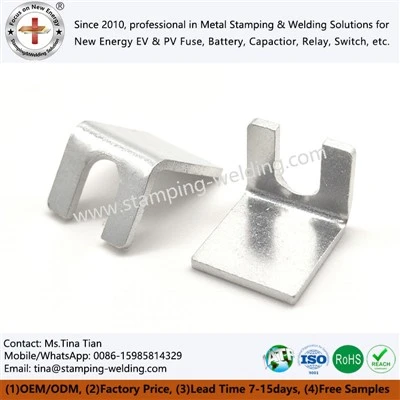

Fuse copper knives require particular attention to thickness, width, flatness, edge condition and insertion geometry. Burr direction and height should be defined because they can affect assembly, contact alignment, and handling. Where the contact is inserted into a holder or mating terminal, the critical dimensions should be referenced to functional datums rather than measured only from the outer profile.

Tooling development should include first-article inspection and a defined plan for monitoring wear-related dimensional changes. A nominal tolerance such as ±0.01 mm should be applied only to features for which the manufacturing process and measurement method have been validated.



Fuse Contact Specifications Table



Parameter	Engineering requirement	Inspection method
Contact material	C1100 copper or specified copper grade	Material certificate and grade verification
Cap material	Brass grade specified on the drawing	Incoming material inspection
Material thickness	Drawing-defined strip or sheet thickness	Calibrated thickness gauge
Knife contact width and thickness	Defined by the mating interface and drawing	Optical measurement or calibrated gauges
Flatness and profile	Drawing-defined geometric tolerances	Optical measurement or CMM where suitable
Edge and burr condition	Acceptance limits specified by the customer	Magnified visual inspection and burr measurement
Plating system	Tin, silver, nickel, or another specified coating	Coating specification and thickness measurement
Joint retention	Customer-defined mechanical acceptance limit	Pull-off or tensile test where applicable
Contact resistance	Defined by the electrical design and test configuration	Four-wire resistance measurement where appropriate



These values describe the engineering control plan. They are not universal limits for every fuse contact. Final acceptance criteria should be agreed upon for each part number and application.



Tooling Controls for Repeatable Production
Punch-to-die clearance: Set according to material grade, thickness, required edge quality, and the geometry of each feature.
Burr control: Define the allowable burr height and direction for contact and insertion surfaces.
Forming stability: Account for material temper, bend radius, springback, and local deformation.
Dimensional monitoring: Track critical widths, thicknesses, hole positions, and contact profiles at the agreed inspection frequency.
Tool maintenance: Monitor wear on punches, die edges, and forming inserts to reduce dimensional drift during production.
First-article approval: Verify the drawing's critical-to-quality dimensions before releasing the production batch.

For high-volume programs, progressive die design should be assessed alongside material yield, downstream joining, inspection time, and expected production volume. These factors determine the practical cost and repeatability of the finished fuse contact.





Contact Plating and Electrical Interface Requirements

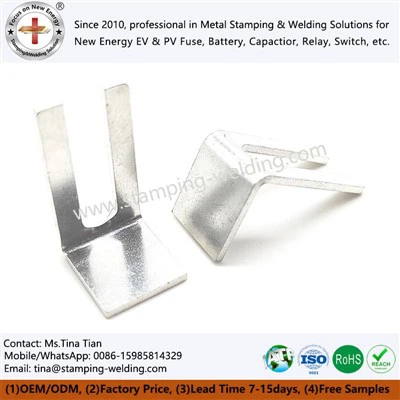

Copper contacts and brass caps may use tin, silver, or nickel-based surface treatments according to the contact design. The appropriate coating depends on the substrate, mating material, contact pressure, operating temperature, humidity, and exposure to corrosive contaminants.

Tin plating is commonly specified for electrical terminals where the coating and mating interface are suitable for the intended service conditions. Silver plating may be used for contact applications with specific electrical requirements. Nickel can serve as a barrier layer or protective coating within a defined plating system.

A plating specification should state the coating type, required thickness, measurement locations, substrate, and applicable test method. A nominal coating thickness alone does not establish the assembly's contact resistance, corrosion performance, or resistance to fretting under vibration.

For each custom fuse contact, the drawing or quality plan should define:
Minimum local plating thickness and measurement locations.
Surface acceptance criteria for bare areas, blisters, peeling and visible defects.
Contact resistance limits and the corresponding test setup, where required.
Environmental qualification conditions, including temperature and humidity exposure.
Mechanical retention criteria for assembled contacts and welded joints.


Joining Methods for Fuse Contact Assemblies
Where a fuse contact is assembled with a cap, terminal, or additional conductive component, the joining method must match the materials and joint geometry.

Resistance welding uses controlled current, electrode force, and weld time to form a localized joint. Electrode condition and component positioning affect repeatability, so the process should be validated against the required electrical and mechanical acceptance criteria.
Silver brazing may be selected for suitable conductive assemblies where filler-metal flow, joint clearance, and thermal exposure can be controlled. Surface cleanliness and appropriate process conditions help reduce incomplete wetting and joint defects.

Tin soldering can be used where the assembly design and operating temperature permit it. The process specification should address wetting, filler material, joint geometry, and inspection requirements.

For dissimilar-metal assemblies, the joining process must be qualified for the particular material combination. A process suitable for copper-to-copper connections should not automatically be assumed suitable for copper-to-brass or other material combinations.
Process Validation and Assembly Reliability



Process	Main control variables	Verification
Resistance welding	Current, weld time, electrode force and positioning	Visual inspection, resistance measurement, and mechanical testing as specified
Silver brazing	Joint clearance, filler material, surface cleanliness and heating profile	Visual inspection and joint testing according to the control plan
Tin soldering	Surface preparation, solder material and thermal profile	Joint inspection and electrical testing where required
Contact plating	Coating type, thickness and surface condition	Coating measurement and appearance inspection
Final assembly	Contact position, mating dimensions and retention	Dimensional and functional checks





Dimensional Inspection and Process Control
Fuse contacts must meet the dimensional requirements of the electrical and mechanical interfaces in which they operate. Inspection should focus on critical features such as contact width, thickness, flatness, hole position, formed angles, edge condition, and plating coverage.

Depending on part geometry and the inspection plan, dimensional verification may use optical measuring systems, calibrated gauges, and CMM equipment. The selected method must provide sufficient resolution and measurement reliability for the specified tolerance. A measurement system's nominal accuracy should not be confused with the tolerance that can be consistently maintained in production.

For stamped copper contacts and brass caps, in-process inspection can detect changes caused by punch wear, material variation, or forming instability. First-article approval should establish the baseline dimensions, and the control plan should define inspection frequency, sampling method and reaction procedures when a result falls outside specification.

Electrical and Mechanical Verification
Where required by the product specification, inspection may include:
Contact resistance measurement using an agreed test current, fixture and measurement method.
Pull-off or tensile testing of welded, brazed or mechanically retained components.
Plating thickness and surface condition inspection.
Dimensional checks on contact interfaces and knife profiles.
Environmental testing under customer-defined temperature, humidity, or vibration conditions.
Batch identification and material traceability.

Electrical resistance results are meaningful only when the test setup, contact force, measurement points, and environmental conditions are controlled. Similarly, mechanical retention limits must be tied to the actual joint design rather than applied as a generic requirement across all components.

Quality Documentation and Customer Requirements
Apollo identifies IATF 16949 and ISO 9001 among its quality-system credentials. The current certificate status, scope, and applicability to the specific manufacturing site should be verified before these credentials are used as evidence for a customer program.

For automotive projects, PPAP Level 3 documentation can be arranged according to customer requirements and actual project scope.



Typical items may include a process flow diagram, PFMEA, control plan, material certificates, dimensional results, and process capability studies where applicable.

Production Traceability and Packaging
A repeatable supply process requires clear identification of material lots, tooling revisions, plating batches and finished-part batches where those records are required by the control plan. Traceability supports investigation of dimensional variation, surface defects or joint performance issues.

Packaging should protect knife edges, formed cap profiles and plated contact surfaces against deformation, abrasion and contamination during storage and transport. The packaging specification should define the quantity per package, lot identification, handling method and any separation required between contact surfaces.










Send Apollo your component drawings and technical requirements for a manufacturing assessment. Include the copper or brass grade, material thickness, contact geometry, plating specification, critical dimensions, joining method, and expected annual volume.



Accepted drawing formats may include.STEP, .DWG, and PDF. If available, include contact resistance limits, pull-off force requirements, mating component drawings, and environmental qualification criteria. This information helps establish the tooling approach, process controls, and inspection plan before quotation.



Apollo can review the submitted information for manufacturability, dimensional risks, and suitable forming or joining processes. A preliminary DFM review and factory quotation can be targeted within 24 hours for complete inquiries, subject to drawing complexity and specification completeness.
