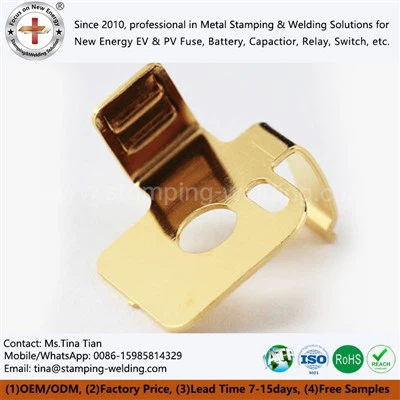

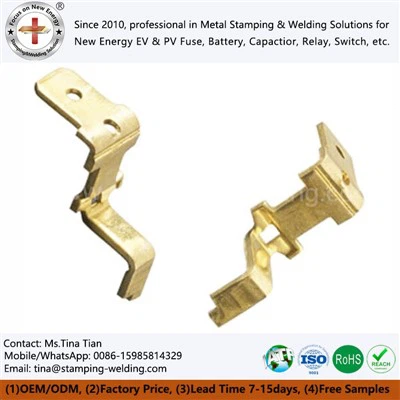

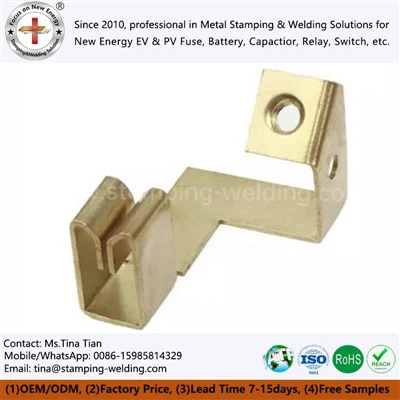

Brass Stamping Part



Brass stamping parts are produced by cutting and plastically deforming copper-zinc alloy sheet or strip through a press and die. The material grade, temper and thickness affect formability, strength, springback, surface quality and dimensional stability. Selecting the correct brass specification is therefore the first step in controlling part performance and production yield.



Apollo's published product information lists H59, H62 and H65 brass for its brass stamping range. The final grade should be selected according to the component's mechanical loading, electrical function, corrosion exposure, and forming geometry. Where a part requires a specific conductivity or strength value, the requirement should be confirmed against the material standard and supplier certificate rather than inferred from the alloy designation alone.

Brass Grade and Forming Considerations
H59 brass: Evaluate the specified material condition, forming depth, and required strength before selecting it for complex profiles.
H62 brass: Consider the balance between forming performance, mechanical properties, and electrical requirements for the intended component.
H65 brass: Confirm the specified temper and forming limits where dimensional stability and surface quality are important.
Material thickness: Establish thickness tolerances and incoming inspection requirements because thickness variation can affect bend geometry, die clearance, and finished dimensions.
Grain direction and bend radius: For parts with tight bends, the material orientation and inside radius should be evaluated to reduce edge cracking.

Precision Die Design and Stamping Sequence
The manufacturing sequence depends on the component's geometry and required output volume. Progressive die stamping can combine punching, blanking, forming, and cut-off operations within a controlled production sequence. For lower-volume or geometrically complex parts, staged tooling or secondary forming may be more suitable.



Die design should account for punch-to-die clearance, material flow, springback compensation, burr direction, and tool wear. For electrical terminals and connector components, dimensional consistency around holes, contact tabs, locating features, and formed edges is particularly important because these features determine fit and assembly alignment.



Apollo can review customer drawings to identify critical-to-quality dimensions before tooling development. The proposed inspection plan should identify datum references, tolerance requirements, measurement methods, and first-article acceptance criteria.



Brass Stamping Part Specifications



Parameter	Specification or selection basis	Inspection method
Material grade	H59, H62, H65 or drawing-specified brass	Material certificate and incoming verification
Material temper	Defined by drawing and applicable material standard	Supplier documentation and material verification
Sheet thickness	Specified by the component drawing	Calibrated micrometer or thickness gauge
Part geometry	Punching, blanking, bending, drawing, or combined forming	Optical measurement and dimensional gauges
Critical dimensions	Drawing-defined tolerances; ±0.01 mm where validated for the feature and process	CMM, optical measurement, or dedicated gauges
Burr condition	Height, direction, and edge condition defined by drawing or inspection plan	Optical inspection or suitable burr measurement
Surface finish	Bare brass, polished finish, or specified plating	Visual inspection and applicable coating tests
Production method	Progressive die, staged stamping, or secondary forming	First-article inspection and in-process checks



The table defines the information that should be agreed upon during engineering review. Final limits depend on the component drawing, material specification, tooling design, and verified production capability.



For parts with tighter dimensional requirements, see Precision Brass Stamping Parts.



Production Planning for Repeat Orders
For repeat production, the tooling plan should define die maintenance intervals, inspection frequency and change-control procedures.



Critical dimensions should be monitored for drift as punches, cutting edges, and forming surfaces wear. Where production volumes justify it, in-process checks and statistical process control can help identify changes before they affect the finished-part lot.



Material utilization should also be reviewed during strip-layout development. Nesting, carrier-strip design, and scrap separation influence yield, but changes to the strip layout must not compromise part strength, edge quality, or dimensional stability.





Brass stamping parts may require additional operations after forming to meet electrical, mechanical or environmental requirements. Depending on the component design, secondary processes can include deburring, cleaning, riveting, resistance welding, soldering and surface plating. The process sequence should be selected to minimize distortion, contamination, and unnecessary handling.



For assemblies that combine stamped brass parts with other metal components, joint design should consider material compatibility, contact area, mechanical load, and heat exposure. Resistance welding parameters must be validated for the actual material combination and geometry. Soldering requires suitable surface preparation, filler material, and thermal control to achieve consistent wetting.

Surface Treatment Selection
Surface treatment should be specified according to the component's end use rather than selected by appearance alone.



Surface treatment	Potential purpose	Engineering checks
Bare brass	General formed components where the substrate surface is acceptable	Surface condition, oxidation and dimensional requirements
Tin plating	Selected electrical terminals and solderable interfaces	Coating thickness, coverage and solderability
Nickel plating	Surface protection or a defined barrier layer in a plating system	Thickness, adhesion and substrate compatibility

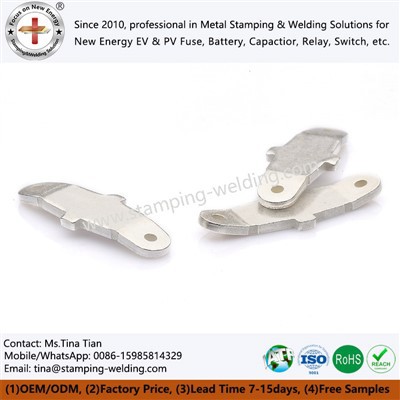

Silver plating	Selected electrical contact interfaces	Coating thickness, porosity and contact requirements
Polishing or deburring	Improve edge condition and surface finish	Burr removal, dimensional change and surface defects



Coating thickness must be defined by the drawing or agreed technical specification. A 3–10 µm coating range should not be applied universally to every brass component; the appropriate value depends on the coating system, substrate, contact interface and operating environment.



For electrical components, plating qualification may include thickness measurements at specified locations, visual examination, adhesion checks, and solderability or contact-resistance testing where required. If parts operate under vibration or repeated mating cycles, the qualification plan should also consider wear and changes in contact resistance.



Joining and Assembly Controls
For parts requiring riveting or welding, the inspection plan should define joint position, retention force, and allowable deformation. A joint that appears acceptable visually may still fail a mechanical retention or electrical resistance requirement. Destructive tests, cross-section examination, or resistance measurements should therefore be selected according to the product's function and customer acceptance criteria.



Recommended controls include:
Inspect stamped edges before joining to prevent burrs from interfering with assembly.
Verify contact and locating features before riveting or welding.
Monitor joint position and retention force against an approved specification.
Inspect plated surfaces after secondary operations for scratches, peeling, or exposed substrate.
Confirm that post-processing does not distort critical dimensions.
For drawing-based production, review Custom Brass Stamping Parts to discuss the required forming sequence and secondary operations.



Request Custom Technical Evaluation





Brass stamping quality depends on material conformity, stable tooling, controlled forming conditions, and reliable dimensional inspection. Apollo's inspection plan for a custom project should be based on the drawing, the agreed control plan, and the functional importance of each feature.



Incoming material checks should verify the specified grade, thickness and documentation. During production, critical dimensions may be monitored through optical measurement, calibrated gauges, or CMM inspection where suitable for the part geometry. Visual checks should cover burrs, cracks, wrinkles, dents, scratches, and other defects that may affect fit or surface treatment.

Inspection Plan for Brass Stamping Parts



Production stage	Main control items	Relevant records
Incoming material	Grade, temper, thickness, and material documentation	Material certificate and incoming inspection record
Tooling approval	Die geometry, critical features, and forming sequence	Tooling review and first-article report
Stamping production	Dimensions, burrs, cracks, forming defects, and tool wear	In-process inspection records
Secondary processing	Rivet position, joint integrity, and surface condition	Process inspection and test records
Plating, if applicable	Coating type, thickness, coverage, and adhesion requirements	Coating certificate or inspection report
Final inspection	Drawing compliance, quantity, packaging, and lot identification	Final inspection report
Automotive program, if applicable	Customer-required process and product validation	Approved PPAP submission package, where required



Dimensional Capability and Process Consistency
Tolerance requirements should be assigned by feature. A ±0.01 mm tolerance may be appropriate for selected dimensions when the geometry, tooling, and measurement system support it; it should not be treated as a universal tolerance for every stamped part.



For dimensions that affect assembly fit, the measurement method should be capable of resolving the required tolerance. The control plan should also identify the inspection frequency and reaction plan when a measurement falls outside the approved range.



Where applicable to the project, process capability analysis can be used to evaluate production consistency. Cpk results should be calculated from appropriate production data and a defined sampling method, not used as a substitute for dimensional inspection or product validation.

Quality Documentation and Traceability
For automotive programs, PPAP Level 3 documentation can be prepared according to the customer's submission requirements and the agreed scope. Typical elements may include the process flow diagram, PFMEA, control plan, dimensional results, material certificates, and process capability studies where applicable.



Apollo's published company information should be used to verify the current scope of IATF 16949 and ISO 9001 certifications before those credentials are stated as applicable to this product line. Certification claims, equipment accuracy and laboratory test capabilities should be supported by valid records.









Submit your component drawings to evaluate material selection, tooling design, forming sequence, and dimensional inspection requirements before production approval.



Please provide your 2D drawings in .DWG or PDF format, 3D models in STEP format, or a technical specification that identifies the brass grade, temper, material thickness, critical dimensions, surface treatment, and annual volume. If applicable, include burr limits, plating thickness, assembly requirements, and customer-specific quality documentation.



Apollo can review the submitted information for manufacturability, proposed stamping processes, and inspection planning. A preliminary DFM review and quotation within 24 hours can be requested for complete inquiries, subject to drawing complexity and specification availability.
