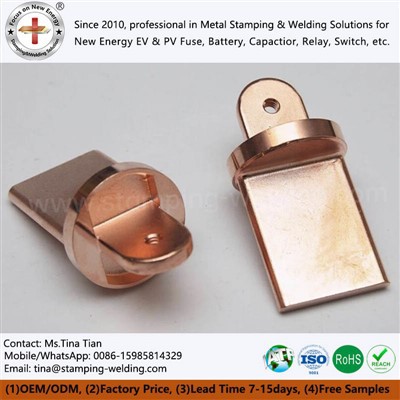

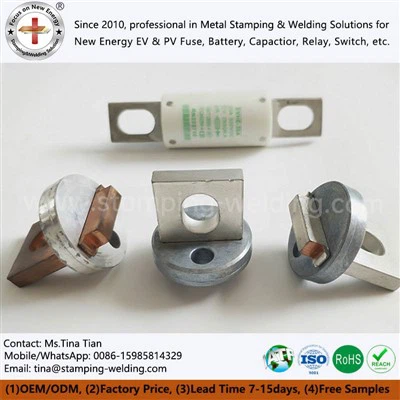

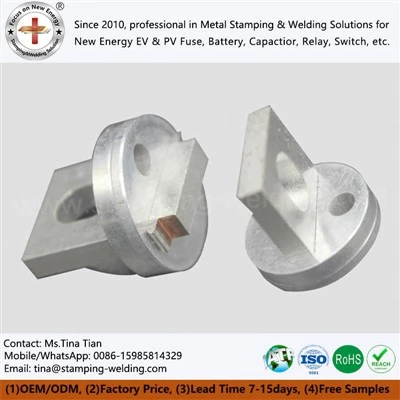

Fast Fuse Contact



Fast fuse contacts form part of the conductive path within a fuse assembly. Material selection and forming geometry must satisfy the specified electrical resistance, mechanical strength, assembly dimensions, and operating temperature. The appropriate material depends on the contact design, current path, joining process and surface finish required by the complete fuse assembly.



Copper grades are commonly considered where electrical conductivity is a primary requirement. Brass may be suitable for components that require a different balance of formability, stiffness and machinability. The material grade, temper and strip thickness should be defined by the approved drawing or material specification rather than selected on conductivity alone.

Progressive Die Stamping for Repeatable Contact Geometry
Progressive die stamping can combine punching, notching, bending and forming operations in a continuous production sequence. Tooling design should consider strip layout, material feed accuracy, burr direction, forming radii, and the dimensional relationship between the contact surface and mounting features.



For high-volume fast fuse contact production, process controls should address:
Contact surface geometry: Flatness, profile, and contact area must remain within the approved drawing tolerances.
Burr and edge control: Punch clearance and tool condition affect edge quality, assembly fit, and the risk of unintended interference.
Forming consistency: Material thickness, temper, and springback influence the final position of formed features.
Tool wear: Progressive die wear can cause dimensional drift and should be monitored through defined inspection intervals.
First-article approval: Critical dimensions and functional interfaces should be verified before production quantities are released.

Where the component includes a welded terminal or secondary contact piece, stamping tolerances must be evaluated together with the joining process. This helps prevent a dimensionally acceptable individual part from producing an out-of-position or poorly fitted finished assembly.



Fast Fuse Contact Specifications



Parameter	Engineering requirement	Verification method
Base material	Copper, brass or specified conductive alloy	Material certificate and incoming inspection
Material thickness	As defined by the approved drawing	Calibrated thickness gauge
Contact geometry	Drawing-defined profile and critical dimensions	Optical measurement or CMM where suitable
Dimensional tolerance	Drawing-specific; ±0.01 mm only where validated	First-article and in-process inspection
Surface finish	Tin, nickel, silver, or other specified finish	Coating specification and surface inspection
Coating thickness	Defined by the contact design and plating specification	Suitable coating-thickness measurement
Joining method	Resistance welding, brazing, or another approved process	Joint inspection and specified mechanical/electrical tests
Electrical acceptance	Defined resistance and operating limits where applicable	Test method and acceptance criteria agreed with customer



These are engineering specification categories, not universal guaranteed limits. The final values must be confirmed against the product drawing, material requirements, and qualification plan.



For related assembly structures, see Fuse Cap and Contact Assembly.





The electrical and mechanical performance of a fast fuse contact depends on the integrity of its contact interface and any permanent joints in the conductive path. Joining methods should be selected according to the component materials, joint geometry, heat input limits and mechanical loading.

Resistance Welding and Brazing
Resistance welding may be used for compatible contact assemblies where current, electrode force, weld time and electrode condition can be controlled. For silver brazing or tin soldering, joint clearance, surface preparation, filler material and thermal exposure require defined process parameters.



Inspection should not rely on appearance alone. Where the joint forms part of a critical current path, the qualification plan should specify appropriate electrical resistance measurement and mechanical retention tests. Destructive sectioning or metallographic examination may be required during process validation when joint structure cannot be adequately assessed by other methods.

Surface Plating and Contact Stability
Tin, nickel, and silver plating serve different purposes. The correct coating depends on the base material, mating surface, operating environment, corrosion exposure, and applicable contact requirements.



A plating specification should define the coating system, minimum local thickness, measurement location, and inspection method. If the contact experiences vibration or repeated mechanical movement, the validation plan should consider contact resistance before and after the relevant environmental or durability tests.



Recommended controls include:
Verification of the specified coating type and thickness.
Inspection for bare areas, blistering, peeling, and visible surface defects.
Contact resistance testing using a defined measurement setup where required.
Pull-off or tensile testing for welded or brazed joints against an agreed acceptance limit.
Temperature-rise evaluation under specified current, ambient temperature, and mounting conditions.

Electrical Performance Must Be Evaluated at Assembly Level
A fast fuse contact is only one component of a protective device. Its local resistance and mechanical integrity can affect the assembly, but the finished fuse's rated current, breaking capacity and time-current characteristics must be verified at the complete fuse level under the applicable standard.



Component-level qualification should therefore distinguish between contact resistance, joint strength and thermal performance on the one hand, and the fuse's protective performance on the other.



Fast fuse contact inspection should connect incoming material verification, stamping quality, surface treatment, joining integrity, and final dimensional acceptance. The control plan should identify critical-to-quality characteristics, inspection frequency, measurement equipment, and the response required when results fall outside specification.

Dimensional and Material Inspection
Optical measuring systems, calibrated gauges, and CMM equipment can be selected according to part geometry and measurement requirements. Thin stamped components may require dedicated fixtures or optical methods to avoid measurement errors caused by deformation during clamping.



Incoming material records should identify the specified grade and thickness. For plated contacts, inspection should cover the required coating type, thickness and visible surface condition. For joined assemblies, the control plan should identify applicable joint resistance, pull-off force, or tensile tests and their acceptance criteria.

Process Control and Production Traceability
A production control plan for fast fuse contacts may include:
Incoming material inspection and material-lot identification.
First-article dimensional approval.
In-process checks for burrs, forming defects, and dimensional drift.
Plating and joining process records.

Final inspection against the approved drawing.
Lot identification and shipment records.

For automotive programs, Apollo can review customer requirements for IATF 16949-related supplier controls and PPAP Level 3 submissions. The actual certification status, applicable manufacturing scope, and available deliverables should be confirmed before they are stated as project commitments. Where required and available, documentation may include a process flow diagram, PFMEA, control plan, dimensional results, material certificates, and process capability studies.

Inspection Plan for Fast Fuse Contacts



Inspection stage	Primary control	Expected record
Incoming material	Material grade, thickness and condition	Material certificate and incoming inspection
First article	Contact profile and critical dimensions	Dimensional inspection report
Stamping	Burrs, forming defects and dimensional consistency	In-process inspection records
Surface treatment	Coating type, thickness, and appearance	Plating inspection record
Joining	Joint appearance, resistance, and retention as specified	Joint inspection and test results
Final inspection	Drawing compliance and part identification	Final inspection report
Shipment	Quantity, packaging, and lot traceability	Shipment and batch records









Send Apollo your 2D drawing, 3D CAD model, or electrical specification to start a manufacturing review for your fast fuse contact project.



Include the material grade, strip thickness, critical dimensions, plating system, joining method, annual volume, and applicable inspection requirements. If available, provide contact resistance limits, mechanical retention requirements, temperature-rise conditions, and the relevant fuse assembly specification.



Apollo can review the information for tooling feasibility, stamping sequence, joining options, and quality documentation requirements before quotation. A preliminary DFM review within 24 hours can be targeted for complete submissions, subject to drawing complexity and engineering availability.
