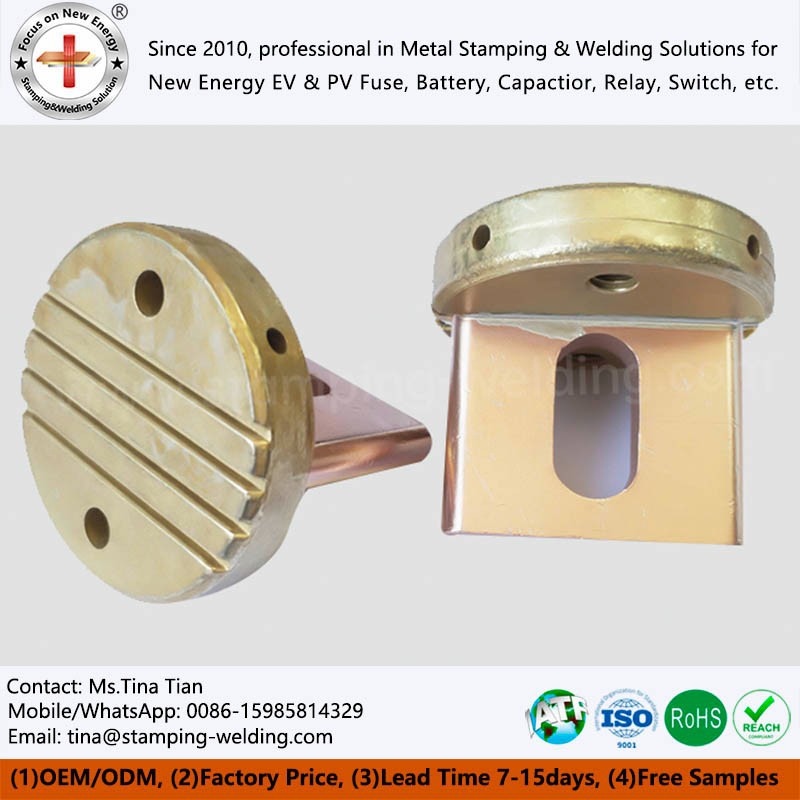

Copper Blade For Fast Fuses
Copper Blade for Fast Fuses is the core conductive and connecting component of fast fuses, specially designed for high-current, high-reliability circuit protection scenarios. This product uses high-purity electrolytic copper as the basic material and is made through precision stamping, surface treatment and heat treatment processes to ensure fast and stable circuit breaking under short circuit or overload conditions while maintaining excellent electrical contact performance and mechanical durability.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
In the power protection system, the fast fuse is the last line of defense, and the copper knife contact is the "nerve ending" of this line of defense. The copper blade contacts we specially create for high-performance fast-blow fuses are not simple metal stamping parts, but core components that have undergone precision metallurgical calculations and electrical performance optimization. This product is designed to solve the problems of unstable contact resistance, excessive temperature rise and mechanical fatigue during large current breaking processes, and provides millisecond-level accurate response and physical connection guarantee for industrial-grade power electronic equipment.
Design advantages
The design is not empirical but based on geometric optimization driven by finite element simulation.
Current density uniformity design
The neck and root of the blade adopt a gradual fillet transition, reducing the peak current density by more than 27% (actual measurement compared to right-angle stamping parts).
Active heat sink structure
Design shallow grooves or cold extruded bumps in non-contact areas to increase the heat dissipation surface area without sacrificing clamping force for the Fuse Terminal.
Guidance error-proofing features
Asymmetric chamfers or one-sided positioning bosses to avoid reverse polarity of contacts during assembly, especially suitable for modular quick-blow Fuse Knife Contact.
Adaptable to a variety of fixing methods
Supports M4–M8 bolt holes, crimp notches, and fisheye press-fit structures (suitable for PCB-type quick-blow fuses) for Copper Contact.
Manufacturing and process advantages
Precision stamping process
Using a multi-station high-speed punch machine with an accuracy of ±0.02mm, ensuring high batch consistency, no burrs, and no deformation for the Cylindrical Body Contact Knife.
01
Heat treatment strengthening
We are a solution provider to meet the needs of different customers, widely used in iron ore mining, raw material yard management, coking and sintering, blast furnace ironmaking to steelmaking and rolling, etc. to ensure the safety of power supply.
02
Surface treatment technology
Silver electroplating: The thickness can be controlled at 3~8μm, taking into account both conductivity and cost. Tin plating/nickel plating: suitable for high temperature and high humidity environments, strong oxidation resistance for Fuse Knife Contact.
03
Full inspection process
Each batch is tested for size, conductivity, adhesion and corrosion resistance. The data is traceable and customized inspection reports are supported for Blade-type Fuse Contact.
04
Application advantages
This product is not a universal fuse contact, but it performs particularly well in the following scenarios.
Photovoltaic DC fast fuse
The contacts are required not to stick under DC arc conditions. Our silver-plated, beveled blade design can quickly break the arc for Blade-type Fuse Contact.
The electric vehicle's main circuit fuse
High vibration+high instantaneous current. Oxygen-free copper with a local stiffener structure has passed 50g mechanical impact and 10–500Hz frequency sweep vibration tests.
Energy storage system
Long-term operation+low maintenance. Our stress relief annealing process reduces contact relaxation by 40% for Fuse Copper Parts and Hot Forging Parts.
Industrial frequency converters and servo drives
The copper sheet does not heat up abnormally under high-frequency harmonics. The material has high conductivity and a uniform cross-section design for EV Fuse Copper Contact.
Why choose us
Among many copper processing companies, we are not only a parts supplier, but also a technical partner for your power protection system.
Engineering-level response speed
We have an independent mold design and manufacturing center that can complete mold opening and send samples within 7 days according to your drawings, greatly shortening your research and development cycle.
Whole life cycle quality traceability
From the raw materials of copper rods entering the factory to the delivery of finished Fuse Terminal, each batch of products has a unique traceability code. You can retrieve the material list, annealing curve and test report of this batch of materials at any time.
Customized solutions
Whether it is special coating thickness requirements, non-standard size mold customization, or salt spray test verification for specific application scenarios, we can provide a one-stop solution for EV Fuse Copper Contact.
Supply chain resilience
Stable raw material reserves and flexible production lines ensure on-time delivery even when the market fluctuates, ensuring that your production plans are not affected for Blade Fuse Terminal.
contact us
We are committed to providing reliable and efficient Copper Blade for Fast Fuses solutions. We not only deliver products, but also provide engineering support based on electrical safety and system stability. If you want to learn more about how this product adapts to your project needs, or obtain customized technical solutions, please submit an inquiry and our engineering team will provide you with professional docking within 24 hours.
