Copper BusBar



Custom Copper Busbar Manufacturer for Bare, Grounding, and Plated Copper Busbars





Xiamen Apollo Stamping Welding Technology manufactures custom copper busbars for electrical distribution, grounding systems, industrial power equipment, and new energy applications. Our product range includes bare copper busbars, grounding bars, tin-plated copper busbars, and nickel-plated copper busbars. Copper grades such as T2, C1100, and equivalent specifications are selected according to electrical conductivity, mechanical properties, and customer requirements.



As a direct manufacturer, Apollo supports drawing review, DFM assessment, tooling development, precision stamping, CNC punching and bending, and surface finishing. Customers can specify conductor dimensions, mounting holes, bending angles, plating thickness, and inspection requirements. Production acceptance criteria are established against approved drawings and material specifications, with batch inspection and documentation arranged according to project requirements.



Request a Factory Direct Quote





Explore Our Copper Busbar Product Catalog





Browse bare, grounding, tin-plated, and nickel-plated copper busbars for electrical distribution and custom power connection assemblies.

First 1234567 Last 1/11


Material Standards, Tooling & Forming Processes





Copper busbars require stable conductivity, mechanical strength, and corrosion resistance for long-term electrical connection. Apollo selects C1100 pure copper and T2 electrolytic copper as primary materials because of their high conductivity and excellent forming characteristics.



C1100 copper provides electrical conductivity close to 100% IACS, reducing power loss and heat generation during continuous current transmission. For grounding busbars, the material selection helps maintain reliable fault current conduction and stable grounding performance.



The manufacturing process includes precision cutting, progressive stamping, CNC bending, and drilling. For customized copper busbars, Apollo controls hole position, bending angle, and mounting dimensions with tolerance down to ±0.01mm according to customer drawings.

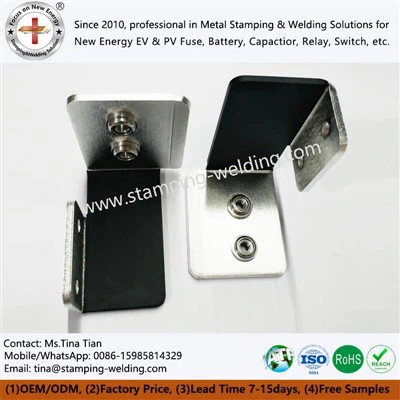

For applications requiring environmental protection, tin-plated copper busbars improve oxidation resistance and solderability, while nickel-plated copper busbars provide enhanced protection under high-temperature and humid operating conditions.



Copper Busbar Manufacturing Specifications



Parameter Specification
Base Material C1100 Pure Copper / T2 Copper
Electrical Conductivity ≥100% IACS
Copper Thickness 1 mm- 20 mm Custom
Surface Plating Tin / Nickel / Silver Plating
Tin Plating Thickness 3-10μm
Nickel Plating Thickness 3-10μm
Dimensional Accuracy Tolerance ±0.01mm
Processing Method Progressive Stamping / CNC Bending
Application Grounding System, EV, Electrical Cabinet, Power Distribution





Advanced Joining, Insulation & Surface Treatments





Copper busbar surface treatment directly affects contact reliability, oxidation resistance, and service life.



Apollo provides tin-plated copper busbars and nickel-plated copper busbars according to electrical and environmental requirements.



Tin plating is widely used for power connection applications because it provides good conductivity, solderability, and oxidation resistance.



Nickel plating provides stronger thermal stability and corrosion protection for applications exposed to humidity, temperature cycling, or industrial environments.



The plating process is controlled through thickness measurement and adhesion testing to ensure coating consistency. Surface treatment selection is based on current load, operating temperature, and installation environment.



For complex busbar assemblies, Apollo also supports laser welding, resistance welding, and mechanical joining processes. Welding parameters are controlled to maintain joint strength and electrical continuity.



Request Custom Technical Evaluation





Quality Control & Certifications at Apollo





Apollo applies strict inspection procedures for every copper busbar production stage, from raw copper material verification to final shipment inspection.



Incoming copper materials are checked for chemical composition, conductivity, and mechanical properties. During production, dimensional accuracy is verified using Hexagon/Zeiss CMM equipment with measurement accuracy up to 0.0007mm and Nikon optical inspection systems.



Final inspection includes:

Electrical conductivity testing

Plating thickness measurement

Contact resistance testing

Dimensional inspection

Temperature rise testing

Salt spray corrosion testing

Mechanical strength verification



Apollo operates according to ISO 9001 and IATF 16949:2016 quality management systems. Automotive and energy customers can receive PPAP Level 3 documentation including PFMEA, Control Plan, CPK analysis, and material certificates.





Frequently Asked Questions





Q: What copper material is commonly used for grounding busbars?

A: Grounding busbars normally use C1100 pure copper or T2 copper because of their high conductivity and stable mechanical properties. Apollo supplies customized grounding busbars according to current rating, installation structure and electrical safety requirements.

Q: Why choose tin-plated copper busbars instead of bare copper busbars?

A: Tin-plated copper busbars provide improved oxidation resistance and surface protection compared with untreated copper. The coating helps maintain stable contact performance and reduces corrosion risks in humid or outdoor electrical environments.

Q: What is the difference between nickel-plated and tin-plated copper busbars?

A: Tin plating provides good conductivity and solderability for general electrical connections. Nickel plating offers stronger temperature resistance and corrosion protection for demanding environments such as industrial equipment and high-temperature applications.

Q: Can Apollo manufacture custom copper busbars based on customer drawings?

A: Yes. Apollo supports custom copper busbar manufacturing from CAD drawings, including stamping, bending, drilling and plating processes. Engineers provide DFM analysis, prototype support, and PPAP Level 3 documents for mass production projects.





Request Custom Copper Busbar Manufacturing Support





Submit your 2D/3D CAD drawings (.STEP, .DWG) or electrical specifications to Apollo engineers. Our team provides free DFM analysis, material recommendation, and production evaluation within 24 hours.



With precision stamping equipment, CNC forming capability, plating control, and automotive quality management systems, Apollo supports global customers requiring stable copper busbar supply for EV, energy storage, electrical cabinets, and industrial power applications.



Submit Copper Busbar Drawing for Engineering Review

We're well-known as one of the leading copper busbar manufacturers and suppliers in China. Please feel free to buy high quality copper busbar at competitive price from our factory. For more information, contact us now.
