Industrial BusBar
Industrial busbars serve as the core conductive interconnects in power distribution systems, specifically engineered for high-power-density applications. Fabricated from high-purity copper or aluminum substrates through precision stamping, plating, and insulation coating processes, they offer low impedance, high current-carrying capacity, excellent heat dissipation, and electromagnetic interference resistance. Widely utilized in critical sectors—such as film capacitors for new energy vehicles, inverters for photovoltaic energy storage, power distribution cabinets, and data center UPS systems—they provide safe, efficient, and reliable power transmission solutions to customers worldwide.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
What is an industrial busbar?
We make our industrial busbars from high-purity electrolytic copper using precision stamping, CNC bending, and automated welding. Optimized for electrical and thermal performance, they provide stable current carrying and low contact resistance. We offer end-to-end OEM customization, including material selection, structural design, multi-layer lamination, custom bending, insulation coating, and mass production, delivering reliable, efficient, and cost-effective power transmission solutions.
Manufacturing process for busbars
Product Features

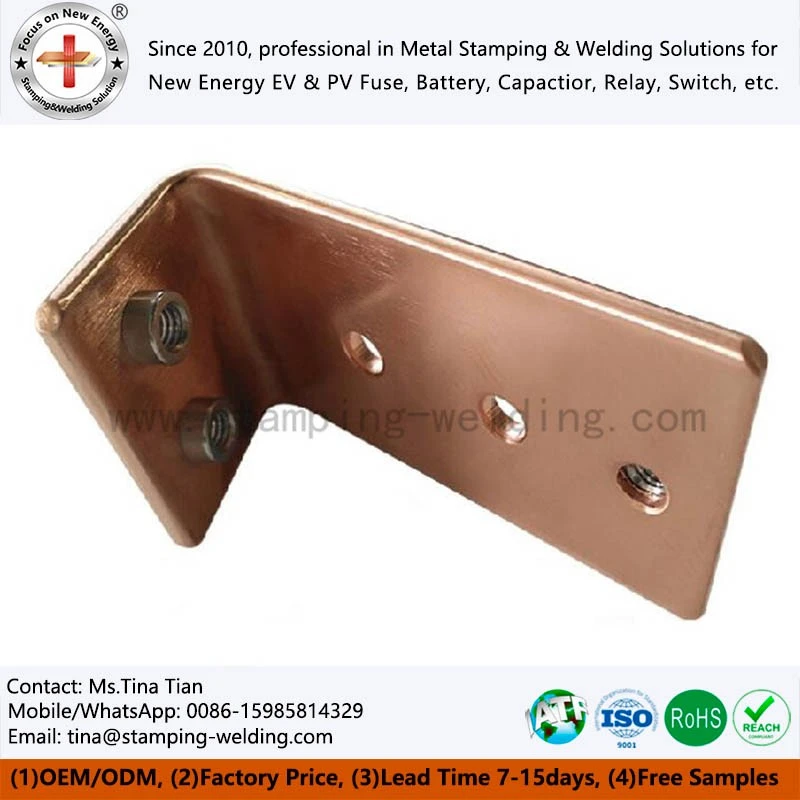

Electrical copper busbar provide efficient power distribution and can be customized to fit diverse equipment and installation spaces.
Materials and Manufacturing
High-grade power bar busbar provides excellent conductivity and ductility, enabling precise stamping, cutting, bending, and surface finishing.
Surface Treatment and Connection Design
Power bar busbar feature customized connection zones, mounting holes, coatings, and insulation for reliable assembly and performance.
Custom Manufacturing

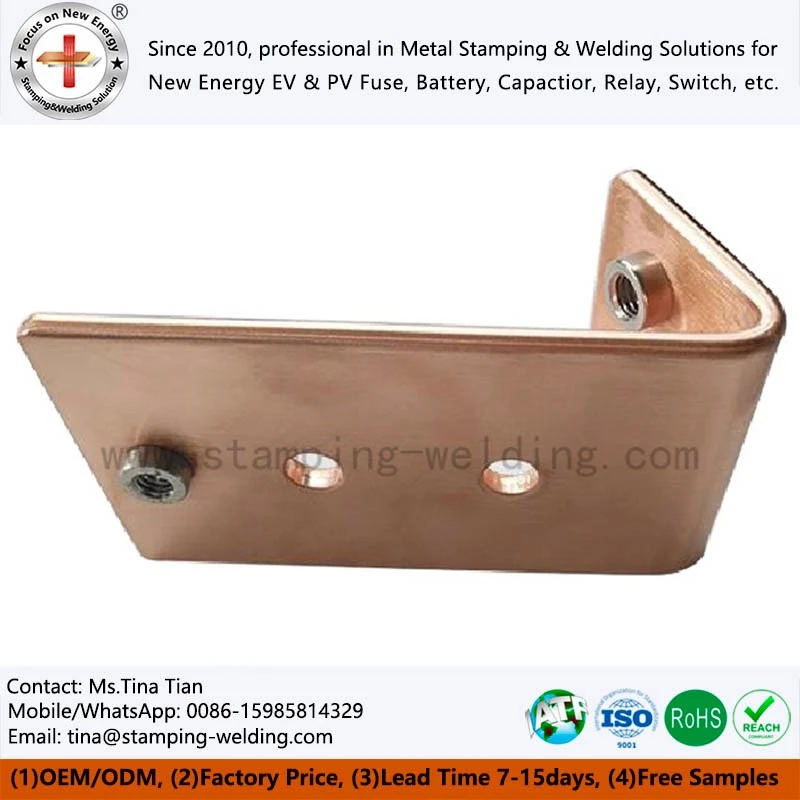

Custom copper solid busbar are developed from CAD files, 3D models, samples, or specifications for precise fit and reliable production.
Material Advantages of Solid Copper Busbars
Superior Electrical and Thermal Conductivity
High-purity copper solid busbar offers low resistivity, ensuring minimal power loss during high-current transmission. The synergy between thermal and electrical conductivity allows heat to dissipate rapidly and evenly along the conductor, preventing localized overheating and ensuring stable, reliable busbar under full load.
Inherent Corrosion Resistance and Stability
A dense oxide film naturally forms on the positive busbar surface, effectively shielding it from industrial corrosive agents. Eliminating the need for external coatings, the material resists degradation during long-term operation and maintains constant contact resistance, significantly reducing maintenance frequency and costs.
High Ductility and Formability
Copper's excellent plasticity supports precision bending, punching, and custom shaping. Battery busbar can be processed without the risk of micro-cracking and quickly adapted to complex cabinet layouts and on-site installation conditions, significantly shortening project delivery times.
Application scenarios
New Energy Sector
Industrial busbars deployed at the DC collection points of photovoltaic plants, in battery interconnects for energy storage systems, and in wind power converters to establish high-efficiency, low-impedance power transmission links.
01
Rail Transit Sector

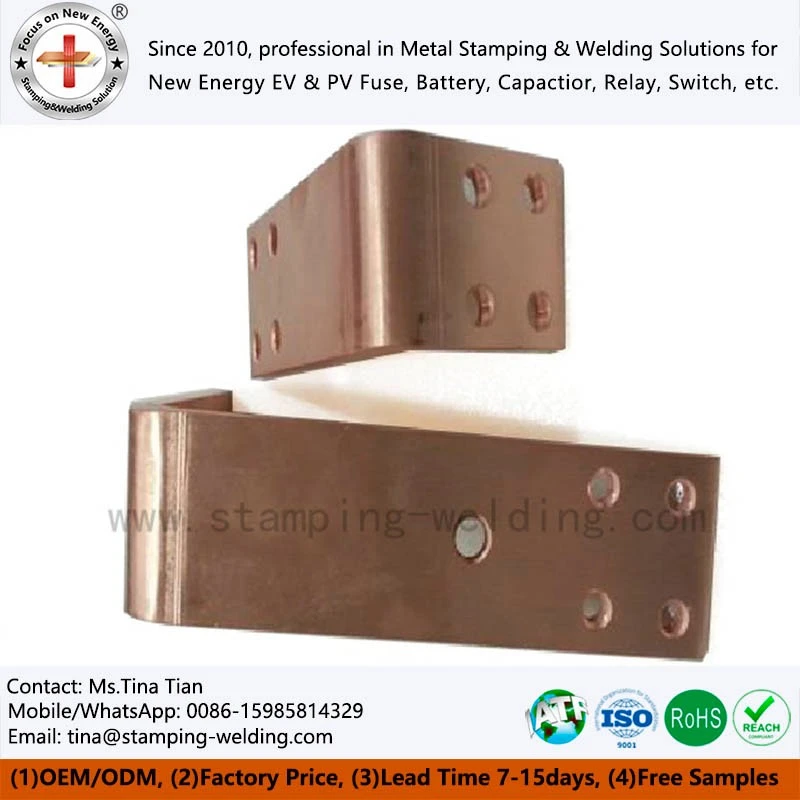

Ground busbar utilized in metro traction power networks and onboard auxiliary power distribution units, ensuring continuous and stable power delivery despite vibration and mechanical shock.
02
Metallurgy and Chemical Industry
BusBar voltage designed for highly corrosive environments, these components are used for electrode connections in large-scale electrolytic installations and at the output terminals of rectification equipment, guaranteeing uninterrupted power supply for electrochemical processes.
03
Data Center Sector
isolated ground bus bar serves as the backbone for UPS output busbars and rack-level power distribution units, meeting the power demands of computing infrastructure with ultra-low impedance.
04
High-End Manufacturing Sector
Busbar connectors integrated into high-current power distribution architectures for production lines-such as injection molding, laser processing, and surface treatment-to ensure power quality and process consistency for precision equipment.
05
Frequently Asked Questions
1. Do you support customization involving non-standard bending and cutouts based on the specific cabinet space at the site?
Yes. We conduct structural simulations based on the project's 3D layout and electrical parameters, providing precision cold bending, punching, and processing of non-standard cross-sections.
2. How do you provide protection for coastal environments with high salt spray or chemical plants with highly corrosive atmospheres?
We offer multi-layer surface treatments-such as tin, silver, and nickel plating, as well as specialized passivation-combined with highly weather-resistant insulation coatings; material selection is customized based on the specific corrosive environment.
3. Can you provide simulation reports regarding thermal and dynamic stability under short-circuit current conditions?
Yes. We perform simulation verification based on the project's short-circuit capacity and load data, delivering structural optimization recommendations and reliability assessment reports.
4.What is the lead time from parameter confirmation to the delivery of the first sample?
About 10-15 days for samples, 10-15 days for mass production; lead times for mass production are negotiated and finalized according to project milestones.
Contact Us
If you are advancing a specific project or need a stable, reliable cu BusBar solution for the cabinet system, please share your drawing requirements and operating environment. We will provide you with a clear technical response from the perspective of engineering suitability and long-term operation reliability.
