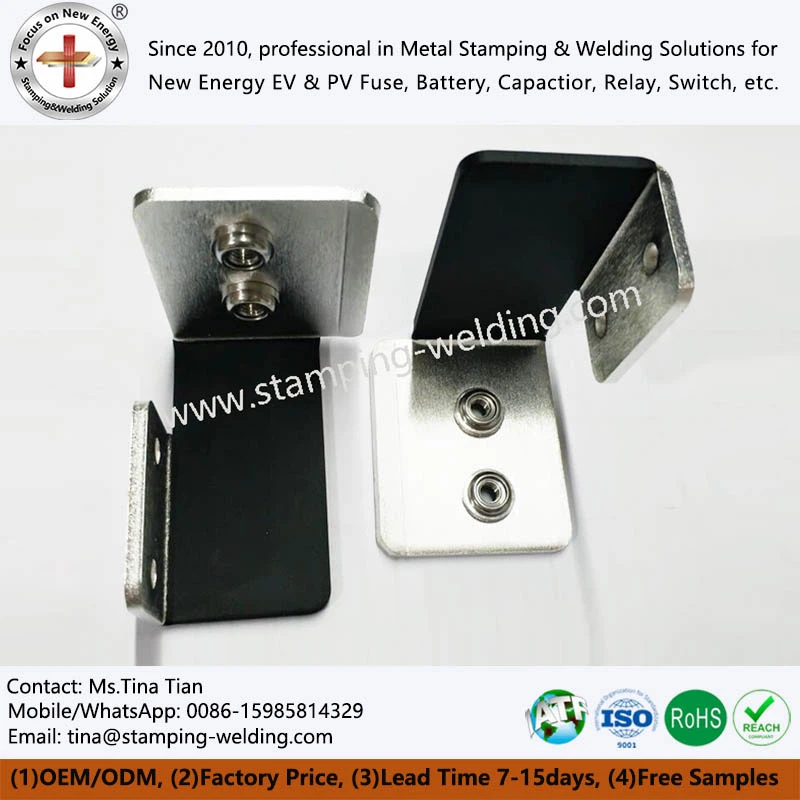

Nickel-Plated BusBars
Nickel-Plated BusBars are the core connection component of modern industrial electrical systems. It is manufactured using a high-purity copper substrate combined with a multi-layer functional electroplating process. Different from the single conductive function of traditional busbars, our Flat Bar Red Pure Copper Nickel Plating represents a systematic solution for electrical connection technology - achieving a multi-dimensional balance of corrosion resistance, mechanical strength and long-term reliability while ensuring excellent conductive performance.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

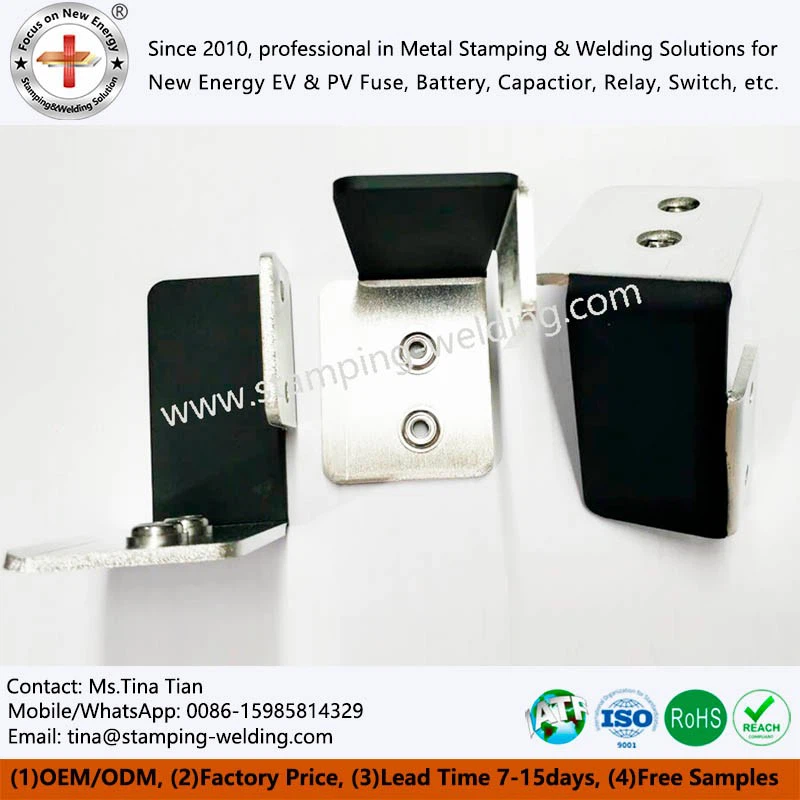

Nickel-Plated BusBars
This product is specially designed to solve the problems of high-frequency skin effect, high-temperature oxidation, and contact resistance drift in harsh environments. Whether it is a high-voltage power distribution unit for electric vehicles, a battery cluster connection for an energy storage system, or a traction converter for rail transit, our Standard Nickel Plating Flat Busbar can provide electrical performance and mechanical strength that exceed industry standards, ensuring the purity and efficiency of current transmission.
Core product feature system
Selection of base materials
C11000 electrolytic copper, purity ≥99.9%, initial conductivity reaches 101% IACS for Nickel Plated Bus Bars.
Plating structure
Innovative three-layer nickel plating system (semi-bright nickel/high-sulfur nickel/bright nickel), total thickness 8-15μm, can be customized.
Interface control
Proprietary pretreatment technology ensures that the Standard Nickel Plating Flat Busbar interface bonding strength exceeds the industry standard by 40%.
Cross-section optimization
Special-shaped cross-section design based on current density distribution simulation to reduce skin effect losses for Nickel plated Copper Bus Bar.
Edge strengthening
The corner area coating thickening technology eliminates early failure caused by electric field concentration for Flat Bar Red Pure Copper Nickel Plating.
Thermal expansion design
An integrated thermal expansion compensation structure to avoid mechanical stress caused by temperature cycles.
Technical features
Contact resistance stability
In the wet heat alternating test (such as IEC 60068-2-30), the change rate of contact resistance of the Standard Nickel Plating Flat Busbar is significantly lower than that of the tin-plated busbar.
01
Galvanic corrosion compatibility
Nickel has a small potential difference with common terminal materials such as aluminum, copper, and stainless steel, making it less prone to severe galvanic corrosion in mixed-metal assemblies.
02
Solderability and connectability
Support: Ultrasonic welding, laser welding
Bolt tightening (it is recommended to use gaskets to control pressure) for Flat Bar Red Pure Copper Nickel Plating.
03
Insulation friendly
The adhesion of the nickel-plated surface to heat shrink tubing, epoxy powder coating, and insulating supports is better than that of passivated Nickel Plated Bus Bars.
04
Physical parameter performance
High hardness and wear resistance
The Vickers hardness of the nickel layer is significantly higher than that of the tin layer, which makes the surface of the busbar less prone to scratches or plastic deformation during mechanical operations such as bolt tightening and plug-in connections.
Thermal stability
In high-temperature environments, the nickel layer is not easy to diffuse into the copper substrate, effectively inhibiting the formation of intermetallic compounds and maintaining long-term stability of contact resistance for Nickel Plated Bus Bars.
Appearance identification
It presents a unique silver-white metallic luster, with high surface finish and easy visual quality inspection for Flat Bar Red Pure Copper Nickel Plating.
Why choose us
Process logic comes first
We not only provide quotations, but also provide matching suggestions for coating thickness, hardness, porosity and working conditions.
Reject "decorative nickel plating"
All Standard Nickel Plating Flat Busbars undergo cross-section sealing and dehydrogenation treatment in accordance with engineering-level requirements.
Design collaboration ability
Can participate in the customer's review process from structural layout to bolt torque definition for Nickel Plated Copper Busbars.
Transparent process documentation
Coating metallographic photos, thickness distribution diagrams, and contact resistance test records can be provided for Nickel Plated Bus Bars.
contact us
We not only provide Nickel-Plated BusBars that meet standards, but also provide you with engineering-proven conductive solutions to help your project remain rock-solid under harsh working conditions. Welcome to contact us to obtain exclusive technical specifications and sample testing.
