Tin-Plated Insulated Bus Bar
In modern power electronics and new energy architecture, the Tin-Plated Insulated Bus Bar is not only the carrier of current but also the cornerstone of system safety and efficiency. Through the dual process of surface chemical protection and overall insulation treatment, Tin-Plated Insulated Bus Bar solves the pain points of oxidation, corrosion, and electrical short circuits of traditional bare copper busbars in complex environments. This product is specially designed for high humidity, high salt spray, and high vibration environments, and is widely used in new energy vehicles, energy storage systems (BESS), photovoltaic inverters, and rail transit fields. We provide not only conductors, but a set of electrical connection solutions that have undergone precise engineering calculations to ensure the ultimate stability and safety of current transmission during the entire life cycle of the equipment.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Tin-Plated Insulated Bus Bar
In modern power electronics and new energy architecture, Tin-Plated Insulated Bus Bar is not only the carrier of current but also the cornerstone of system safety and efficiency. Through the dual process of surface chemical protection and overall insulation treatment, Insulating Coatings Busbar Bar solves the pain points of oxidation, corrosion, and electrical short circuits of traditional bare copper busbars in complex environments. This product is specially designed for high humidity, high salt spray, and high vibration environments, and is widely used in new energy vehicles, energy storage systems (BESS), photovoltaic inverters, and rail transit fields. We provide not only conductors, but a set of electrical connection solutions that have undergone precise engineering calculations to ensure the ultimate stability and safety of current transmission during the entire life cycle of the equipment.
Product nature and core features
Busbar Insulation Paint is a rigid conductive connector made of high-purity copper/aluminum as the base material. After precision cutting and shaping, the surface is professionally tin-plated and then covered with a special insulating layer. Epoxy Spray Copper Bus Bar core function is to realize the connection between equipment in high and low voltage power systems. Rigid conductive connection, current distribution and signal transmission. At the same time, through the double protection of tin plating layer and insulation layer, Epoxy Powder Coated Busbars avoids oxidation, corrosion, leakage and other safety hazards, and solves the industry pain points of traditional busbars that are easy to oxidize, have high contact resistance and lack safety.
Structural features

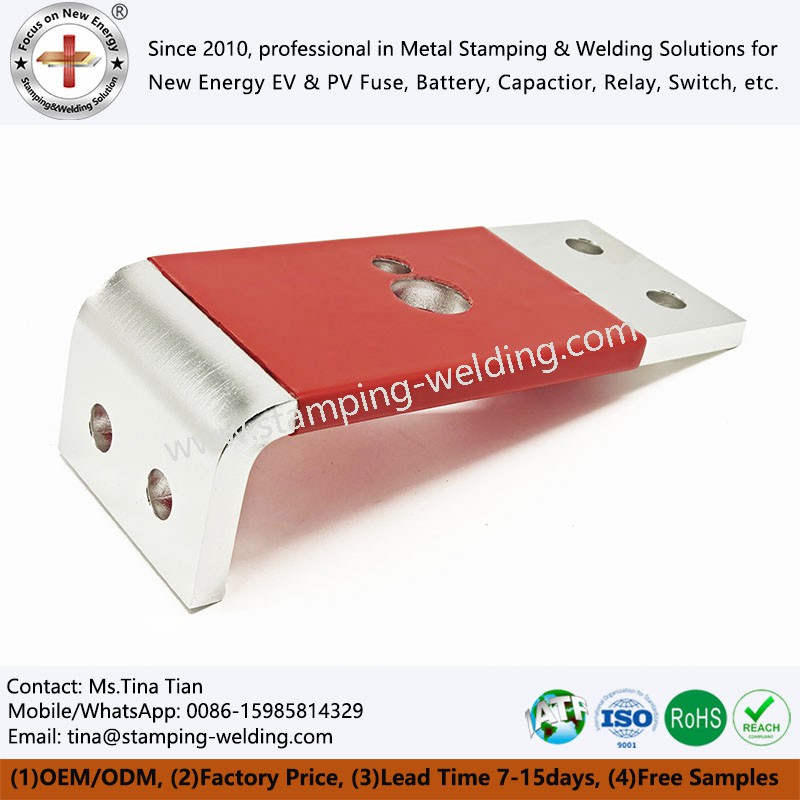

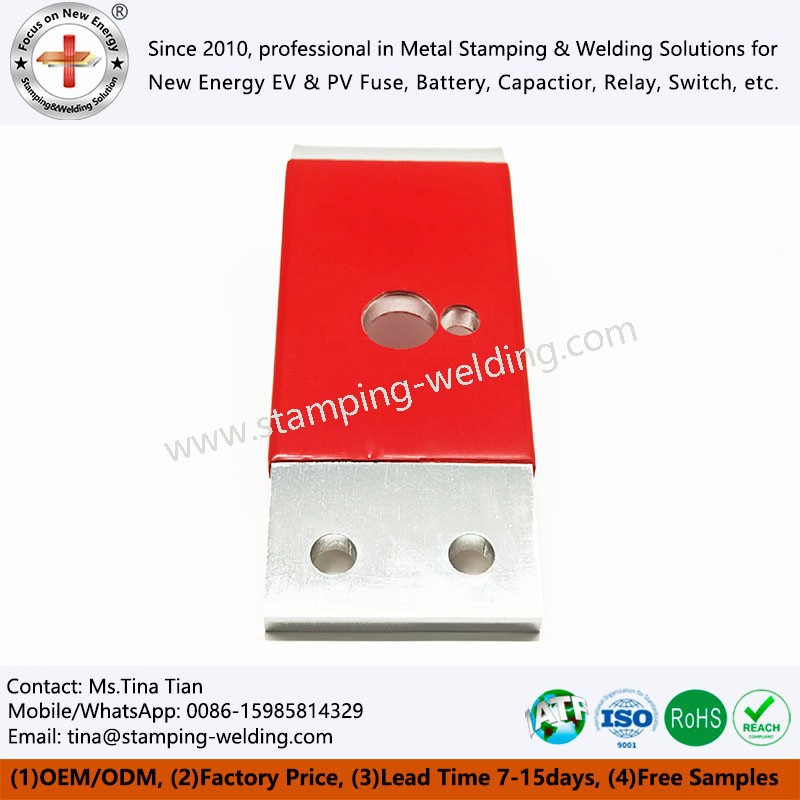

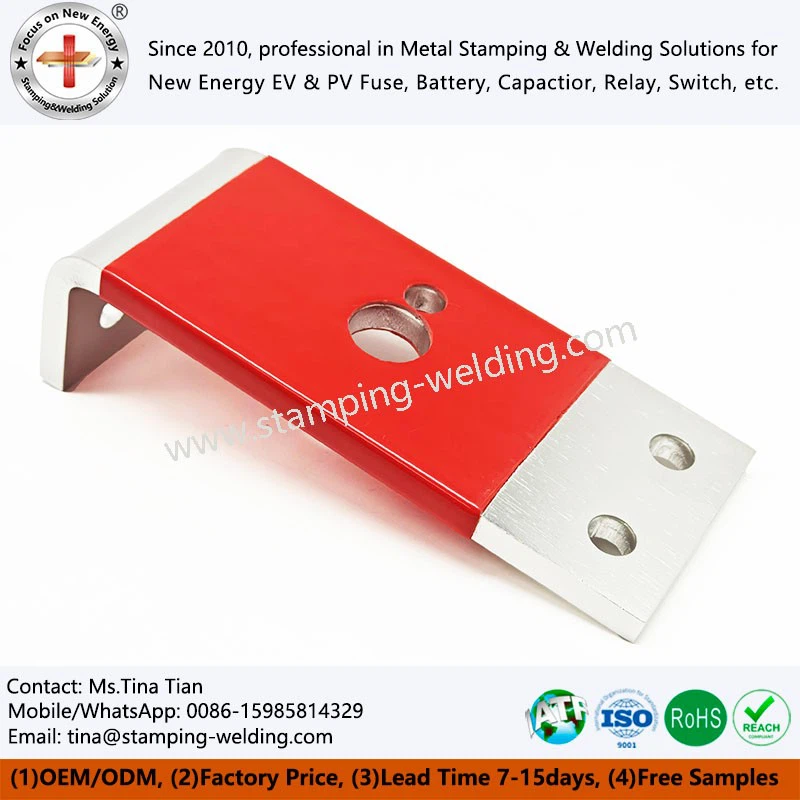

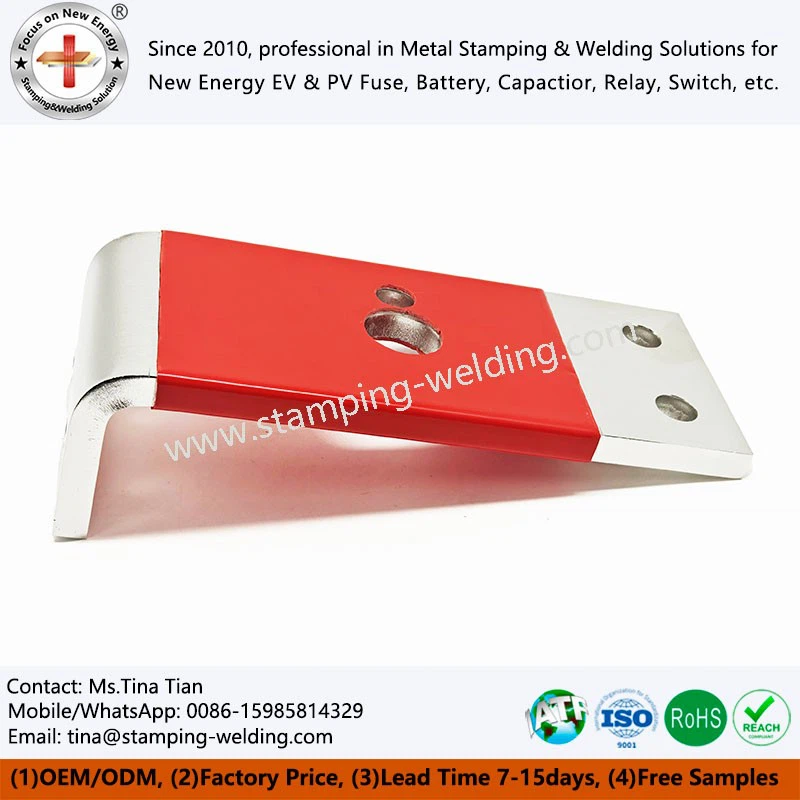

Nickel-Plated Insulated Bus Bar adopts an integrated rigid structure with hard texture and regular shape. It can be designed into straight, L-shaped, U-shaped and other shapes according to the project layout. Stable installation can be achieved without additional fixings. The tin-plated layer on the surface is uniform and dense, and the insulation layer is tightly covered without defects such as damage or wrinkles. Nickel-Plated Insulated Bus Bar takes into account conductive performance and safety protection requirements.
conductive characteristics
The base material has excellent electrical conductivity, and the tin plating layer can eliminate contact gaps and reduce contact resistance, ensuring smooth and stable current transmission without obvious energy loss. Insulated Copper Bus Bar is suitable for various transmission scenarios such as high and low voltage, large, medium and small currents, and avoids equipment performance degradation caused by local overheating.
Protective features
The tin plating layer can effectively isolate air, moisture and corrosive media, prevent the base material from oxidation and rust (for example, the copper base material produces patina, and the aluminum base material forms an aluminum oxide insulation layer), while inhibiting galvanic corrosion when dissimilar metals come into contact; the insulating layer can achieve all-round insulation protection, avoid leakage, arc and other safety hazards in high-voltage scenarios, and ensure the safety of equipment and people.
Adaptation characteristics
Insulating Coatings Busbar has complete specifications and can be flexibly customized. The thickness, width, length and shape can be accurately adjusted according to the size of engineering equipment and installation space. It can not only adapt to small and compact scenarios such as new energy vehicle battery packs and distribution boxes, but also meet the high-voltage and high-current transmission needs of large power equipment such as generator sets, transformers, and bus ducts. It has strong versatility and adaptability.
Product advantages
Anti-corrosion advantages: electrochemical protection mechanism of Busbar Insulation Paint
Insulation advantages: from "voltage resistance" to "system protection" for Epoxy Powder Coating Insulated Copper Busbar
Assembly advantages: reduce on-site labor and quality risks for Epoxy Spray Copper Battery Bus Bar
Long-term operation and maintenance advantages: traceable factory status
Production process
Copper strip pretreatment
Electrolytic polishing technology is used to remove the surface oxide layer to improve the Epoxy Powder Coated Busbar Insulation bonding force; edge chamfering is performed to prevent scratching of the insulation layer during installation.
01
Precision tin plating process
The temperature and current density of the electroplating bath are precisely controlled to ensure that the plating layer is dense and pore-free; post-processing uses dehydrogenation annealing to eliminate the internal stress of the plating layer and prevent Electric Vehicle Busbar Coating from falling off during subsequent use.
02
Insulating layer extrusion molding
Use three-layer co-extrusion technology to ensure the bonding strength of copper and the insulating layer; after extrusion, Powder Coating Cu Busbar is water-cooled to prevent shrinkage and deformation of the insulating layer.
03
Post-processing and testing
We establish a perfect Stress relief annealing: eliminates internal stress during processing and prevents cracking during bending; Salt spray test: simulates the marine environment to verify the corrosion resistance of the coating; Electrical performance testing: includes contact resistance, insulation resistance and voltage withstand testing to ensure that each product meets the IEC 60439 standard.
04

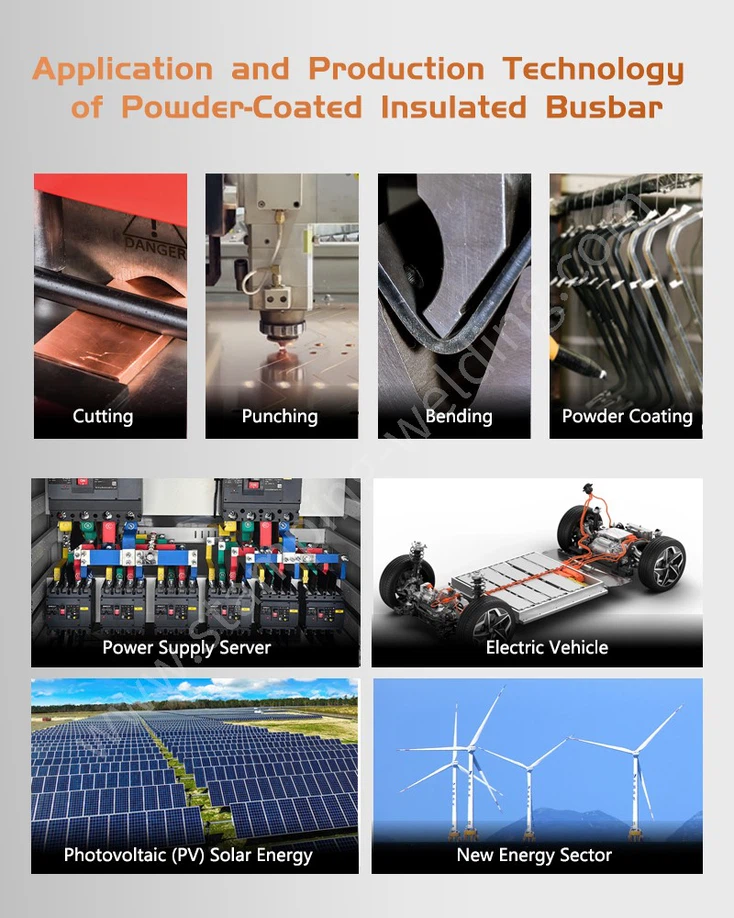

Typical application scenarios
Energy storage system and battery cabinet for Powder Coating Cu Busbar
Wind power converter and photovoltaic inverter for Busbar Coating Powders
Low-voltage distribution cabinet and control cabinet for Powder Coated copper bus bar
Electric vehicle charging facilities
contact us
In complex electrical systems, the reliability of connectors directly determines the safety margin of the entire machine-choosing our Tin-Plated Insulated Bus Bar means choosing a rigorously verified anti-corrosion and insulation protection system to help you avoid operation and maintenance risks caused by contact failure. Welcome to submit your technical specifications to obtain our customized engineering solutions.
