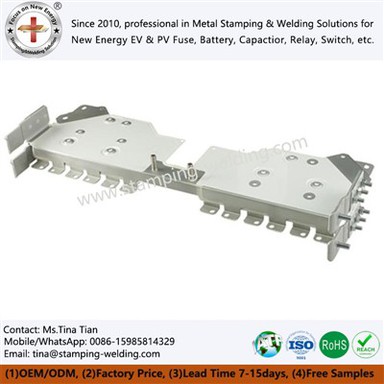

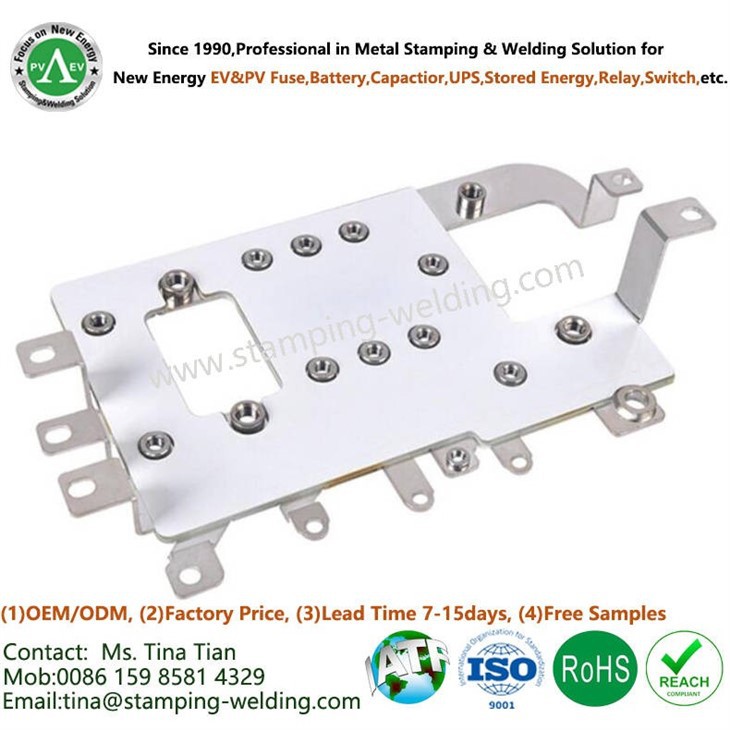

Laminated Bus Bars
Laminated busbars involve a sophisticated manufacturing process that includes layering, pressing, and heat treatment. They encompass both laminated copper busbars and compound busbars, ensuring efficient electrical connections and superior conductivity. Our company excels in customized designs, particularly for applications in EV, aerospace, and switchgear sectors. In the EV realm, Laminated Busbar For EV optimizes power distribution efficiency; in aerospace, compound copper busbars provide lightweight solutions and high conductivity; and in switchgear, our products guarantee stable and reliable electrical connections, demonstrating versatility and performance advantages across diverse industrial needs.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Laminated busbars consist of multiple layers of metal foils and insulation materials, manufactured through precise processes of layering, pressing, and heat treatment. This structure enhances electrical conductivity and heat dissipation, and offers excellent resistance to vibration and impact.
Products features
Multilayered Structure:
Built with multiple layers of metal foils and insulation materials, enhancing conductivity and heat dissipation.
Superior Conductivity:
Laminated copper busbars utilize copper foils to ensure superior electrical conductivity, suitable for high-current applications.
Lightweight Design:
Compound busbars, made from composite materials, benefit from lightweight advantages, particularly ideal for aerospace applications.
Customizable Designs:
Capable of customization based on specific customer requirements, including dimensions, shapes, and electrical performance adjustments.
product advantages
Lightweight Construction
In aerospace applications, compound copper busbars contribute to weight reduction, enhancing aircraft efficiency.
Efficient Power Distribution
Laminated Busbar for EV optimizes power transmission efficiency in electric vehicles, improving overall energy utilization.
Stability And Reliability
A laminated Busbar For Switch ensures stable electrical connections, minimizing the risk of system failures.
High Environmental Adaptability
Operates reliably across a wide range of temperatures and environmental conditions, suitable for demanding industrial environments.
Production Process
Material Preparation
Selecting high-quality copper foils or composite materials along with insulation materials to ensure optimal electrical and mechanical properties.
Layering and Pressing
Stacking multiple layers of metal foils and insulation materials according to design specifications, followed by high-pressure pressing to bond the layers tightly.
Heat Treatment
Controlling heating and cooling processes to enhance mechanical strength and conductivity, ensuring reliable inter-layer connections.
Assembly and Packaging
The assembly and packaging process of Laminated Busbars ensures precise assembly of each component and adequate protection to meet transportation and installation requirements.
The differences between Laminated Busbars and traditional Busbar
| Performance | Traditional Busbar | Laminated Busbar |
| Ease of Installation | Requires multiple installation steps, prone to errors | One-time installation to prevent errors |
| Overall Cost | Less compact structure, larger overall equipment size, higher overall cost | Compact structure, reduces overall equipment size, lowers overall cost |
| Inductance Performance | High stray inductance | Tight laminated structure, low stray inductance |
| Capacitance Performance | Capacitance design cannot be optimized | Capacitance can be optimized by changing laminated materials |
| Reliability | Exposed copper base, lifespan around three years | Fully encapsulated structure, lifespan of several decades |
contact us
We can customize products according to specific customer requirements, including shapes, sizes, and specific electrical connection configurations, to provide personalized solutions that meet the needs of different application scenarios.
