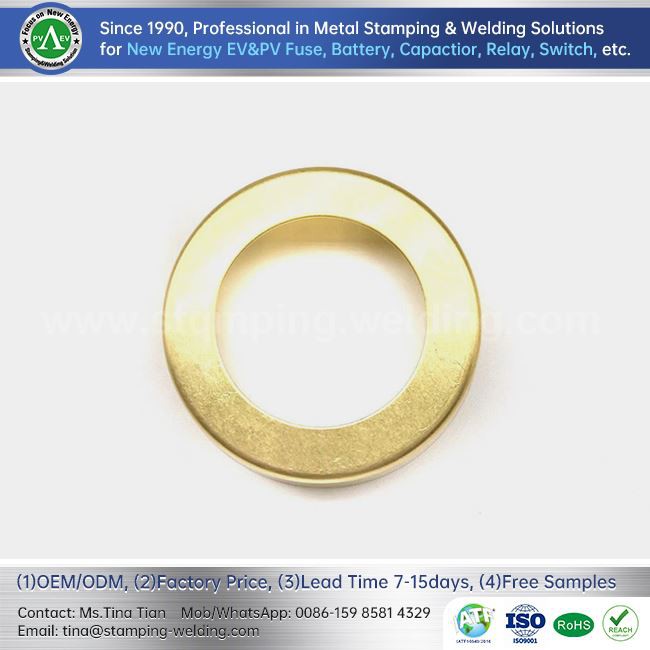

Brass Inner Cap For Bolt Connection Type Quick Fuse

PROCESSING TECHNOLOGY

——

• Stamping: The initial step in the machining process involves stamping. A brass sheet is fed into a stamping press, where a custom-designed die and tooling are used to cut and form the basic shape of the inner cap. Stamping ensures precise and consistent production of the cap's main body.
• Piercing: After stamping, piercing operations are performed to create holes and openings in the cap for bolt connection and terminal insertion. These holes allow for the secure attachment of the cap to the quick fuse body and the safe insertion of electrical terminals.
• Forming: In the forming stage, additional shaping processes are conducted to add specific features and details to the inner cap. This may include forming threads for bolt connection or creating grooves and recesses to accommodate other components.
• Welding: Depending on the design and requirements, welding techniques are employed to assemble the different parts of the inner cap. For example, welding may be used to attach a threaded metal insert for the bolt connection or to join separate components to form a complete assembly.
• Surface Treatment: Surface treatment processes are then applied to enhance the appearance and properties of the inner cap. This may involve polishing, plating, or coating the cap with a protective layer to improve corrosion resistance and aesthetics.
• Machining: Precision machining processes, such as CNC (Computer Numerical Control) machining, may be utilized for final adjustments and fine-tuning of the inner cap's dimensions and features to ensure accuracy and tight tolerances.
• Quality Control: Throughout the machining process, rigorous quality control measures are implemented to verify the dimensions, functionality, and performance of the Brass inner cap. Inspection and testing are conducted to ensure that the caps meet the required standards and specifications.
• Assembly: Once all individual components are machined and treated, the inner cap is assembled, and the necessary bolts, terminals, or other components are integrated into the design.
• Final Inspection and Packaging: The completed Brass inner cap undergoes a final inspection to ensure it meets all quality requirements. After passing inspection, the caps are carefully packaged and prepared for shipment.

PRODUCT APPLICATIONS

——

The application of the product is widespread and vital in numerous electrical systems, where its exceptional properties and versatile design contribute to safe and efficient fuse operation. This crucial component finds utility in various industries and applications that demand reliable overcurrent protection and electrical connectivity.

• Industrial Electrical Panels: The Brass inner cap is extensively employed in industrial electrical panels to protect sensitive equipment and machinery from overcurrent situations. Its robust design and corrosion resistance make it ideal for harsh industrial environments.
• Power Distribution Systems: Within power distribution systems, the product is essential in fuses used for short-circuit and overcurrent protection. Its precise design ensures secure connections and prevents potential hazards.
• Automotive and Transportation: The Brass inner cap is utilized in automotive and transportation applications, where quick fuses play a critical role in protecting electrical circuits in vehicles, trains, ships, and aircraft.
• Renewable Energy Systems: In renewable energy systems like solar and wind farms, the Brass inner cap serves to safeguard electrical components from overcurrent events, ensuring reliable energy generation and distribution.
• Consumer Electronics: The product is found in various consumer electronics such as computers, televisions, and home appliances. It ensures the safe operation of these devices by protecting them from electrical faults.
• Telecommunications Infrastructure: Within the telecommunications industry, the Brass inner cap is utilized in fuse assemblies to safeguard critical infrastructure from electrical anomalies and ensure uninterrupted communication services.
• Electrical Machinery and Equipment: In a diverse range of electrical machinery and equipment, the product is employed to provide reliable overcurrent protection, enhancing the safety and performance of these devices.
• Data Centers: The product is used in data centers to protect servers and networking equipment from electrical faults, safeguarding critical data and ensuring uninterrupted operation.
• Medical Equipment: In medical devices and equipment, the Brass inner cap offers an added layer of safety by protecting sensitive electronics from overcurrent situations, contributing to the reliability of medical procedures.
• Aerospace and Defense: The product finds application in aerospace and defense systems, where it ensures the reliable performance of electrical systems in challenging environments and critical operations.
• Marine and Offshore Applications: In marine and offshore industries, the product plays a crucial role in ensuring the safety and reliability of electrical systems in marine vessels and offshore installations.

SURFACE TREATMENT

——

• Electroplating: Electroplating is a widely used surface treatment method that involves depositing a thin layer of metal onto the brass surface through an electrochemical process. Common plating materials include nickel, tin, silver, and gold. Electroplating provides improved corrosion resistance, wear resistance, and aesthetics to the brass inner cap, extending its lifespan and enhancing its appearance.
• Tin Plating: Tin plating is specifically employed to enhance the brass inner cap's solderability. The thin tin layer facilitates soldering connections, ensuring secure attachment to other components within the fuse assembly or electrical circuit.
• Nickel Plating: Nickel plating offers excellent corrosion resistance, making it suitable for applications in harsh environments or where exposure to moisture and chemicals is a concern. It also provides an additional layer of protection against wear and abrasion.
• Silver Plating: Silver plating is chosen for its exceptional electrical conductivity, making it ideal for electrical components such as the product. It ensures efficient electrical contact and minimizes electrical resistance within the fuse assembly.
• Gold Plating: Gold plating is often used in high-end applications or in critical electrical connections that require stable, low-resistance contact points. Gold's resistance to oxidation ensures reliable performance and longevity.
• Passivation: Passivation is a surface treatment process that removes free iron and other contaminants from the brass surface, enhancing its resistance to corrosion and improving its overall durability.
• Chemical Coatings: Chemical coatings, such as clear lacquer or epoxy, can be applied to the Brass inner cap to provide a protective barrier against environmental factors, preventing oxidation and corrosion.
• Tin Spray: Tin spray coating involves applying a thin layer of molten tin to the brass surface. It offers corrosion resistance and improves solderability, making it suitable for applications in harsh environments.
• Powder Coating: Powder coating is a method where dry powder is electrostatically applied to the brass surface and then cured under heat, creating a durable and protective coating that enhances resistance to abrasion and chemicals.
• Anodizing: While typically associated with aluminum, anodizing can also be applied to brass to create a thin and protective oxide layer on the surface, increasing corrosion resistance.
