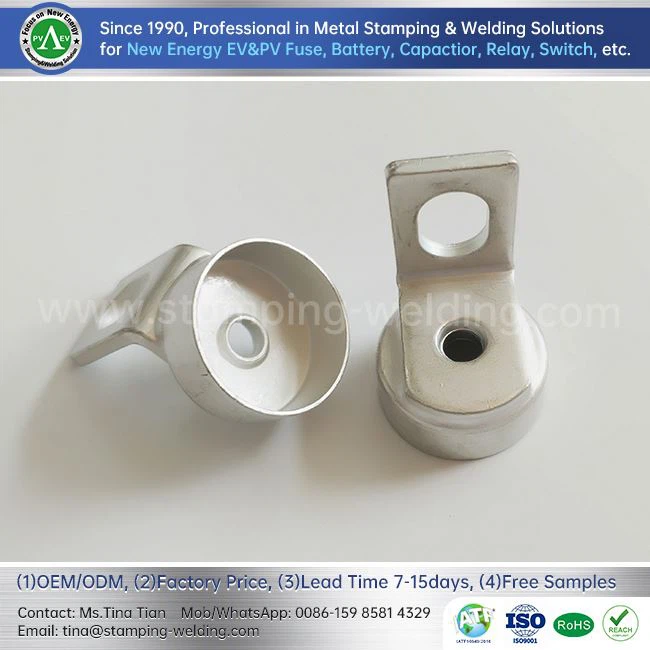

Copper Pipe End Stop For Solar Power Photovoltaic Inverter Fuse

A copper pipe end stop for a solar power photovoltaic inverter fuse is an essential component in solar power systems. It acts as a termination point for copper busbars or conductors within the inverter's fuse assembly. Typically made of high-quality copper, this end stop ensures a secure and reliable connection between the conductors and the fuse, optimizing electrical conductivity and preventing any loose or exposed ends. This crucial component contributes to the safe and efficient operation of photovoltaic inverters in solar energy systems, ensuring that electrical connections are well-maintained and protected against environmental factors, thereby enhancing system reliability and performance.





WORKING PRINCIPLE

——

The working principle of a copper pipe end stop for a solar power photovoltaic inverter fuse is relatively straightforward. It serves as an essential termination point for copper conductors within the fuse assembly. When electrical current flows through the system, the copper pipe end stop ensures a secure and low-resistance connection between the conductors and the fuse element. This secure connection prevents loose or exposed ends, minimizes electrical resistance, and facilitates the efficient transfer of electrical power. Maintaining a stable electrical interface, enhances the safety and performance of the photovoltaic inverter system, ensuring that the fuse can respond effectively to overcurrent conditions and protect the solar power installation from electrical faults.



APPLICATIONS

——



PROCESSING TECHNOLOGY
——

• Material Selection: Choose high-quality copper materials known for their excellent electrical conductivity and durability.
• Cutting and Shaping: Cut the copper material into the desired shape and size for the end stop. This may involve precision cutting techniques like sawing or machining.
• Hole Drilling: Create holes or openings in the copper end stop to accommodate the copper conductors, ensuring a secure fit.
• Surface Treatment: Apply surface treatments or coatings, such as plating or oxidation prevention, to enhance the end stop's corrosion resistance and electrical performance.
• Quality Control: Conduct quality control checks to verify the dimensions, tolerances, and electrical conductivity of the copper end stop, ensuring it meets precise specifications.
• Compatibility Checks: Ensure that the end stop is compatible with the specific photovoltaic inverter fuse assembly and copper conductors it will be used with.
• Assembly: Assemble the copper pipe end stop with the copper conductors and fuse element within the photovoltaic inverter fuse assembly, ensuring a secure and low-resistance connection.
• Testing: Subject the completed assembly to electrical testing to verify the conductivity and reliability of the connections.
• Environmental Resistance: Ensure that the copper end stop can withstand environmental factors such as temperature fluctuations and moisture without degrading its performance.
• Documentation and Traceability: Maintain comprehensive records of the manufacturing process, including batch or production run identifiers, to ensure product quality control and traceability.



OUR ADVANTAGES

——

• Direct Supply: Our China factory allows us to offer direct supply on an ex-works basis. This efficient supply chain management reduces delays and costs associated with intermediaries.
• Efficient Lead Time: Prioritizing prompt delivery, we maintain a lead time of 10-20 days for both samples and mass orders. This ensures our customers can meet their project timelines without unnecessary delays.
• Long-Term Cooperation: With a proven track record, we have established successful long-term partnerships with renowned brands such as EATON BUSSMANN, MERSEN, ABB, KEMET, BYD, and SINOFUSE. These collaborations demonstrate our ability to deliver cost-effective solutions and innovative technology.
• In-House Capabilities: Our company possesses an extensive range of in-house capabilities, including stamping die, stamping and drawing machines, in-die riveting, robot laser welding, and resistance tin/silver brazing. This diverse skill set enables us to provide a wide array of high-quality products tailored to our customers' needs.
• Stable Supply Chains: Our supply chains are primarily based in China, benefiting from a stable social environment. Collaborating with collectivized companies that have reliable upstream and downstream supply chains ensures operational stability. Additionally, our mature and stable metal futures market forecasting system enhances our ability to maintain a steady supply of materials.



PACKAGING METHOD

——

1/Put this product into PE bags with 800 pcs.
2/Sealed when meeting packing quantity requirement;
3/Put the bag-packed products in a standard carton box and seal with a total of 4000 pcs.
4/Attach the right tag on the carton and finally put it onto a pallet.
5/Last we wrap the pallet with film to protect it from moisture.



FAQ

——

Q1: DO YOU TEST ALL YOUR GOODS BEFORE DELIVERY?
A1: Yes, we have 100% test before delivery.



Q2: DO YOU ACCEPT OEM?

A2: Yes. All sizes can be customized. The logo can be made as per your request.



Q3: WHAT IS YOUR TERMS OF PAYMENT?
A3: Usually, we accept T/T, irrevocable L/C at sight, For regular orders, we prefer 30% in advance,70% against the copy of B/L.



Q4: CAN YOU PROVIDE SAMPLES?
A4: Yes, but the sample fee and freight will be paid by your company.



Q5:WHAT’S YOUR DELIVERY TIME?
A5: About 5-7 days for samples,15-20 days for mass production.



Q6: HOW TO ARRANGE DELIVERY?
A6:If you have a forwarder in China, we can send you the goods by your forwarder.
If you have no forwarder in China, we arrange the delivery directly from the factory by international express, by air, and by sea, it’s up to you.



Q7:HOW TO OBTAIN A QUOTE?

A7:Product prices fluctuate with fluctuations in raw materials and exchange rates. You can contact us with your requirements and we will provide you with the latest quotation as soon as possible.
