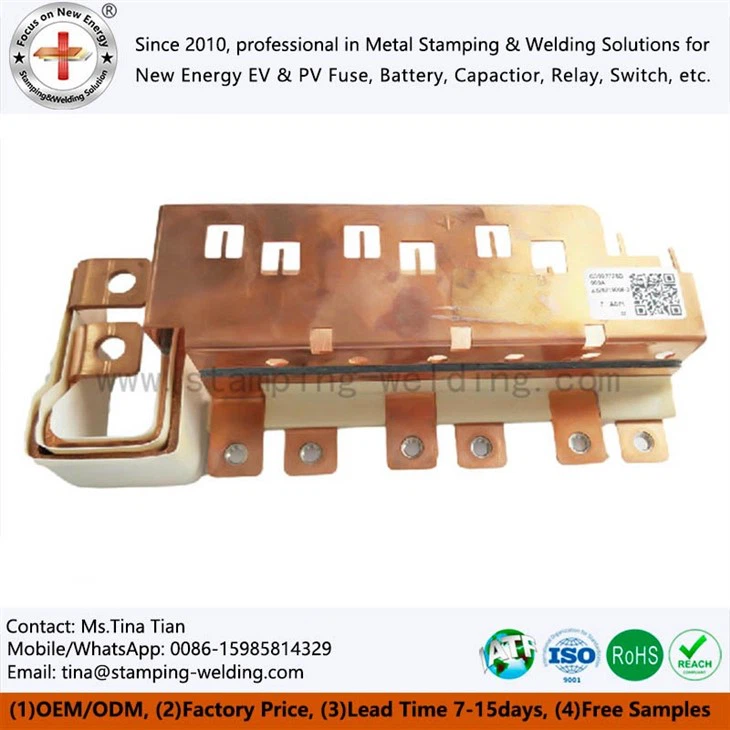

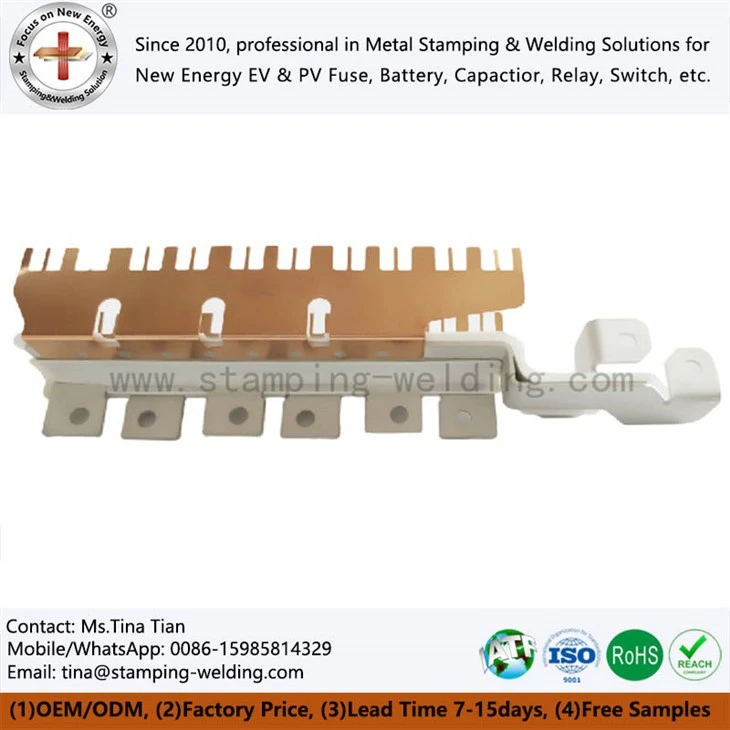

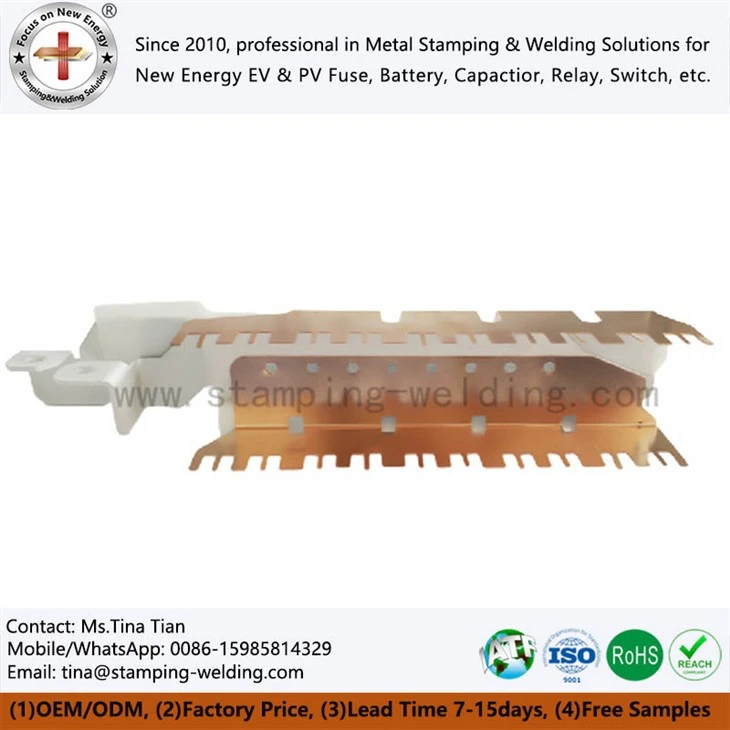

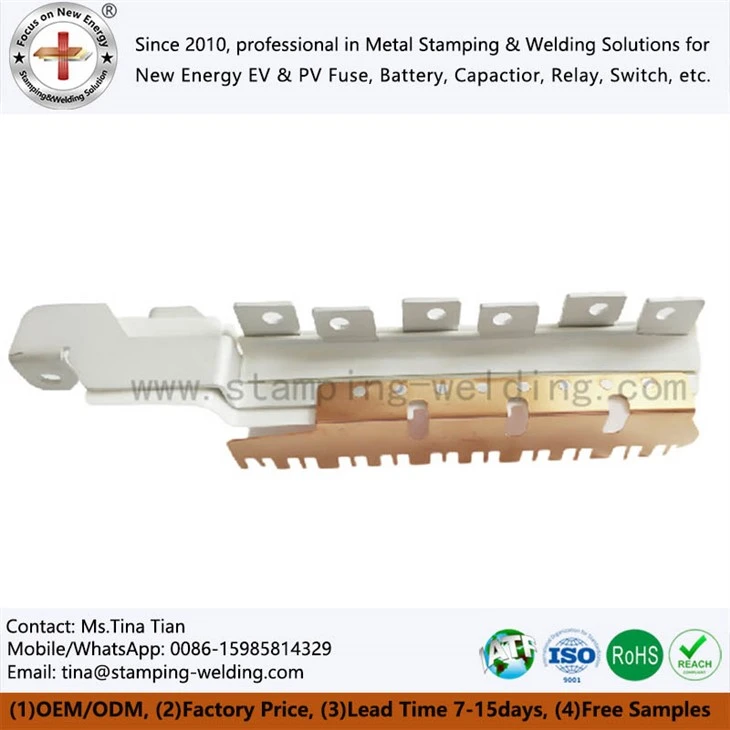

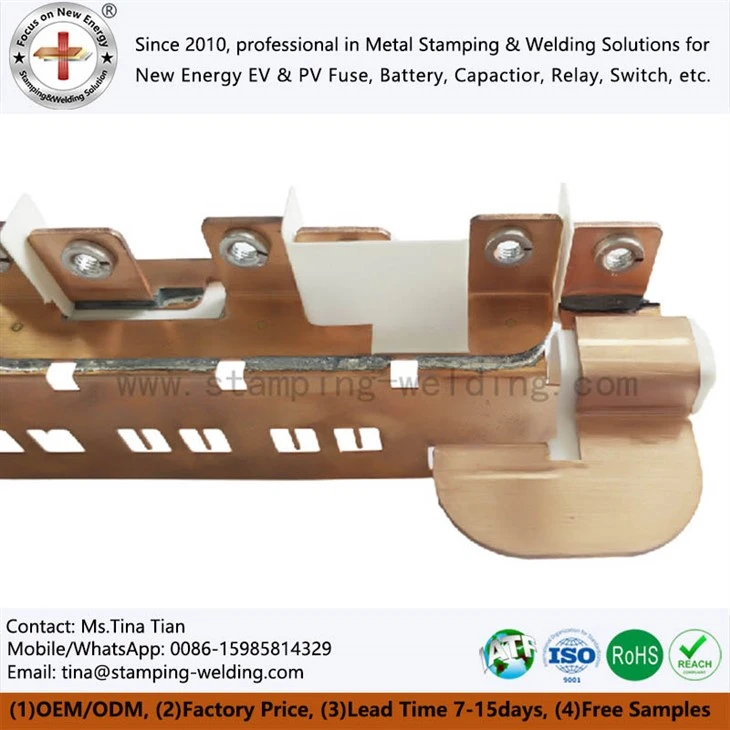

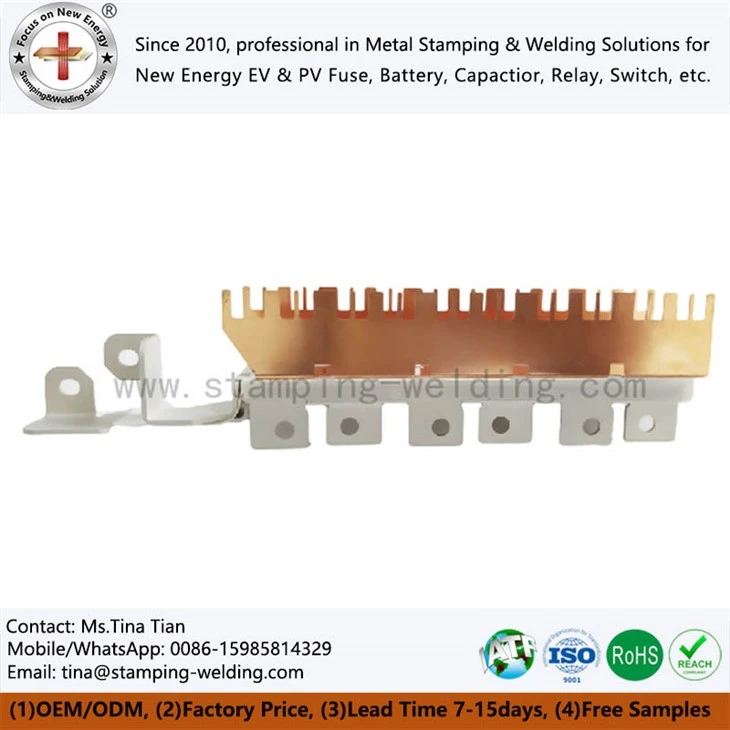

EV Motor Control Unit Film Capacitor Busbar
EV motor control unit film capacitor busbar uses PET (polyethylene terephthalate) insulating paper for new energy vehicle capacitor busbars. It aims to provide efficient and reliable insulation solutions for the electrical systems of new energy vehicles and ensure that the capacitor busbars can be used in complex complex environments. Works stably in the automotive operating environment.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Profile
EV motor control unit film capacitor busbar is used for new energy vehicle capacitor busbars and has excellent properties such as high insulation and heat resistance. The busbar has good electrical conductivity and strong mechanical properties. The combination of the two improves vehicle performance and safety.
Product features
Product features
Conductive properties
EV motor control unit film capacitor busbars are made of copper. Its electrical conductivity is as high as 5.96×10⁷S/m. High conductivity can ensure that electric energy can be transmitted quickly and efficiently during the charging and discharging process of the capacitor, reduce the loss of electric energy during the transmission process, and improve the charging and discharging efficiency of new energy vehicles.
Suitable current carrying capacity
Depending on the size design of the EV motor control unit film capacitor busbar, the current carrying capacity can be between 100A and 1000A. Different current carrying capacity designs can meet the capacitor applications with different power requirements of new energy vehicles, ensuring that the capacitor busbar operates stably within the normal operating range and will not cause overheating or damage due to overload.
High strength structure
EV motor control unit film capacitor busbar has high tensile strength, and the tensile strength can reach 200MPa. During the operation of new energy vehicles, they will be affected by mechanical forces such as vibration and impact. High tensile strength can ensure that the busbar will not break easily and maintain its structural integrity, thereby ensuring the normal operation of the capacitor.
good processing properties
EV motor control unit film capacitor busbars are easily processed into various shapes and sizes and can be customized according to the specific layout requirements of new energy vehicle electrical systems. Whether it is straight, curved or complex, it can be realized through appropriate processing technology, which facilitates installation and integration in the car.
quality and service
product specifications
| Dimensions | The EV motor control unit film capacitor busbar length can be customized according to customer needs, ranging from 100mm to 1000mm. Widths range from 10mm to 50mm, and thicknesses range from 1mm to 5mm. The size of the PET insulation paper matches the busbar and can completely cover the busbar surface to ensure the insulation effect. |
| Color Identification | To facilitate identification and installation in new energy vehicle electrical systems, EV motor control unit film capacitor busbar and PET insulation paper are available in different color marking options. For example, the busbar can be marked with red for the positive electrode and blue for the negative electrode; PET insulation paper can be marked with yellow to distinguish different voltage levels or functional areas. |
Application advantages
| Improve The Performance Of New Energy Vehicles | By improving the insulation performance and conductive performance of the capacitor busbar, electrical energy loss is reduced and charging and discharging efficiency is improved, thereby helping to improve the cruising range, acceleration performance and overall power performance of new energy vehicles. |
| Enhance Security | Reliable PET insulation paper can effectively prevent electrical faults in the capacitor busbar, such as short circuits, leakage, etc., reducing the safety risks of new energy vehicle electrical systems and ensuring the safety of drivers and passengers. |
| Adapt to the development needs of new energy vehicles | The product's thinness, high heat resistance, high flexibility and other characteristics meet the needs of new energy vehicles developing in the direction of lightweight, high efficiency and high integration, and can meet the requirements of continuous upgrading of new energy vehicle technology in the future. |
PET insulating paper is used in new energy vehicle capacitor busbars and has superior electrical and thermal properties; the busbar performance is good, and the combination of the two helps new energy vehicles operate efficiently and safely.
