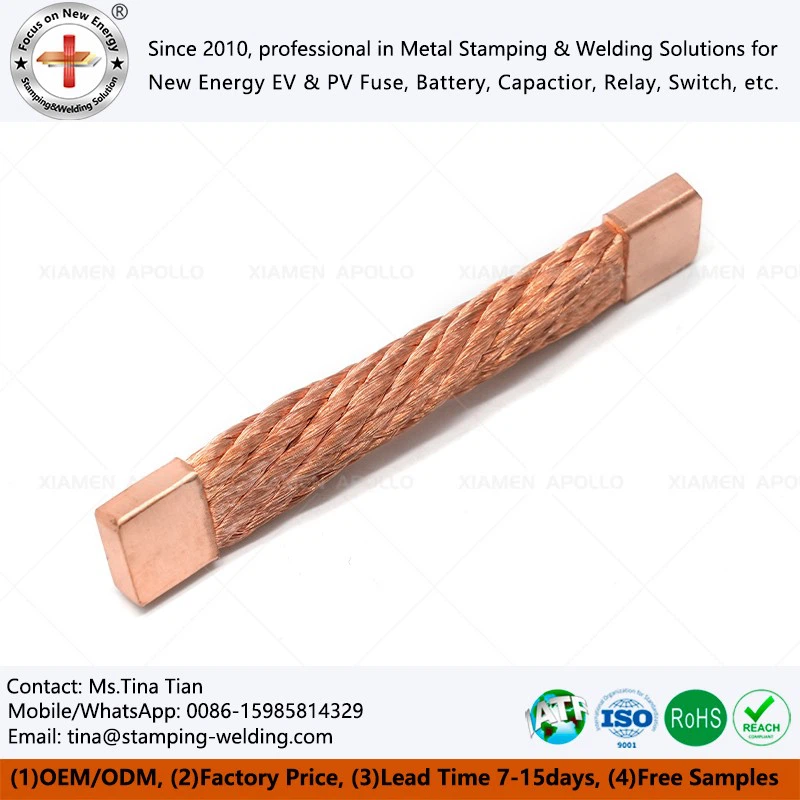

Flexible Copper Braided Electrical Connectors
In high-current transmission and complex connection scenarios, traditional rigid conductors are no longer sufficient to meet the comprehensive requirements of equipment for flexible compensation, vibration resistance, and thermal expansion adaptability. Flexible Copper Braided Electrical Connectors were developed in this context and are widely used in high-reliability fields such as new energy, power equipment, industrial automation, and rail transportation. This product uses high-purity copper wire as the core conductor and forms a multi-strand flexible conductive structure through a precision braiding process, balancing excellent conductivity and mechanical flexibility. It is an indispensable key connection component in modern electrical systems.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Flexible Copper Braided Electrical Connectors are essentially flexible conductor systems formed by interwoven multiple strands of fine copper wire. Their core structure includes:
Multiple strands of high-purity copper wire (bare copper or tin-plated copper)
High-density braided layer (enhancing flexibility and structural stability)
Crimped or welded terminals (copper tube terminals/stamped terminals)
Optional insulation layer (PVC, silicone, or heat-shrink tubing)
Compared to traditional copper busbars or rigid conductors, their biggest advantages are:
Strong multi-directional bending capability, adapting to complex installation spaces
High stress dispersion capability, reducing the risk of fatigue at connection points
Strong adaptability to dynamic environments, suitable for vibration or displacement scenarios
Core Performance Advantages
High Flexibility and Structural Compensation Capability
Through a precision braided structure, the Flat Copper Braided Flexible Connectors possess excellent bending performance, effectively absorbing stress changes caused by mechanical displacement, installation errors, and thermal expansion during equipment operation, avoiding breakage or poor contact problems caused by rigid connections.
Excellent Conductivity
Using high-conductivity copper ensures low resistance and low energy loss during current transmission, maintaining stable performance even under high current conditions for Flexible Copper Braided Electrical Connectors.
Vibration and Fatigue Resistance
The multi-strand braided structure disperses concentrated stress caused by mechanical vibration, significantly extending service life in long-term operating environments, especially suitable for high-vibration applications such as new energy vehicles and motor systems.
Strong Installation Adaptability
The Braided Copper Flexible Connectors can be customized to different equipment structures, including length, cross-sectional area, terminal type, and insulation method, achieving a high degree of compatibility with the system.
Detailed Showcase: Microscopic Representation of Engineering Aesthetics
Uniformity of Braided Texture
Under a 10x magnifying glass, high-quality braided wire exhibits a regular diamond-shaped grid, with tightly fitting copper wire intersections, free from warping, gaps, and broken wires. This microscopic density ensures uniform current distribution among the multiple copper strands, preventing localized overheating for Flexible Copper Braided Connectors.
Smoothness of Terminal Transition Zones
The transition zone between crimped or welded terminals and the braided tape should be free of steps and sharp edges, with a surface roughness Ra ≤ 1.6μm to prevent electric field concentration and corona discharge. The plating coverage is complete, with no exposed copper at the edges, ensuring long-term corrosion resistance for Flexible Copper Braid Connectors.
Fitness of Insulating Sleeves
The heat-shrinkable or injection-molded insulation layer fits tightly to the braided tape, free of bubbles and wrinkles, and does not crack or slip during bending tests. Color coding (yellow-green for ground, red for positive, black for negative, etc.) conforms to IEC 60446 standards for easy on-site identification for Flexible Braided Connectors.
Application Advantages and Scenario Extension: Handling All Working Conditions with Ease
New Energy and Energy Storage Systems
In high-frequency, high-pulsation current environments such as inverters and PCS warehouses, the multi-layer parallel design of the Flexible Copper Braided Connector Bus Bar effectively suppresses the proximity effect and skin effect generated by high-frequency harmonic currents, reducing temperature rise and improving system conversion efficiency.
Large Transformers and Distribution Cabinets
As the transition between the low-voltage side CU Flex Busbar and bushing, its superior seismic resistance ensures the safe operation of equipment in earthquake zones or heavy industrial plants.
Metallurgical and Electrochemical Heavy Industries
Facing high-temperature radiation, highly corrosive gases, and high-current erosion, the specially coated Flat braided shunt exhibits extremely strong anti-aging capabilities, significantly extending the equipment's maintenance cycle.
Contact us
We not only provide standardized Braided Copper Flexible Connector With Tin Ends, but also focus on overall engineering solutions from structural design and material selection to connection reliability verification. We welcome you to submit your application parameters to obtain customized technical support.
