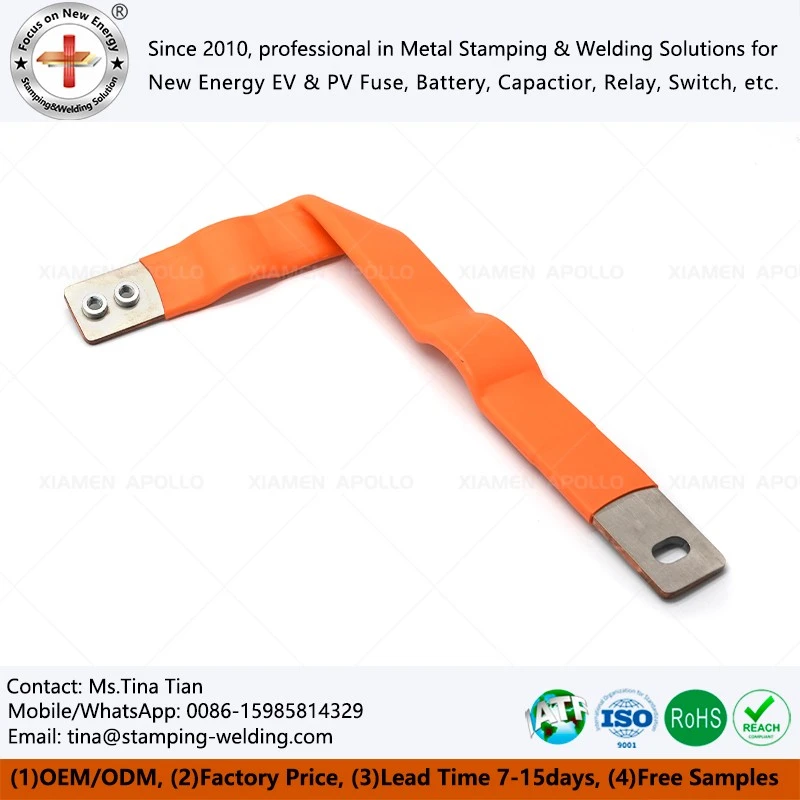

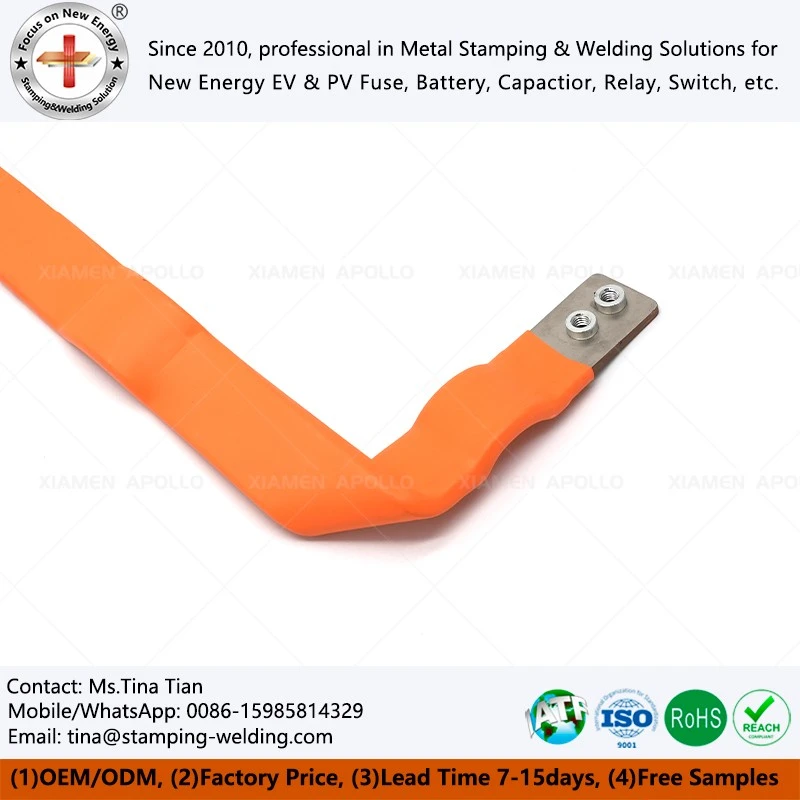

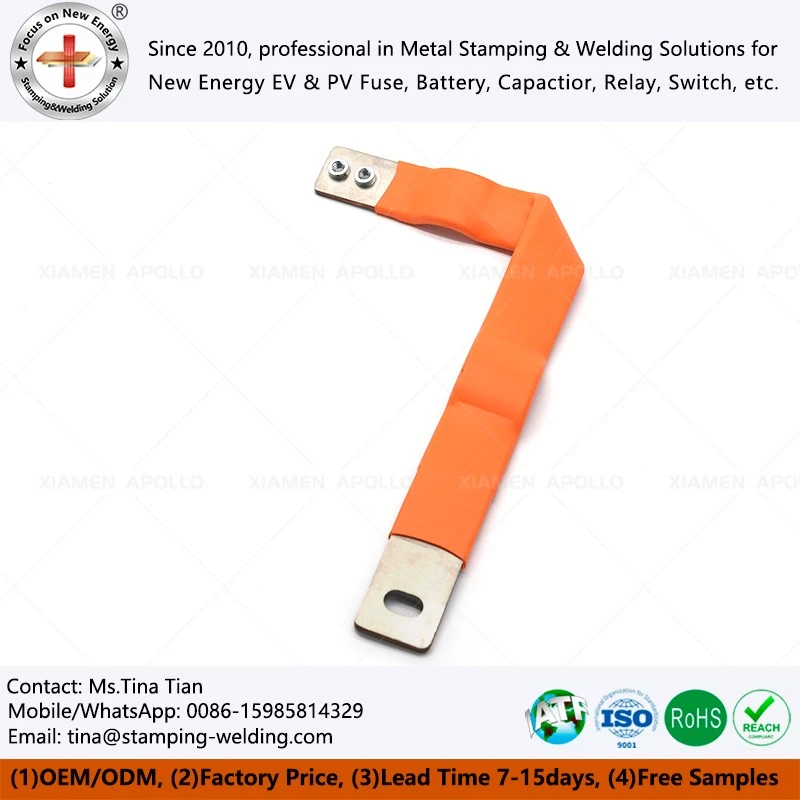

Copper Busbar With Tin Plated Heat Shrink Tubing
The Copper Busbar with Tin Plated Heat Shrink Tubing (also known as a sleeved rigid busbar) is a composite conductive component designed for high-reliability power connection systems. It features a highly conductive copper busbar core that is tin-plated and encased in high-performance heat-shrinkable insulation tubing, creating a dual-layer structure comprising a conductive core and a protective insulating layer. This product is primarily used in low-voltage and medium-to-high-voltage power distribution systems that demand high standards of safety, space efficiency, and long-term stability; it is particularly well-suited for new energy storage systems, industrial electrical control cabinets, power distribution modules, inverter systems, and high-density integrated electrical equipment. Compared to traditional bare copper busbars or simple spray-coated insulation methods, this design offers significant improvements in electrical conductivity, oxidation resistance, insulation safety, and environmental adaptability, making it a key component in the modular and high-reliability design of modern electrical systems.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
This Copper Busbar with Tin Plated Heat Shrink Tubing is not merely a combination of a copper busbar and a sleeve; rather, it features a structurally optimized design based on a systematic approach to electrical engineering. Its core structure comprises:
1. High-conductivity copper substrate
Utilizes high-purity electrolytic copper as the conductive core, ensuring a stable current transmission path, low power loss, and minimal heat accumulation.
2. Tin-plated protective layer
Features a uniform tin-based coating on the copper busbar surface, designed to:
Prevent copper oxidation and sulfidation
Enhance compatibility with soldering and terminal connections
Improve long-term electrical contact stability
Enhance resistance to humid and salt-spray environments
Manufacturing Advantages and Closed-Loop Precision Production Processes
| Micron-level edge rounding and precision chamfering | Following the cutting of Heat Shrinkable Busbar Insulating Tapes, edges undergo uniform rounding or chamfering to eliminate both visible and microscopic burrs and sharp corners. This not only enhances on-site installation safety but also eliminates the risk of "corona discharge" (tip discharge) in high-voltage electric fields, preventing the insulation sleeve from being punctured from within. |
| Tunnel-based 360° uniform heat-shrink technology | We move away from uneven manual heat-gun processing in favor of an adaptive infrared heating tunnel furnace. Copper Flat Square Busbars with PVC Heat-Shrinks pass through a zone of constant temperature and uniform conveyor speed. The insulation sleeve shrinks and levels perfectly-progressing in stages from the center outward-thereby completely expelling microscopic air pockets between layers and fundamentally preventing partial discharge failures caused by internal air bubbles. |
| High-integrity electroplating adhesion | Multiple stages of ultrasonic degreasing and chemical activation before plating ensure molecular-level bonding between the tin atoms and the copper substrate. Factory samples undergo rigorous thermal shock and bending tests, guaranteeing that the plating never curls, peels, or delaminates. |
Key Functions: Connection, Isolation, and Protection
Efficient High-Current Transmission
The core Copper Busbar with Heat Shrink Tube Insulation acts as a low-impedance conductor, carrying the system's primary energy flow and ensuring lossless power transmission from the source to the load.
Electrical Safety Isolation
The outer heat-shrink tubing effectively isolates live components from operators, metal enclosures, and other circuits, preventing electric shocks and short-circuit faults while enhancing the system's insulation coordination.
Environmental Protection Barrier
It creates a sealed micro-environment for the Heat Shrink Tube Copper Busbar Connection, blocking moisture, oxygen, salt spray, and industrial dust to prevent chemical or electrochemical corrosion of the metal material.
Mechanical Protection and Stress Buffering
The durable tubing protects the Heat Shrink Sleeve Insulated Copper Busbar from scratches during transport and installation while providing a cushioning effect that mitigates the impact of vibration on solder joints.
Detail Showcase: Visible Engineering Quality
Tin Coating Continuity
Verified via copper sulfate drop test; the coating shows no bare spots, pinholes, or discoloration.
01
Coating Thickness Uniformity
Thickness at critical areas is controlled between 3–12 μm, with consistent thickness across flat surfaces and edges.
02
Heat-Shrink Tubing Fit
Fits tightly against the tinned copper busbar surface after shrinking; no thinning due to stretching or whitening occurs at bends.
03
End-Seal Integrity
Smooth transition between the heat-shrink tubing end and the tinned section of the Heat Shrink Tube Insulation Copper Busbar; clean, crack-free cut edges.
04
Flame Retardancy and Temperature Resistance
Meets UL94 V-0 flame retardancy standards; suitable for an operating temperature range of -40°C to +125°C.
05
contact us
Featuring a triple-layer design-comprising a conductive core, a protective tin coating, and heat-shrink insulation-the Heat Shrink Sleeve Insulated Copper Busbar achieves an optimal balance of electrical performance, safety, and engineering compatibility, making it a key connectivity solution for modern, high-reliability power systems.
For projects prioritizing system stability, assembly efficiency, and long-term operational safety, this product significantly mitigates system risks at the structural level and enhances overall design consistency.
If you are currently selecting busbars for power systems or new energy projects, we can provide tailored optimization solutions based on your electrical architecture and engineering specifications to support highly reliable system integration designs.
