Aluminum Flexible Connection
Aluminum Flexible Connection is a high-performance flexible connection solution designed specifically for industrial pipeline and equipment connection systems. They are mainly used to compensate for pipeline system displacement and stress caused by thermal expansion and contraction, mechanical vibration, foundation settlement or installation errors.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Aluminum Flexible Connection
This product is made of high-strength aluminum alloy material, combined with a special bellows structure design and multi-layer processing. While ensuring excellent flexibility and sealing performance, it also provides excellent corrosion resistance, fatigue resistance and long-term reliability. It is widely used in B2B engineering scenarios in the fields of HVAC, industrial process pipelines, electric power, chemical industry, semiconductors and ships.

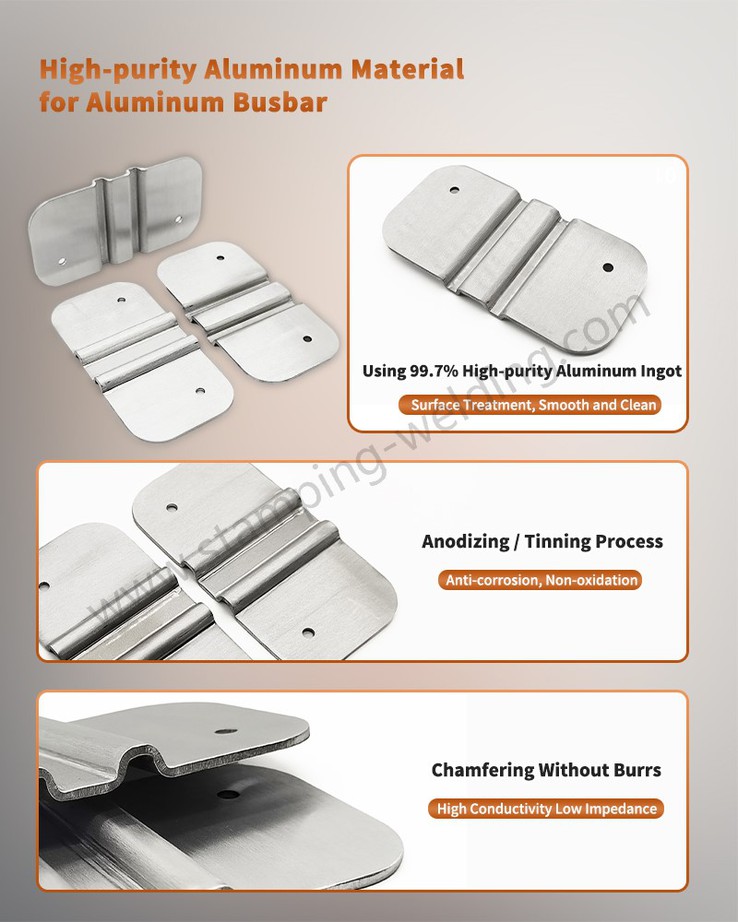

Material Advantage
Proprietary alloy formula
Using independently developed 6000 series aluminum alloy, by adding specific proportions of magnesium, silicon, manganese and other elements, the tensile strength and stress corrosion cracking resistance are significantly improved while maintaining low density. The material yield strength is approximately 40% higher than that of conventional aluminum materials.
Embedded anti-corrosion barrier
The inside of the bellows is treated with micro-arc oxidation to form a dense, insulating ceramic film layer with a controllable thickness of 10-25 microns, which fundamentally solves the problem of pitting corrosion of aluminum in chloride ions or alkaline environments. It is suitable for harsh environments such as coastal areas and power plants for the 6061 aluminum bus bar.
Material traceability
Each batch of raw materials has a complete metallurgical report and traceability code to ensure that the composition, grain size, and mechanical properties comply with international standards such as ASTM B221/EN 755, providing support for engineering compliance and safety audits for aluminium flat busbar for switchgear.
Manufacturing process and fine workmanship details
Excellent design must be achieved through extreme craftsmanship. Our manufacturing workshop adopts full-process CNC production to ensure that every connector delivered to customers reaches micron-level precision.
Five-axis linkage CNC machining
We use advanced five-axis machining centers to perform integrated cutting and shaping of aluminum rods. This process not only ensures the coaxiality of the connecting holes, but also processes complex, special-shaped curved surfaces to optimize stress distribution for Aluminium Busbar Manufacturer.
Surface anodizing treatment
Different from ordinary spray painting, we use a hard anodizing process. This not only gives the product surface a delicate matte texture, but also forms a protective layer on the surface that is second only in hardness to diamond, greatly improving wear resistance and scratch resistance for 6101 aluminum bus bar.
Zero-defect inspection system
Before each batch of products comes off the production line, they must pass full-size inspection with a three-dimensional coordinate measuring machine (CMM). We pay special attention to the accuracy and fit of the threads to ensure that they remain tightly connected without slipping or loosening after frequent disassembly and assembly.
Design advantages
Asymmetric corrugated profile patent
The corrugated unit adopts an asymmetric design with alternating dark and shallow waves. The deep waves bear the main axial expansion and contraction, and the shallow waves provide radial support, so that the product can avoid stress concentration when enduring multi-directional displacements, and the fatigue life is more than 2 times longer than that of traditional symmetrical corrugations.
Integrated port reinforcement structure
The local thickening+gradual transition design is adopted between the flange or threaded interface and the bellows to eliminate the welding heat-affected zone, make the stress distribution smoother, and greatly improve the bursting pressure and torsional load resistance of the joint for Aluminum Busbars.
Multi-layer composite structure options
Double-layer or three-layer structure versions can be provided according to media and pressure requirements. Stainless steel mesh reinforcement can be built in between the layers, or polyester coating isolation can be achieved to achieve higher working pressure and media compatibility for 6101 t61 aluminum bus bar.
Application fields and scenario-based advantages
HVAC and building services
Used in air-conditioning water systems of large commercial complexes and data centers to compensate for thermal displacement in long straight pipe sections without chloride ion precipitation. It is superior to the galvanic corrosion risk of stainless steel products in aluminum coil connections.
Industrial process pipelines
Suitable for soft water, compressed air, and vacuum pipelines in the chemical, pharmaceutical, and food and beverage industries. Aluminum materials have no heavy metal precipitation, comply with FDA contact standards, and are light in weight, reducing support costs.
Semiconductors and electronics
In high-purity gas and ultrapure water systems, aluminum busbars provide high-cleanliness level connections, and the inner wall can be subjected to EP-level electrolytic polishing to meet the requirements for particle and ion precipitation control for aluminum flat busbar.
Ship and marine engineering
Excellent salt spray corrosion resistance, used for ship engine exhaust and cooling water pipelines, shock and noise reduction, and adaptable to hull deformation for the Aluminum Busbar Electrical Power Connector.
contact us
If you are looking for reliable and customizable Aluminum Flexible Connection solutions for flue gas ducts, fan interfaces or corrosive media delivery systems, please contact our engineering team directly for selection suggestions and project-specific drawings.
