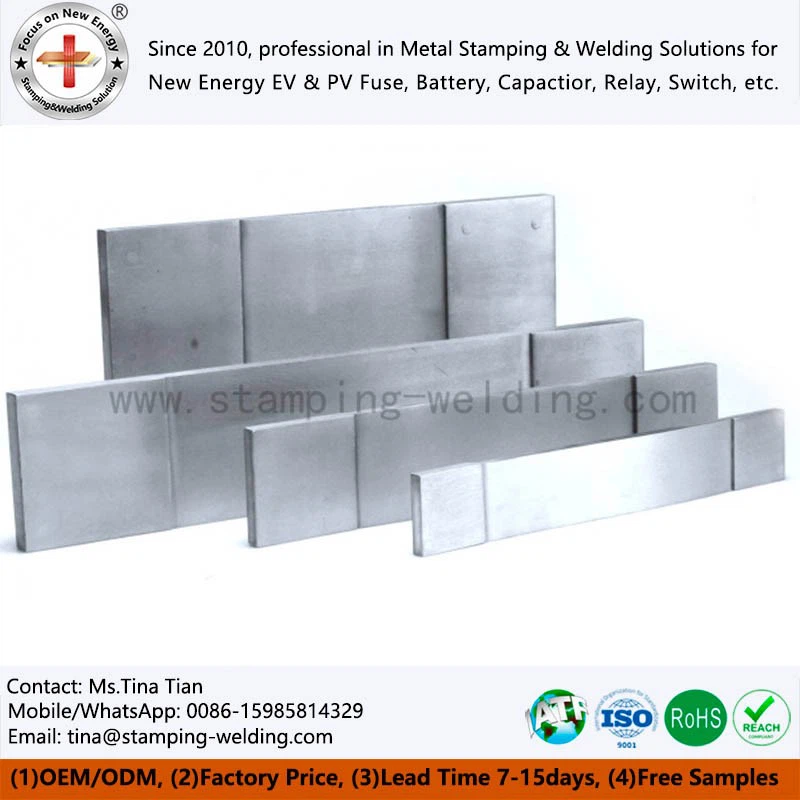

Aluminum Laminated Foil Busbar

Material preparation: First, use high-quality aluminum as raw material and cut it into corresponding lengths according to the specifications of the design drawings.

Casting: For large aluminum flexible busbars, they may be manufactured through a casting process, where the metal is melted and poured into a mold to cool and form.

Cooling and smoothing: The formed product needs to be cold processed to remove burrs and smooth them to ensure smooth contact surfaces and reduce resistance.

Welding connection: If multiple sections of busbars need to be combined, welding or crimping may be used to connect them to ensure electrical performance.

Surface treatment: Perform anti-corrosion treatment on the product, such as tin plating, spray painting, etc., to extend its service life.

Assembly inspection: After completing all processes, strict electrical performance and mechanical strength tests will be conducted to ensure compliance with standards.

Stamping: During the punching process, multiple welding holes and soft connections are formed on the aluminum flexible busbar.

Ultrasonic cleaning: Including oil removal cleaning, alkaline water cleaning, soaking cleaning and water cleaning to remove oil stains and surface reflections on flexible busbar.

Reduction treatment: Put the product into a heating furnace and heat it at a certain temperature for a period of time to enhance the

electrical conductivity and mechanical properties of the material.

Molecular diffusion welding pressure forming: Molecular diffusion welding technology is used for welding to ensure the firmness and electrical performance of the connection.
