PV Fuse Contact Tin Brazing

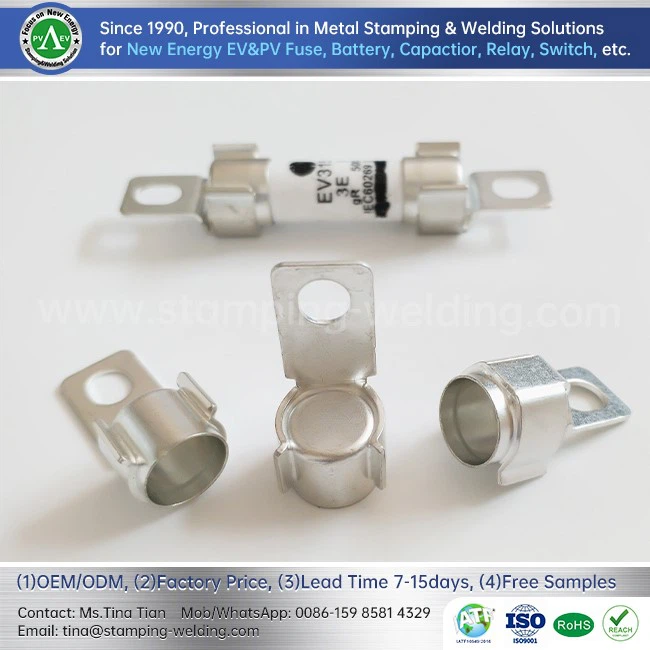

PV Fuse Contact Tin Brazing is a specialized soldering technique used in the manufacturing of photovoltaic (PV) solar system components, particularly in the production of fuses used for solar panel protection. This method involves bonding a tin-based solder to create secure and reliable electrical connections within the fuse contact. Tin brazing ensures low electrical resistance, preventing power losses in PV systems, and offers excellent corrosion resistance, crucial for outdoor solar installations. This technique enhances the overall efficiency and longevity of PV systems by ensuring consistent and durable electrical connections within fuses.

PRODUCT APPLICATIONS

——

PV Fuse Contact Tin Brazing finds application primarily in the field of photovoltaics (PV) and solar energy systems. Its key applications include:

• Solar Power Generation: The product is widely used in the manufacturing of fuses and components essential for the protection and reliability of solar panels and solar inverters.
• Solar Farms and Installations: It plays a crucial role in the electrical connections within solar arrays and systems deployed in solar farms, commercial solar installations, and residential rooftop solar panels.
• Renewable Energy: The technique ensures the integrity and safety of electrical connections in various renewable energy projects, including solar energy, where fuses are critical to protect against electrical faults.
• Electrical and Electronics Manufacturing: It may also find applications in other electrical and electronic manufacturing industries where tin brazing is used for creating reliable electrical contacts, although it is most prevalent in the solar industry.

The product is integral to the reliability and safety of electrical connections in solar power systems, contributing to the efficiency and longevity of renewable energy installations.

PROCESSING TECHNOLOGY
——

• Preparation: The components to be joined, typically copper or tin-plated copper contacts, are thoroughly cleaned and prepared to ensure proper adhesion of the tin solder.
• Tinning: The prepared components are coated with a layer of tin solder. This is often done through immersion in the molten tin or by applying a tin solder paste, ensuring a uniform layer on the contact surfaces.
• Assembly: The tinned components, such as the fuse contacts, are carefully positioned and aligned for the brazing process.
• Brazing: A precise amount of tin solder is applied to the joint area. Heat is then applied, either through induction heating, torch brazing, or furnace brazing, to melt the solder and create a strong, durable bond between the components.
• Cooling and Solidification: After brazing, the joint is allowed to cool and solidify, forming a secure electrical connection with excellent conductivity and corrosion resistance.

The product process creates reliable electrical connections within fuses and components used in solar energy systems, ensuring the safety and performance of photovoltaic installations.

PRODUCT INSPECTION

——

Product inspection is a crucial quality control process to ensure the reliability and safety of components used in photovoltaic (PV) solar systems. Key aspects of this inspection typically include:

• Pulling Force Testing: This assesses the strength of the brazed joint by subjecting it to controlled pulling forces, ensuring it can withstand mechanical stresses without failure.
• Visual Inspection: A visual examination is conducted to identify visible defects, irregularities in solder joints, incomplete brazing, or surface imperfections. It also verifies the cleanliness and integrity of the soldered area.
• Dimensional Checks: Precise measurements are taken to ensure the dimensions of the soldered components, including fuse contacts, align with specified tolerances, guaranteeing proper fit and function within PV systems.
• Electrical Conductivity Testing: Electrical tests are performed to assess the electrical conductivity of the tin-brazed joints, ensuring low-resistance connections and preventing power losses in the PV system.
• Corrosion Resistance Testing: Evaluation of the tin solder's corrosion resistance ensures its long-term durability, especially in outdoor PV installations exposed to moisture and environmental factors.
• Thermal Cycling Testing: Components may undergo thermal cycling tests, exposing them to temperature variations, to evaluate their ability to withstand environmental changes without compromising the soldered joints.
• Environmental Testing: Components may be subjected to environmental tests, such as humidity and temperature variations, to assess their performance under different conditions.
• Compliance with Standards: Inspection ensures that the tin-brazed components meet industry and safety standards relevant to PV system components.
