Analysis of the core foundation of high-voltage DC relays: Precision Metallized Ceramics technology

Against the backdrop of the rapid rise of the new energy vehicle and energy storage industries, high-voltage DC relays, as the core component of high-voltage circuit control, directly determine the safety and efficient operation of the entire system through their performance stability. Precision Metallized Ceramics has become the core shell material for high-voltage DC relays and is one of the most core applications of Metallized Ceramics technology in the new energy field, providing key support for the reliable operation of high-voltage DC relays.

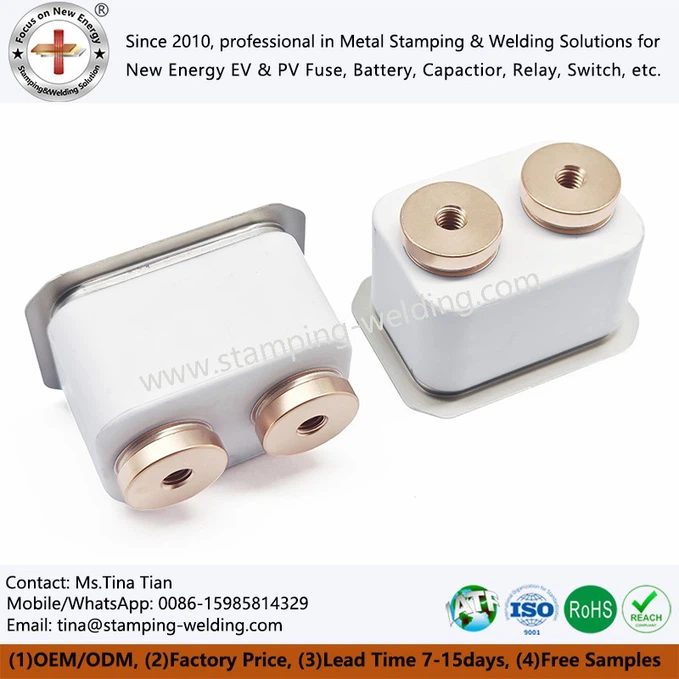

The precision metallized ceramic housing boasts a rigorous core structure, with each component working in concert to ensure its suitability for high-voltage applications. The white main body utilizes high-purity alumina ceramic, typically 95% or 99% alumina, leveraging its excellent insulation, high-strength mechanical properties, and high-temperature resistance to create a robust high-voltage insulation barrier – a core material advantage of Precision Metallized Alumina Ceramic Components. The top metal cylinder, serving as the contact lead-out terminal, is typically made of oxygen-free copper and securely welded to the ceramic holes using a specialized metallization process. It plays a crucial role in connecting the internal contacts to the external circuitry, ensuring stable power transmission. The bottom metal flange, located at the ceramic's bottom edge, is also metallized to allow for brazing with the relay's metal base, achieving complete hermetic sealing. This process fully embodies the core technological logic of Ceramic to Metal.

The choice of key processes directly determines the performance of precision metallized ceramics. Currently, these products mostly employ Mo-Mn (molybdenum-manganese method) or AMB (active metal brazing) processes. These two processes ensure extremely high bonding strength between the metal layer and the ceramic, typically greater than 150 MPa, effectively withstanding severe vibrations and high/low temperature cycles during vehicle operation. This guarantees the long-term reliability of the precision metallized ceramic shell and further promotes the iterative optimization of Alumina Metallized Ceramics technology, helping it better adapt to the development needs of the new energy industry.

Leveraging their superior performance, precision metallized ceramic components have been widely applied in multiple high-voltage core scenarios, becoming an indispensable key component in the new energy industry. In the field of new energy vehicles (EV/PHEV), they are widely used in core components such as battery pack main circuits, DC/DC converters, and on-board chargers; in the field of charging piles, they are adapted to the output control requirements of DC fast charging piles; and in the photovoltaic and energy storage fields, they are used as high-voltage DC switching switches, ensuring the stable operation of high-voltage circuits in various fields. This has also driven the continuous rise in market demand for metallized ceramic components.

In summary, precision metallized ceramics, with their excellent high-temperature resistance and high insulation properties, rigorous and efficient core structure, and reliable metallization processes such as Mo-Mn and AMB, have successfully become a core component of high-voltage DC relays. They not only perfectly meet the operational requirements of high-voltage circuits but also have been widely applied in multiple core scenarios such as new energy vehicles, charging piles, and photovoltaic energy storage. As an indispensable basic component, they continuously safeguard the safe and stable operation of high-voltage systems in various fields, providing solid material and technological support for the high-quality upgrading and development of the new energy industry.
