End cap and contact resistance welding process: Empowering new energy power protection

Industry background

With the rapid development of the power system and new energy industry, fuses, as the core component of circuit safety protection, directly affect the safety and stability of power system operation due to the performance and manufacturing process of their key components - End cap and contact. This importance is particularly prominent in emerging fields such as new energy vehicles and photovoltaic energy storage.

Welding joints for fuse are usually assembled from Contacts and end caps through precision welding or riveting processes, and are widely used in scenarios such as photovoltaic systems, energy storage battery protection, electric vehicles, and low-voltage distribution systems. They have become an indispensable core component in the field of power protection.

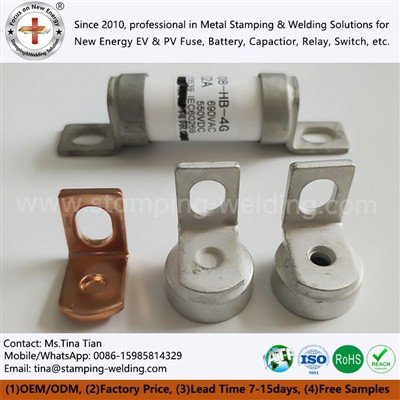

End cap and contact

From the perspective of core components, the accuracy of End cap and contact determines its system compatibility, and the materials and processes of each component must follow strict standards. Most contacts are made of highly conductive copper materials (such as T2 copper) and are usually treated with silver or tin plating to reduce contact resistance, enhance corrosion resistance, and ensure smooth current conduction.

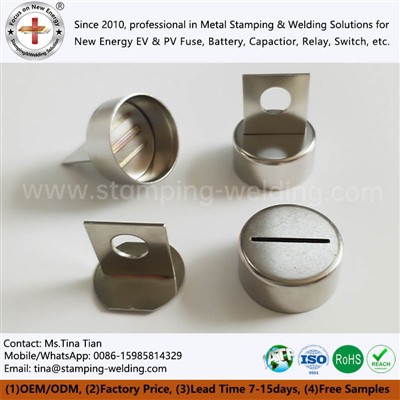

The end cover is a metal cover installed at both ends of a ceramic or composite fuse tube, also made mainly of copper, which balances sealing and conductivity. The connection between the contact and the end cap is achieved through laser welding, brazing, or precision riveting. The brazing process of the End cap and terminal can effectively improve the mechanical strength and conductivity stability of the connection, meeting the requirements of complex working conditions.

Resistance spot welding, as an efficient and reliable metal connection process, has become the core technology for producing Outer cap and contact, especially for fuse components in new energy vehicles. This process utilizes the resistance heat generated when current passes through the workpiece to locally melt the metal and achieve connection. In production, resistance spot welding is commonly used to connect components such as copper contacts, copper caps, and terminal contacts.

Compared with traditional welding processes, it has significant advantages such as high welding efficiency, stable quality, and easy automation. It can be combined with automated production lines to achieve intelligent production, greatly improving component production efficiency and Outer cap and terminal consistency, while meeting the reliability requirements of fuses under high temperature conditions.

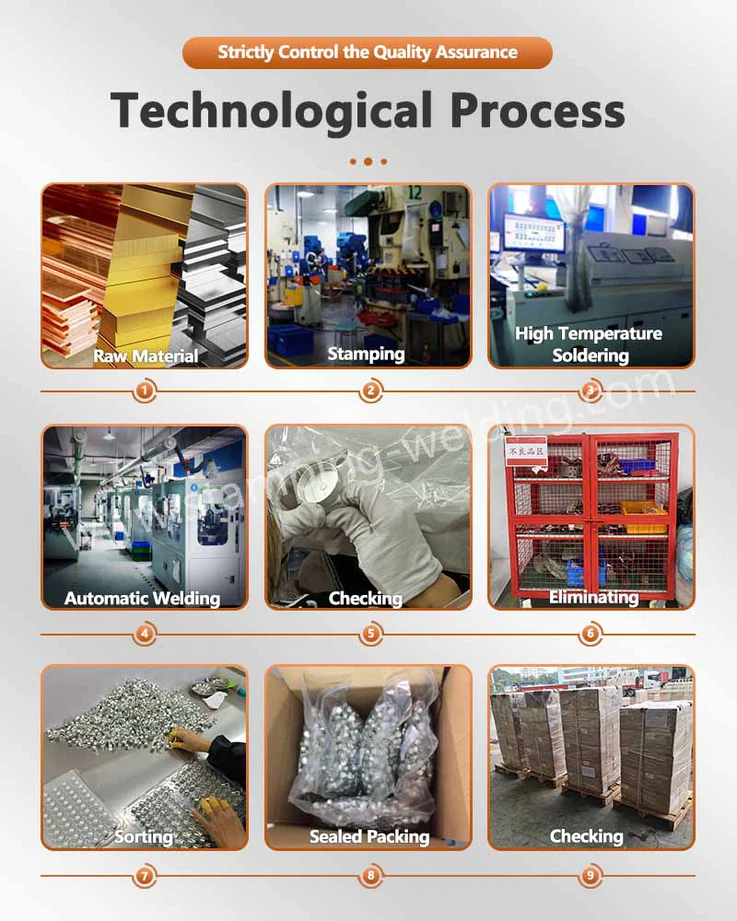

Technological process of End cap and contact

The widespread application of resistance spot welding in the production of fuses for new energy vehicles effectively ensures the reliability of the connection of Copper cap contact for electric vehicle fuse and other components, ensuring stable operation of the components in high voltage and high temperature environments, thereby providing a basic guarantee for the safe operation of new energy vehicles. The manufacturing process, welding strength, and coating quality of the fuse cap and contact as the "shell" and "interface" of the fuse, directly determine whether the power system can safely and quickly cut off the current in the event of a short circuit fault.

The continuous optimization of resistance spot welding technology will further promote the improvement of Copper cap contact for electric cars performance, helping them better adapt to the development needs of new energy and power protection fields. In the future, with the continuous breakthroughs in precision welding technology, contact cap components will evolve towards higher stability and stronger environmental adaptability.

Production technology and application of End cap and contact

If you need further advice on the selection of different welding processes for End cap and contact, or technical solutions for specific application scenarios, please feel free to contact us at any time. We will provide you with professional technical consultation and customized support.
