Overview of cu busbar industry knowledge

Copper busbars, often referred to as copper busbars, are key conductive materials used in power systems to transmit and distribute electrical energy. As a physical conductor made of pure copper or copper alloy, it plays an irreplaceable role in power generation, transmission and distribution, and industrial electrification. Its core function is to collect, distribute and transmit electrical energy and connect major electrical components such as generators, transformers and switchgear.

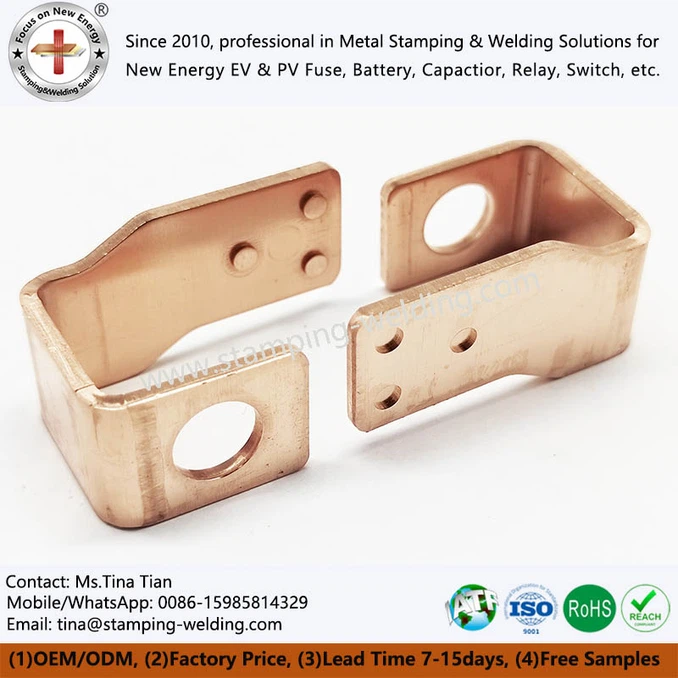

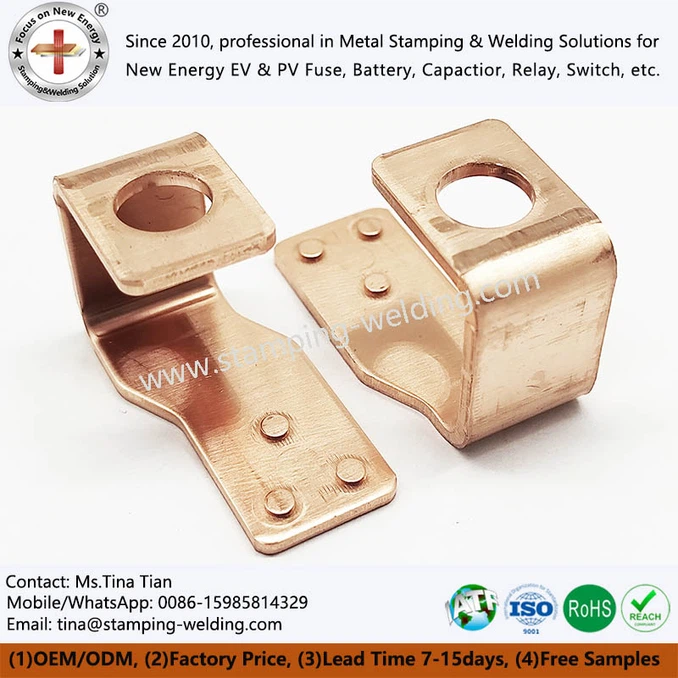

The Copper Solid Bus Bar is made of high-purity electric copper as the base material and has a number of outstanding engineering characteristics: Excellent conductivity: Compared with other conductive materials, copper busbars have higher conductivity and lower resistivity, which can carry large currents and significantly reduce power loss during transmission. This feature makes it ideal for use in Power BusBar systems. Safe and reliable: The copper busbar connection adopts a crimping or welding process, which can effectively prevent loosening and local heating, and improve the overall safety and operational stability of the circuit system. Compact structure: The copper busbar material has high density, which helps to reduce the size of the equipment, save installation space, and reduce environmental resource consumption. Strong corrosion resistance: The surface of copper busbars is usually treated with coatings to enhance their corrosion resistance and extend their service life.



























































Wide scope of application: Copper busbars are not only suitable for AC circuits, but also for DC applications. They are widely used in transformers, capacitors, inverters, switch cabinets, motors and other equipment. Remarkable energy-saving effect: The excellent conductive properties of copper busbars help reduce energy loss, reduce equipment operating costs, and improve the efficiency of power resource utilization.



Improve equipment performance: Copper busbars have high conductivity accuracy and good installation adaptability, which can enhance product reliability and stability while improving equipment output efficiency.



Enhanced safety protection: Copper busbar connections have high reliability and can effectively prevent safety accidents such as electrical fires caused by connection failures, ensuring the safety of people and property.













































































Copper busbars have a wide range of engineering applications, including: Power grid and power transmission and distribution system: As the main conductive material for transformers, inverters, capacitors and other equipment, copper busbars carry high voltage and strong current, improving power transmission and distribution efficiency. In actual projects, BusBar for ABB and other equipment are often equipped with special copper busbars. Power generation equipment: In generators and other equipment, copper busbars are used as high-strength conductive components to help improve power generation efficiency and operation quality.



High and low voltage switch cabinets: Copper busbars are used for conductive connections in switch cabinets, providing safe, sealed, compact and long-life circuit solutions. This scenario places high requirements on the mechanical and electrical performance of the High Voltage BusBar. Motor: Copper busbar is used as the internal lead material of the motor, which can improve transmission efficiency, reduce heat loss and operating noise.



Automotive electronics: Automotive electronics is an emerging application field of copper busbars. Its excellent conductivity and corrosion resistance can improve the stability and reliability of automotive electronic equipment.

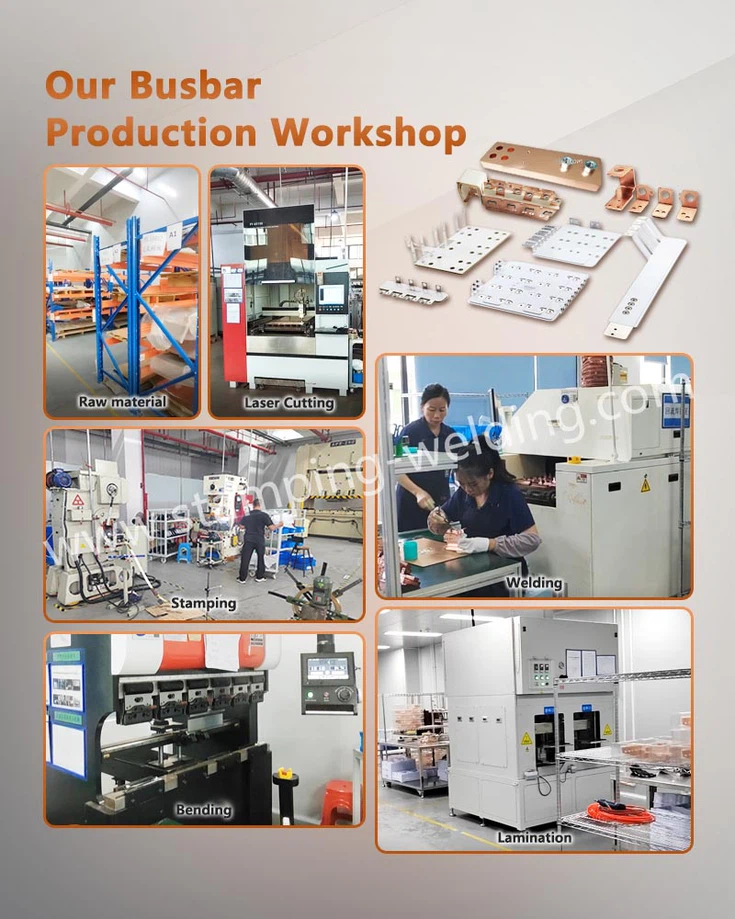

Our company focuses on the R&D and manufacturing of high-performance cu busbar, and its products cover the fields of power transmission, switchgear and new energy electrical systems. Relying on mature production technology and strict quality control system, we can provide copper busbar solutions that comply with a variety of electrical standards to meet the engineering needs of different voltage levels and application scenarios. Industry customers are welcome to inquire and cooperate to jointly promote the safety and energy efficiency of electrical systems.
