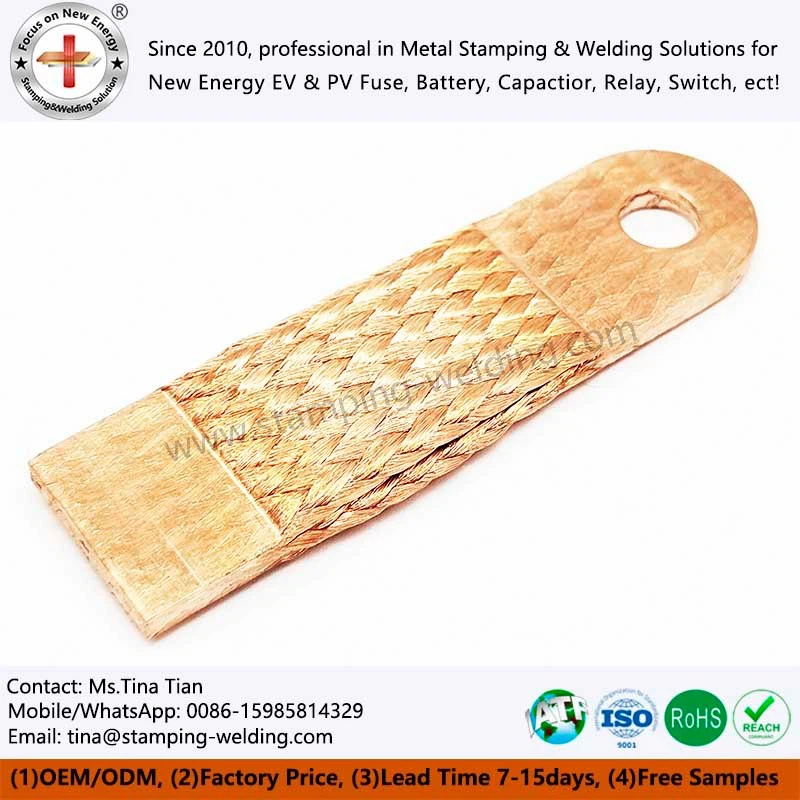

Flexible Copper Braided Busbar Connector
The Flexible copper braided busbar connector is a core flexible power transmission component designed for high current, high vibration, and complex installation conditions. It consists of multiple strands of fine copper wire interwoven into a tightly ordered mesh structure through precision weaving technology. Customized copper connection terminals are integrated at both ends, perfectly integrating the excellent conductivity of high-purity electrolytic copper with the mechanical flexibility of the weaving structure. It is the optimal alternative to traditional rigid copper bars under dynamic conditions.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Flexible copper braided busbar connector uses high-purity electrolytic copper as the core substrate, and achieves low power transmission loss through the high conductivity of copper itself. At the same time, it has basic corrosion resistance and can adapt to conventional industrial environments; For special scenarios such as humidity and corrosion, surface treatments such as tin plating and silver plating can be provided to further enhance oxidation and corrosion resistance, and expand application boundaries. Its unique weaving structure endows the product with excellent flexibility, enabling multi angle free bending and spatial adaptation. While ensuring efficient and stable power transmission, it completely solves the installation and operation pain points of rigid busbars in narrow space wiring.
Core features
Structure
The Flexible copper braided busbar connector is made up of multiple strands of thin copper wire interwoven in a specific weaving pattern, forming a tightly ordered mesh structure that supports multi angle bending and twisting.
Material
The substrate of the Copper braided flex connector is made of high-purity electrolytic copper, ensuring excellent conductivity and corrosion resistance; In special application scenarios, tin plating or silver plating surface treatment can be provided to further enhance oxidation resistance.
Core advantages
Copper braided flexible connectors are characterized by high flexibility, superior electrical performance, strong seismic resistance, easy installation, and long-term reliability, making them an ideal choice for mission-critical electrical systems where space constraints.
Application scenarios
new energy vehicle
The high current transmission path between battery pack, motor controller, and drive motor often has multiple angles of inflection. Flexible braided custom connectors can be flexibly adjusted according to the actual wiring path, improving the reliability of the vehicle's electrical system.
01
rail transit
There is often relative displacement between the traction inverter and the traction motor, which makes it difficult for the rigid busbar to adapt. Braided flexible busbars can effectively compensate for installation tolerances and dynamic displacements, reduce the risk of fatigue failure at connection points.
02
Industrial Automation
In equipment such as robots, CNC machines, and automated production lines, the layout of electrical components is complex and the wiring space is limited. Flexible braided copper busbar can flexibly bypass mechanical structures, achieve efficient power transmission, and simplify assembly processes.
03
electrical equipment
A high current transition connection is required between the low voltage side of the transformer and the distribution cabinet. This product can compensate for installation deviations between devices, while alleviating mechanical stress caused by thermal expansion.
04
Technical Features
The Flexible copper braided busbar connector has outstanding technical features, relying on high-purity electrolytic copper substrate and precision weaving structure to achieve efficient and low loss conductivity. The interweaving of multiple strands of fine copper wire endows the product with excellent flexibility and vibration resistance. Surface treatments such as tin plating and silver plating can be selected to enhance protection capabilities. The core indicators such as weaving density and resistance value are tested throughout the entire process to ensure that the product meets industrial electrical standards and is suitable for various harsh working conditions.
