Flexible Copper Busbars: A Smart Choice for Compact Electrical Systems

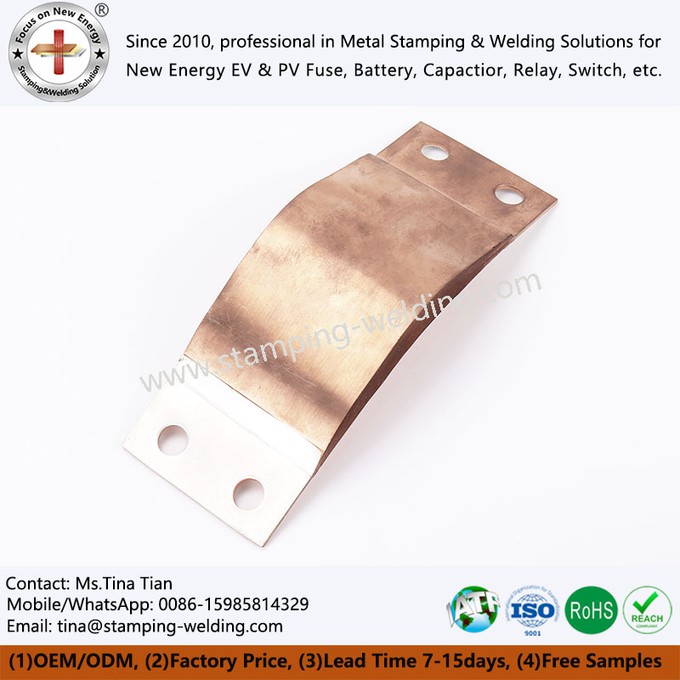

Compact electrical systems include miniaturized home appliances, EV battery packs, and portable electronics. These systems need power parts that fit small spaces. Flexible copper busbars offer an optimal engineering solution. They are constructed by laminating multiple thin copper foils with flexible insulation layers. Rigid busbars are hard to bend. But this busbar can twist and fold to fit tight layouts. Some heavy-duty compact industrial setups use laminated bus bar for industrial. Now, industries want smaller, more portable devices (like China's "Miniaturized Electrical Equipment Development Plan"). So this flexible busbar becomes a top pick. This article will explain why it is ideal for compact systems. It will cover core advantages and application fields. It will also introduce Xiamen APOLLO's quality products.





1. Bends Easily to Fit Tight Layouts​

Flexible bus bar can bend up to 180 degrees. It won't damage the conductor. Small EV battery packs have limited space. This busbar fits between battery cells. You don't need extra room for rigid busbar routing.​



2. Thin Structure Reduces Overall Volume​

Copper laminated foil busbar uses ultra-thin copper foils. The foils are 0.1-0.5mm thick. Its total thickness is 50-80% less than rigid busbars. This helps compact systems like portable medical devices. They stay small but can carry enough current.​



3. Adapts to Irregular Shapes​

Compact systems often have irregular internal spaces. Flexible bus bar can be customized. It fits curved or odd-shaped areas. Take mini home air conditioners as an example. This busbar follows the shape of internal components. It makes the most of space.





Flexible copper foil connector is lightweight and easy to handle. Workers don't need heavy tools to install it-unlike rigid busbars that require precise alignment. This speeds up assembly for high-volume compact devices (like smartphones).​



The flexible insulation layer of flexible copper foil connector has pre-applied adhesive. It can be directly attached to system components, avoiding the need for extra fasteners. This simplifies installation and saves space in tiny electrical boxes.​



Flexible copper foil connectors also allow for post-installation adjustments. If compact systems need minor layout changes, the busbar can be repositioned without replacing the entire component-saving time and cost.



​

1. Low Resistance Maintains Efficient Transmission​

This flexible copper busbar uses high-purity copper foils. It has low electrical resistance. So it loses very little power during transmission. This is critical for compact systems. Wearable electronics are an example. They rely on small batteries for long runtime.​



2. Resists Vibration and Fatigue​

Compact devices like portable speakers often face vibration. Automotive copper busbar is also used in small electronics. Its flexible structure absorbs vibration. It won't crack or loosen over time. This ensures stable power connection.​



3. Good Heat Dissipation Prevents Overheating​

Automotive copper busbar has thin copper foils. The foils spread heat quickly. High-current compact systems like mini EV chargers generate heat. This busbar prevents heat buildup. The system runs safely. You don't need extra cooling components.





This flexible copper busbar is widely used in space-saving electrical systems. In consumer electronics, it powers wireless earbuds and smartwatches. Its flexible design fits tiny casings. In EVs, automotive copper busbar connects battery modules in compact packs. It saves space for more battery cells. In industrial mini-controllers, laminated bus bar for industrial works with this flexible busbar. They meet precision operation needs. In medical devices like portable blood pressure monitors, it ensures stable power. It also keeps the device lightweight.





Xiamen APOLLO specializes in producing flexible copper busbar for compact electrical systems. It also offers laminated bus bar for industrial for heavy-duty needs. Our flexible busbars use 99.99% pure copper foils. This ensures low resistance and high flexibility. We use high-quality flexible insulation. It meets UL 94 V-0 flame-retardant standard. It stays durable after repeated bending. We offer diverse types. There is flexible bus bar for general compact devices. There is also copper laminated foil busbar for high-current scenarios.



We provide global delivery via sea, land, and air. Small batches for electronics arrive in 5-7 days. Large orders for EVs ship in 10-12 days. All products have ISO 9001, CE, and RoHS certifications. This guarantees safety and reliability. We also offer custom services. Do you need flexible copper foil connector with specific thickness, length, or color? Our team designs solutions to fit your compact system's needs. At Xiamen APOLLO, we deliver high-performance flexible copper busbars. We help you build smarter, smaller electrical systems.
