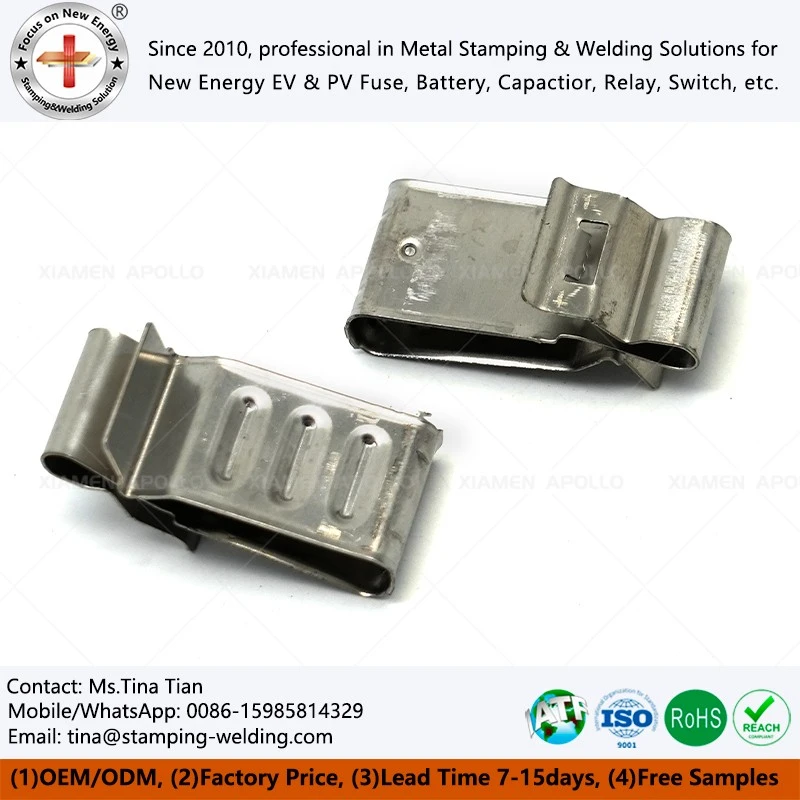

Cable Clamp Wire Clip For Solar Panel
The Cable Clamp Wire Clip for Solar Panel is a structural component designed specifically for securing and organizing cables within photovoltaic (PV) power generation systems. It is primarily used on solar module frames, mounting structures, and cable routing areas to ensure cables are securely fastened—preventing loosening, abrasion, and disarray. In the long-term outdoor operating environments typical of PV systems, cables are frequently exposed to complex factors such as UV radiation, temperature fluctuations, wind-induced vibration, and mechanical stress. This product is widely used in distributed and utility-scale PV power plants, rooftop PV systems, Building-Integrated Photovoltaics (BIPV), as well as electrical installations for energy storage and new energy applications.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Cable Clamp Wire Clip for Solar Panels is far more than simple fasteners; they are integral components for ensuring system-level electrical safety and engineering efficiency. Their core functions include:
Cable securing and routing: Ensuring DC/AC cables follow the designed path, preventing disarray and cross-interference.
Abrasion prevention: Minimizing direct friction between cables and metal mounting structures.
Vibration-resistant design: Maintaining a secure grip despite wind loads and equipment vibrations.
Enhanced system safety: Mitigating short-circuit risks caused by loose cables.
Improved installation efficiency: Rapid-installation designs that reduce on-site labor time.
Easier maintenance: Facilitating future inspections and cable replacements.
In photovoltaic systems, cable-related issues are often a source of hidden risks; therefore, high-quality cable clips are crucial for the system's long-term, reliable operation.
Manufacturing Process and Quality Control
Precision Injection Molding
High-precision injection molding equipment is used to control dimensional tolerances, ensuring consistency in the Solar Wire Clip's structure and assembly precision.
Optimized Mold Design
The mold utilizes a multi-point balanced runner design to ensure uniform structural density, preventing defects such as shrinkage and deformation.
Surface Treatment
Material modification or UV-resistant surface treatment is applied to enhance long-term outdoor aging resistance.
Detail Showcase: The Aesthetics of Cable Protection Engineering
| Flash-free flexible gasket interface | Observe the junction between the gasket and the stainless steel; the injection-molded edge is clean and crisp, with no adhesive overflow contaminating the metal locking mechanism. The gasket surface features a micro-textured anti-slip pattern that enhances friction without compromising the smoothness of the cable jacket. |
| Uniform metal spring-back curvature | Manually squeezing the clamp's spring-loaded latch yields linear, robust spring-back feedback. The base of the latch shows no stamping cracks and maintains uniform thickness, demonstrating the perfect combination of high-quality tooling and highly ductile stainless steel. |
| Perfect cable-friendly radii | All edges where the cable enters the clamping aperture-including the outermost opening-feature a visible, smooth radius transition. This ensures that even if the cable is pulled taut against the edge, the Solar Panel Cable Clip is not subjected to shearing forces. |
| Precise anti-slip serrations and markings | The inner side of the latch-which contacts the mounting rail-features fine, high-hardness serrations to ensure a secure, non-slip mechanical lock. Material specifications and batch numbers are laser-engraved on the surface, meeting the quality traceability requirements of large-scale power plants. |
Key Functions
Cable Securing and Routing Management. Securely fastens PV cables along designated paths on module frames or mounting rails, preventing displacement, tangling, or sagging caused by wind vibration, the cable's own weight, or external forces. Neat routing not only enhances the visual appeal of the power plant but also ensures clear cable identification for future operation and maintenance.
Insulation Protection. Uses smooth clamping surfaces to isolate cables from sharp frame edges, rail corners, and mounting holes. Over a 25-year operational lifespan, insulation aging and abrasion are primary causes of DC-side faults; these Solar Cable Clips effectively eliminate this risk.
Wind Vibration and Pull-out Resistance. In strong winds, continuous micro-vibrations in the PV array can cause repeated bending of cables at fixation points. By securely anchoring cables at multiple points, the Cable Clips For Solar Panel Mountings distribute and absorb vibration energy, preventing fatigue-induced breakage at any single location.
Protection Against Small Animals and Foreign Objects. Neatly secures cables along designated paths, preventing loose, sagging cables from becoming targets for small animals (such as rodents or snakes) to climb or gnaw on. Stainless PV Wire Clip also prevents the accumulation of foreign objects-such as construction debris or fallen leaves-between cables, which could otherwise create safety hazards.
contact us
Although Stainless Steel Solar PV Cable Clips are small structural components, they play a critical role in providing "unseen safety assurance" within photovoltaic systems. Their structural stability, material weather resistance, and installation efficiency directly impact the system's long-term operational reliability and maintenance costs. For procurement and EPC project teams, selecting supply chain partners with proven manufacturing capabilities and engineering expertise significantly reduces project lifecycle risks while enhancing overall delivery quality and consistency.
