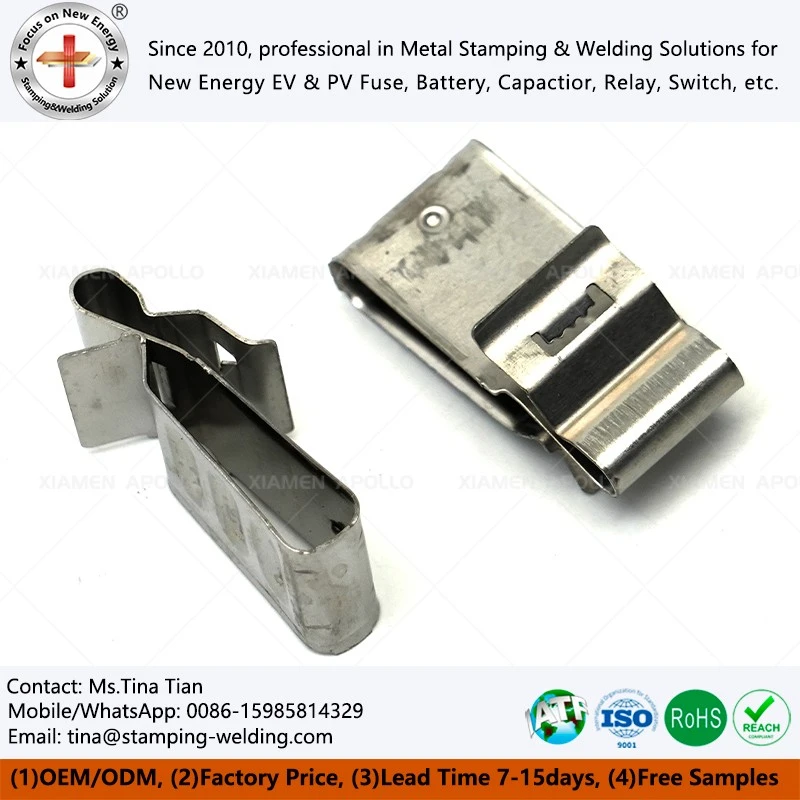

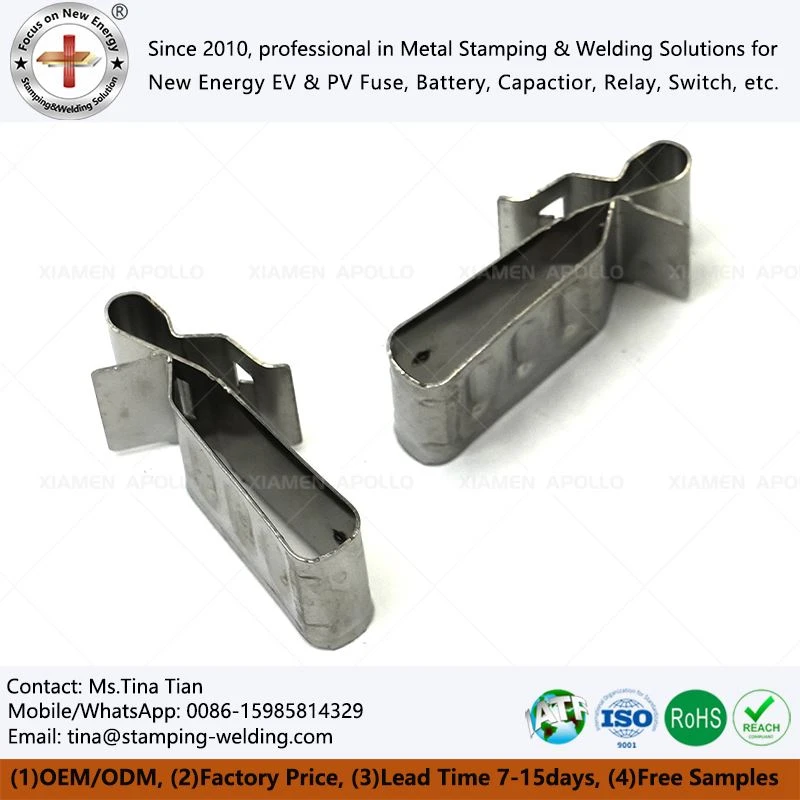

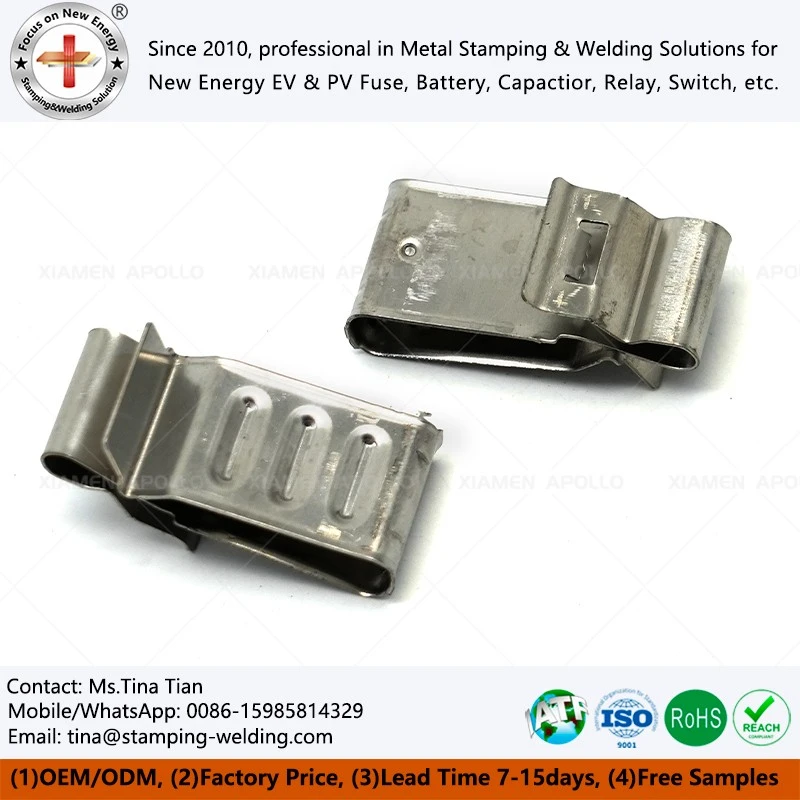

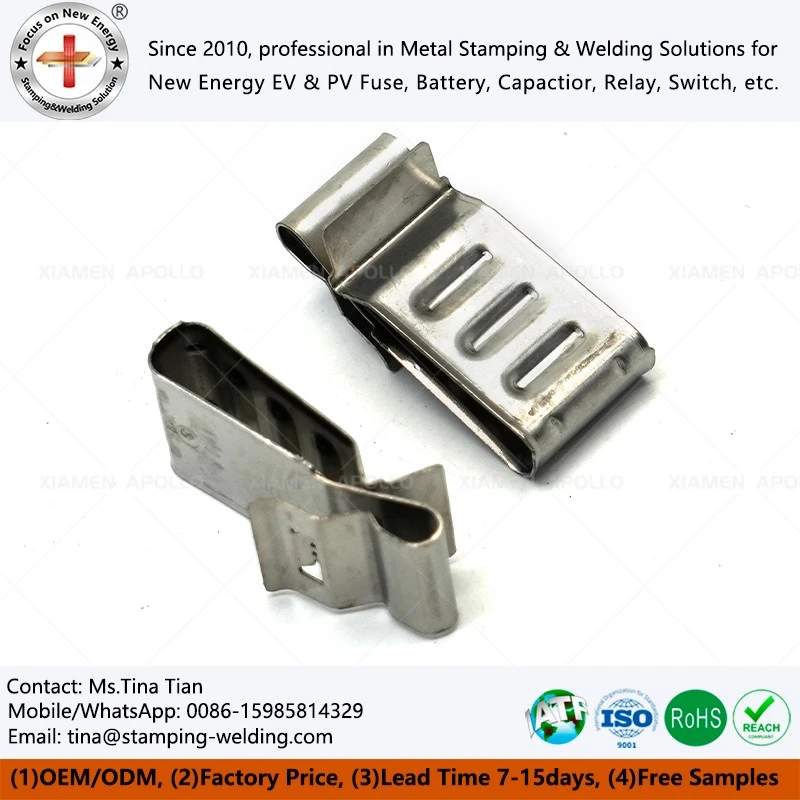

Solar Mounting Cable Clips For Panels
Solar mounting cable clips for panels are critical auxiliary installation components used in solar photovoltaic systems, primarily designed to secure, organize, and protect DC cables associated with PV module backsheets and mounting structures. Typically installed on module frames, aluminum mounting structures, or cable tray systems, these clips ensure orderly cable routing and provide mechanical protection. In large-scale ground-mounted power plants, distributed rooftop PV systems, and BIPV (Building-Integrated Photovoltaics) applications, reliable cable management is essential for the system's long-term operational safety. These clips serve not merely to fasten cables but also act as vital engineering components that prevent issues such as loosening, abrasion, UV-induced degradation, and damage caused by mechanical vibration.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Our Solar Mounting Cable Clips for Panels feature a modular, snap-fit design that allows for the rapid securing and releasing of cables in a single step. Compact and lightweight, the clips are compatible with a wide range of cable diameters and PV mounting systems; once installed, they create a secure "cable channel" that significantly reduces the risk of cable damage caused by wind vibration, thermal expansion and contraction, or accidental foot traffic. Unlike traditional cable ties or basic plastic clips, this solar mounting cable clip prioritizes reusability, weather resistance, and system compatibility, ensuring organized cable management throughout the entire lifecycle of the power plant with just a single installation.
Key Technical Features:
Superior UV and weather resistance; the material remains durable and does not become brittle or degrade even after prolonged exposure to intense sunlight, high heat, or extreme cold.
Resilient snap-fit design facilitates quick installation and easy adjustments during maintenance, simplifying O&M tasks.
Low-pressure clamping mechanism secures the cable reliably without damaging the outer insulation.
Versatile compatibility, suitable for single-core and multi-core PV cables as well as various mounting rail profiles.
Detail Showcase: Industrial-Grade Craftsmanship at the Micro Scale
Inverted Anti-Detachment Tab
The tab that locks into the rail features an inverted hook design; once engaged, the weight of the cable causes the PV module cable clip for solar panel mounting installation to grip increasingly tighter, eliminating the risk of the clamp slipping out of the rail.
Release Hole and Inspection Window
A small release hole on the side of the clamping area not only reduces the Universal Stainless Steel Frame Clips for Solar Cable's weight but also allows workers to easily open the clamp using a simple tool-enabling "reversible installation" in the event of incorrect placement or the need for adjustments.
Non-Slip Finger-Grip Texture
The external contact area features an ergonomic, non-slip knurled texture that enhances friction for gloved workers, preventing tools or fingers from slipping during installation.
Clear Specification Markings
Mold-engraved markings on the product surface indicate the compatible wire gauge range and material flow direction, enabling installers to quickly identify and select the correct part without consulting the packaging, thereby eliminating the risk of installation errors.
Key Functions: Engineering Value Beyond Simple Cable Management
Physical Securing
Stainless PV Wire Clip prevents cables from sagging under their own weight and contacting the roof surface (crucial for color steel tile roofs to avoid abrasion, punctures, and leaks);
01
Vibration and Abrasion Protection
Eliminates the risk of fatigue-induced breakage caused by cables flapping against the mounting structure in the wind;
02
Electrical Isolation
Ensures cables remain clear of sharp module frame edges and mounting bolts, preventing insulation damage;
03
Thermal Management Support
Elevates cables to facilitate airflow and heat dissipation, preventing excessive temperature rise caused by direct contact with heat-absorbing surfaces;
04
Organized Routing
Solar PV Cable Clips create neat, orderly cable paths, enhancing the overall visual appeal and professional quality of the power plant.
05
Production Process and Manufacturing Advantages
| Precision Injection Molding | We utilize high-precision injection molding machines and wear-resistant molds to ensure dimensional consistency and a flawless surface finish free of flash. |
| Material Modification and Pre-treatment | Raw materials undergo drying, compounding, and UV stabilization to ensure consistent performance across batches. |
| Surface Enhancement Processes | Plasma treatment or specialized coating processes are applied to improve the material's aging resistance and self-cleaning capabilities. |
| Assembly and Testing | Automated assembly lines integrate high-frequency welding or riveting for metal inserts to ensure structural integrity; every batch undergoes tensile testing, torsion testing, accelerated UV aging, and simulated wind-induced vibration testing, maintaining a pass rate exceeding 99.7%. |
| Flexible Production | We support rapid mold changes and small-batch customization-including special color coding, corporate logo engraving, and optimized packaging-to meet the specific requirements of various project timelines. |
contact us
We provide both standardized and customized Solar Wire Cable Clip Sus304 solutions for photovoltaic projects worldwide. We offer comprehensive collaboration-spanning material selection, structural design, and mass production-tailored to specific project requirements. This ensures reliable, stable system-level performance under challenging climatic conditions and long-term operation, ultimately helping customers achieve greater efficiency in project delivery and operational reliability.
