Solar PV Earthing Lug
The Solar PV Earthing Lug is a critical metal component that establishes an electrical connection between the PV mounting system and the conductive grounding system. It is widely used in ground-mounted PV power plants, distributed rooftop PV systems, BIPV (Building-Integrated Photovoltaics) structures, and PV systems paired with energy storage. Its primary function is to create a stable, low-impedance electrical path that reliably connects PV modules, aluminum alloy mounting structures, and rail systems to the grounding wire. This ensures the safe dissipation of electrical surges—whether caused by lightning strikes, leakage currents, or abnormal electrical conditions—thereby safeguarding personnel and ensuring the stable operation of the system.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Solar PV earthing lugs typically serve as standard grounding connectors for mounting rails or aluminum profile systems. They establish a reliable electrical connection with the rail-via mechanical locking or conductive piercing-and create a continuous grounding circuit with the grounding conductor.
We offer various configurations to suit different PV mounting systems:

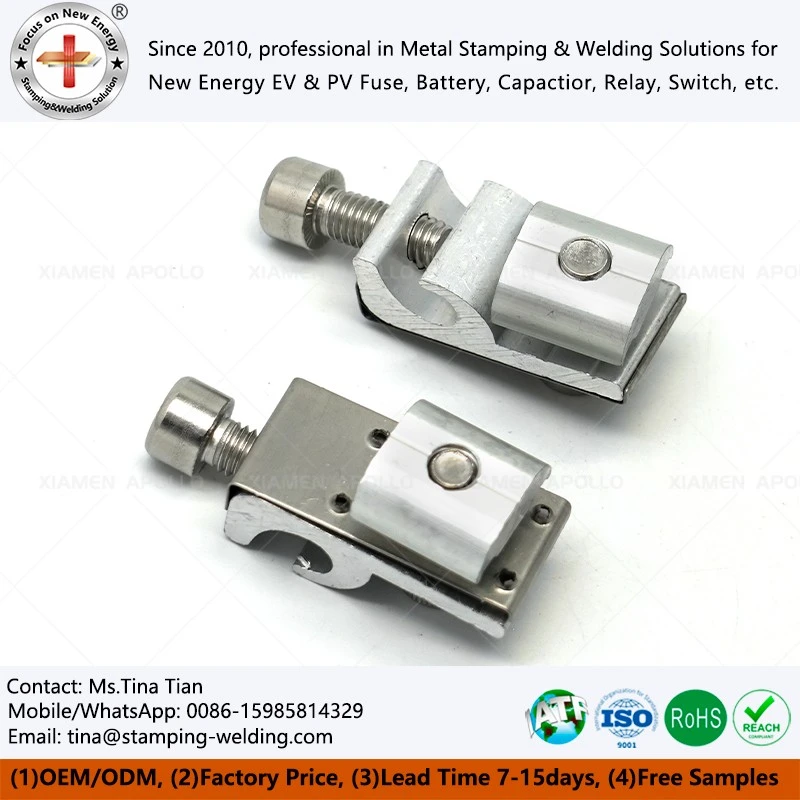

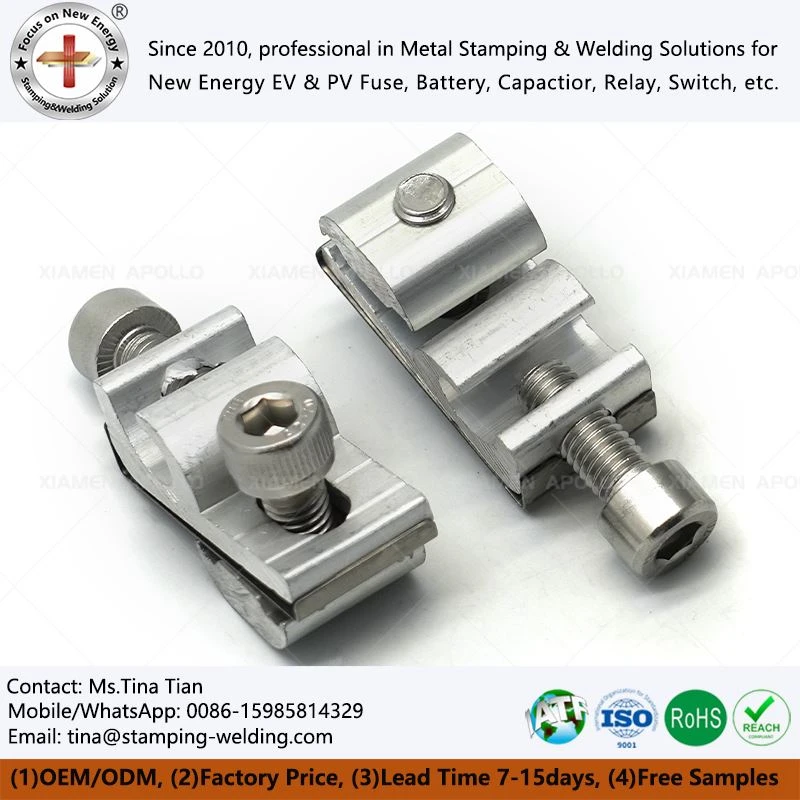

PV Rail Earthing Lug

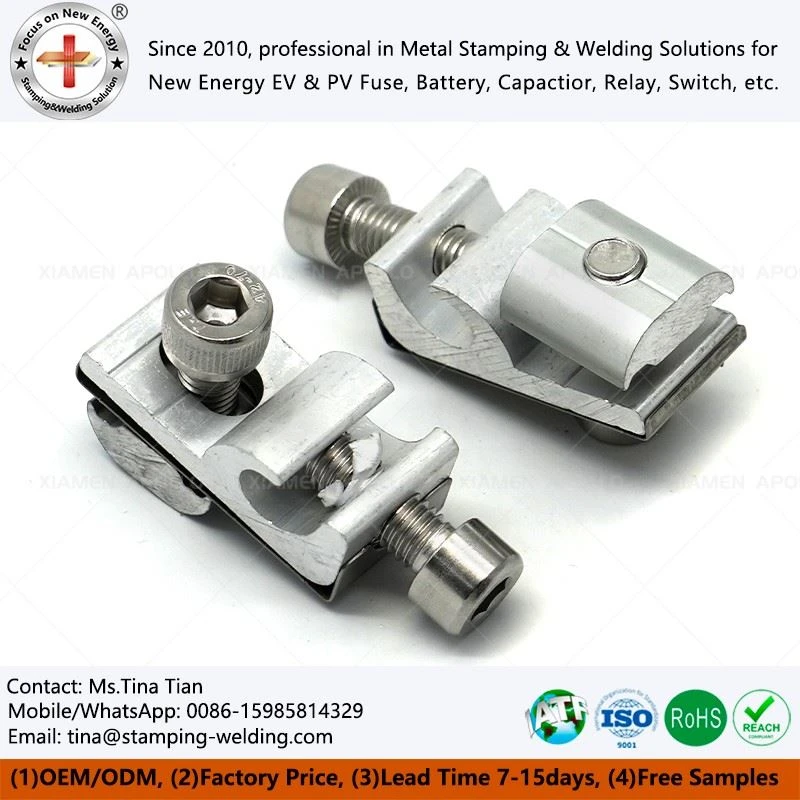

Aluminum Rail Grounding Lug
Stainless Steel Earthing Clamp

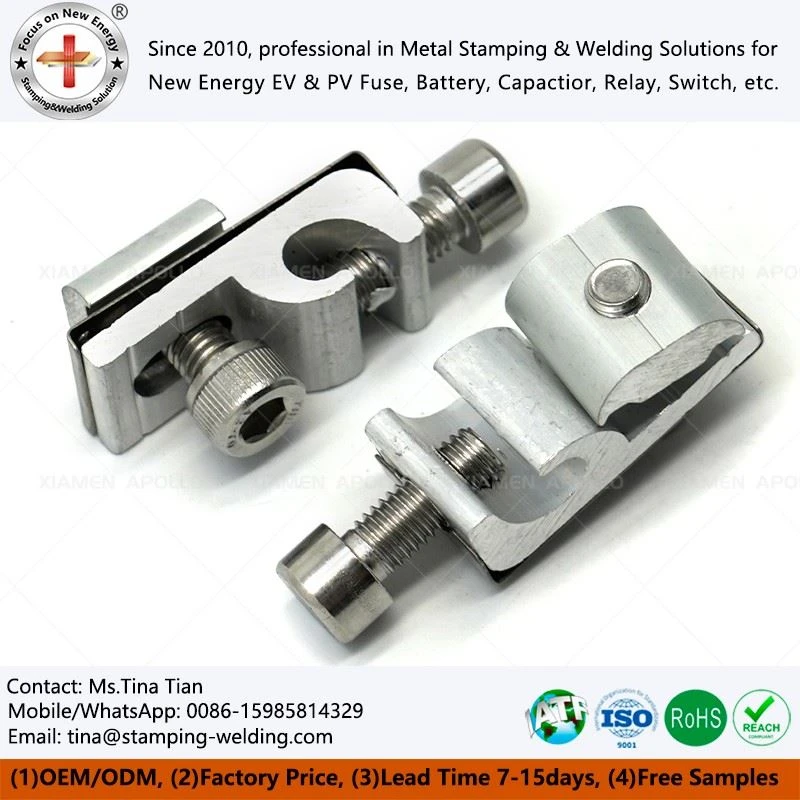

PV Module Frame Grounding Lug
Universal Grounding Connector
Piercing-type Earthing Lug
Bolt-fixed Earthing Lug
These products are compatible with a wide range of mainstream PV mounting systems, including aluminum alloy rails, galvanized steel structures, and composite support systems.
Design Advantages
Multifunctional Contact Surface
Features a unique corrugated or serrated crimping zone that maximizes the actual contact area with module frames and cables, enhancing electrical conductivity and preventing loosening.
01
Reinforced Structure
Designed with a thickened Grounding Lug For Solar Panels body and integrated reinforcing ribs to withstand installation torque and wind-induced stress, preventing deformation or breakage.
02
Adaptable Mounting Design
Oval or multi-specification mounting holes accommodate various frame widths and installation angles, minimizing the need for on-site modifications.
03
Clear Visual Markings
Features distinct grounding symbols, installation direction arrows, and specification labels to facilitate quick identification and correct installation by the workforce, thereby reducing human error.
04
Seal Compatibility
Smooth, rounded edges prevent damage to module coatings or waterproofing gaskets, ensuring the system maintains solar Panel Grounding Lug Kits overall IP protection rating.
05
Application Advantages: Full-Scenario Adaptability and Superior Installation Efficiency

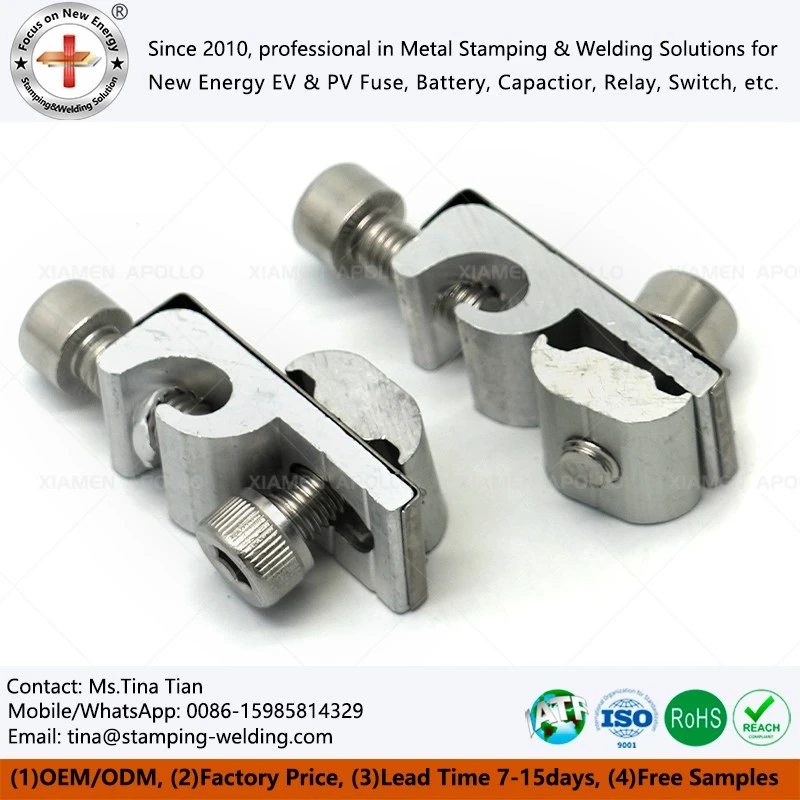

| Simplified Installation and Fool-Proof Design | For large-scale ground-mounted plants or distributed rooftop PV systems, installation efficiency directly impacts project profitability. Our grounding Ground Lug Cable Clamp to Solar Panels feature an intuitive, fool-proof design; installers require no specialized training-simply snapping the component into the module frame groove or aligning it with the edge, then tightening the bolt with standard tools, completes the grounding and conductor connection in seconds. |
| Exceptional Environmental Durability | Whether facing the extreme heat and aridity of the Saudi desert, the high salinity and humidity of the North Sea coast, or the intense UV radiation and low temperatures of the Qinghai-Tibet Plateau, our grounding components maintain mechanical and electrical stability for twenty years without requiring maintenance, thanks to their inherent material weather resistance and advanced surface treatments. |
| Broad Compatibility with Frames and Mounting Systems | The Grounding Lug for Solar PV Installation is designed to be compatible with the frame thicknesses of mainstream single-glass and double-glass modules, as well as mounting rails made from various materials. There is no need to procure different grounding component specifications for different modules, which significantly simplifies material management (BOM) and reduces procurement costs for EPC contractors. |
Why Choose Our Solar PV Earthing Lug?
Specialized Expertise
Years of deep engagement in the solar PV sector, backed by extensive engineering experience and project data.
Reliable Supply Chain
In-house manufacturing and strategic partnerships ensure material stability and consistent quality.
Comprehensive Technical Support
A one-stop solution covering everything from Solar Grounding Lugs for solar earthing kits, selection advice, and grounding calculations to installation training.
Global Recognition
Grounding Lug with U-Shape Copper Channel is exported to numerous countries and regions, facilitating the successful grid connection of high-quality PV projects.
contact us
We offer not only standardized photovoltaic Grounding Lugs for Solar Panels but also engineering-grade customization-ranging from structural design alignment to mass production-tailored to the specific structures of clients' PV mounting systems and their application environments, thereby ensuring superior long-term safety and stability under complex conditions.
