Solar Mounting Rail Connector
Solar Mounting Rail Connectors are key structural components in photovoltaic (PV) mounting systems, used to connect, extend, and secure aluminum alloy rails. They are primarily used in rooftop distributed PV systems, ground-mounted power station mounting systems, BIPV (Building Integrated Photovoltaics) structures, and large-scale centralized PV array installations. In PV mounting systems, the rails serve as the fundamental structure supporting the PV modules, and their continuity and rigidity directly determine the stability and long-term reliability of the module array. The core function of the Rail Connector is to establish high-strength, low-deformation, and long-term serviceable mechanical connection points between rails of different lengths, ensuring the overall mounting system maintains structural consistency under wind loads, snow loads, and thermal expansion and contraction.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
The Solar Mounting Rail Connector is primarily used for the following structural connection needs:
Extension connection of Solar Rails
Rapid splicing of aluminum alloy profiles
Structural reinforcement of support systems
Enhancing intermediate load-bearing nodes
Modular assembly of installation systems
Maintaining structural continuity between rooftop and ground-mounted photovoltaic systems
We offer various structural forms to suit different support system designs, including:

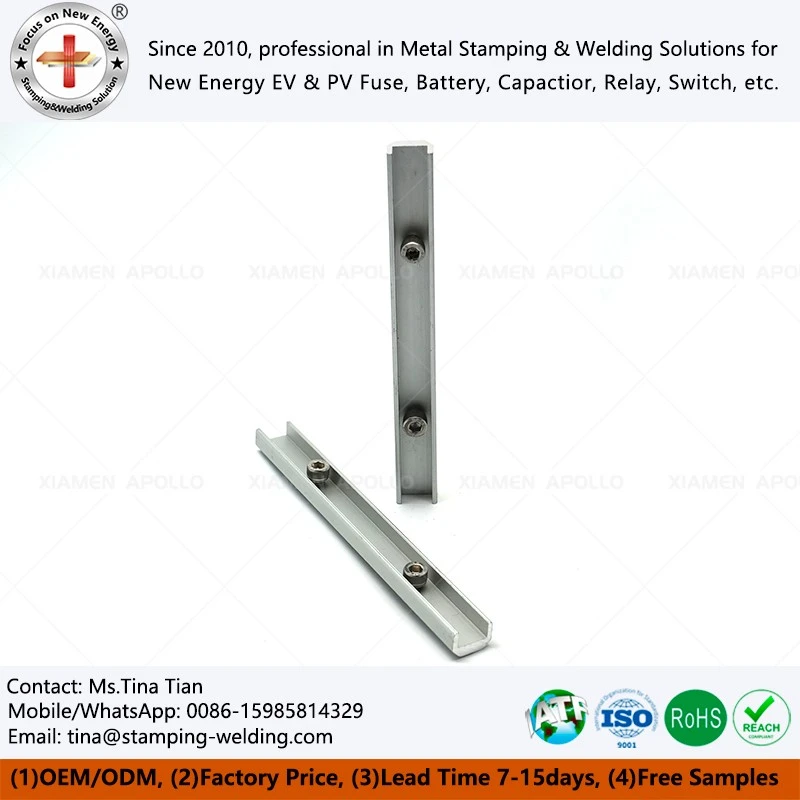

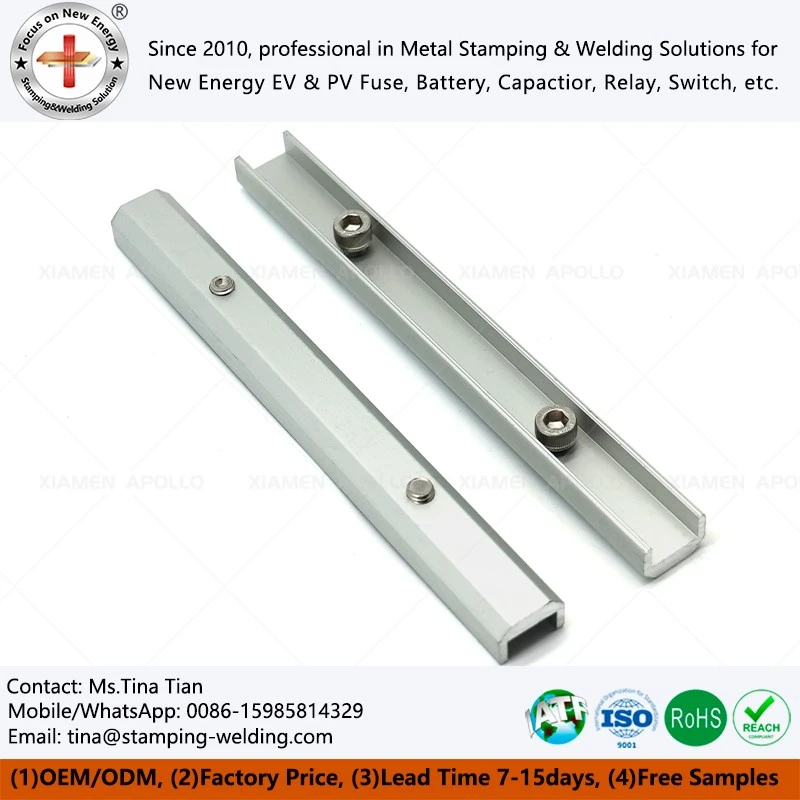

Internal Rail Connector

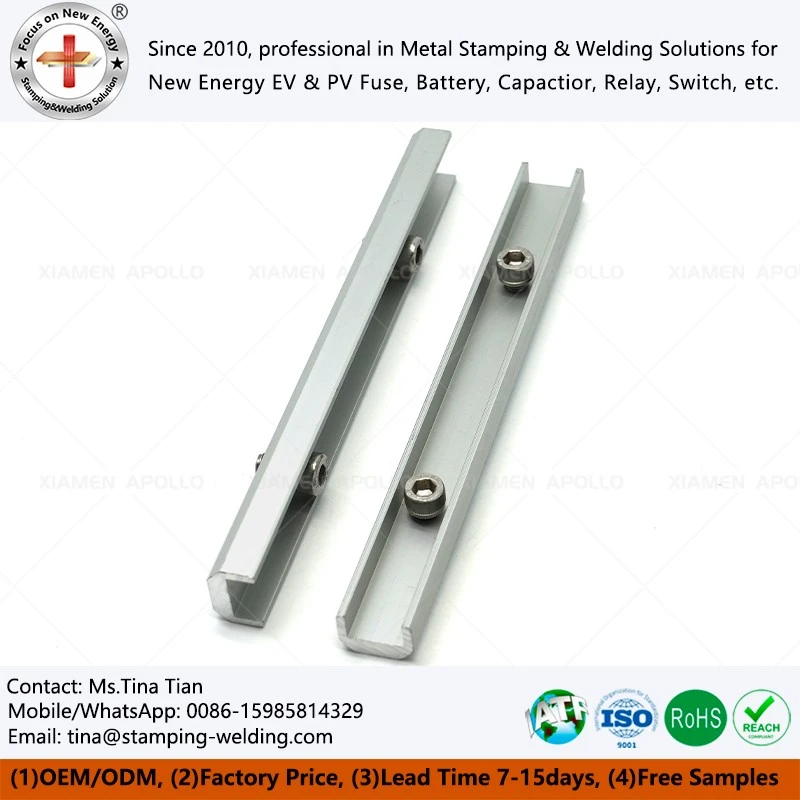

External Splice Connector
Slide-in Rail Joint
Heavy-duty Connector
Custom Structural Connector
Compatible with mainstream photovoltaic aluminum profile rail systems, achieving cross-brand compatibility.
Material Advantages
The core material is high-performance aluminum alloy (such as 6063-T5 or 6082 series), possessing excellent strength-to-weight ratio, machinability, and corrosion resistance. After anodizing, a dense protective film is formed, effectively resisting UV radiation, humidity, and mild chemical corrosion. The material's good thermal conductivity also helps balance temperature changes in the connection area.
Compared to steel connectors or simple plastic fittings, aluminum alloy rail connectors achieve the best balance in weight control, corrosion resistance, lifespan, and Solar Roof Pro Rail Connector material compatibility. This reduces the overall load on the support system and avoids corrosion problems caused by contact between dissimilar metals, making it an ideal engineering material choice for photovoltaic support systems.
Detailed Demonstration: Engineering Microscopic Views Determining the Fate of Joints
Visual Evidence of Fit Clearance
A side view of the connector after insertion into the guide Solar Mounting Rail Connector Splice Kits demonstrates a seamless fit, with no visible gaps, visually showcasing extremely high extrusion and milling precision.
Flatness of Countersunk Holes
Macro images show that after the bolts are tightened, the bolt heads are completely flush with the connector surface, without any protrusions. This ensures that the slider or clamp will not be obstructed when moving on the Solar System Panel PV Rail Connector.
Roundness of Guide Chamfers
The C-angle or R-angle treatment at the connector ends is shown, smooth and burr-free. This is crucial for ensuring that workers can quickly and smoothly hammer the connectors into the guide Solar Module Rails Profile Connector Aluminum.
Sharpness and Regularity of Tooth Patterns
A magnified view of the cross-section of the anti-slip tooth pattern shows full teeth and uniform spacing, demonstrating the superior stamping or milling process-the microscopic foundation providing immense friction.
Application Advantages and Scenarios
Large-scale ground-mounted photovoltaic power plants
Intermediate connections and extensions for long-span guide Solar Panel Mounting Rail Connectors.
01
Commercial and industrial rooftop projects
On-site splicing of segmented guide Aluminum Solar Rail Connectors for Solar Panel Mountings is limited by transportation length.
02
Distributed rooftop photovoltaics
Precise docking under complex roof layouts.
03
Tracking support systems
Stable connections under dynamic load environments.
04
contact us
We not only provide standardized Solar Panel Rail Splice Kit PV Rails Connector products, but also offer customized connection solutions based on different photovoltaic system structures, rail specifications, and engineering application scenarios. From structural design optimization to mass production support, we achieve stable engineering-grade delivery and long-term reliable cooperation.
