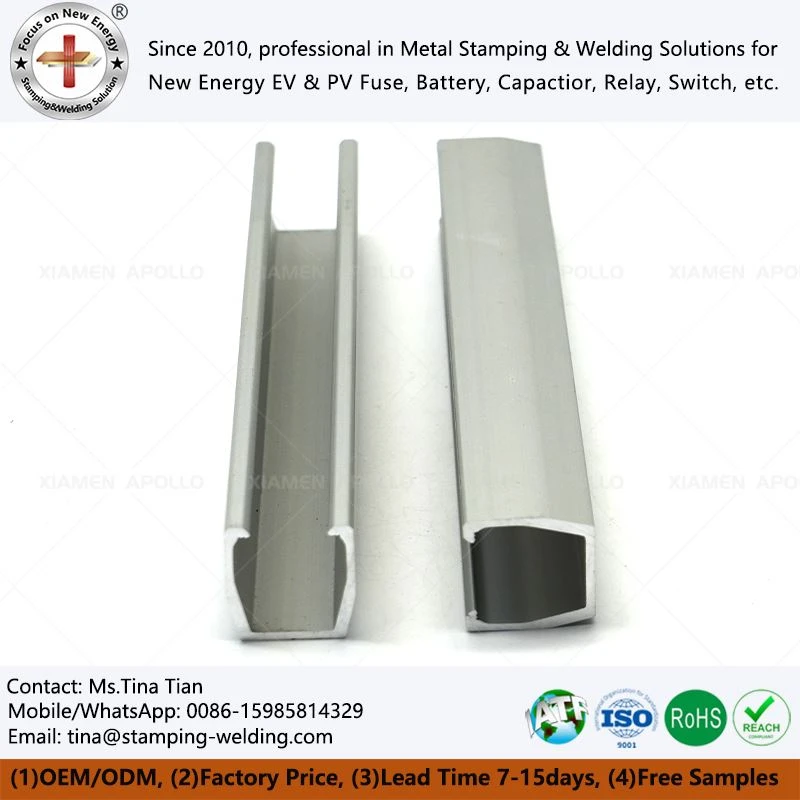

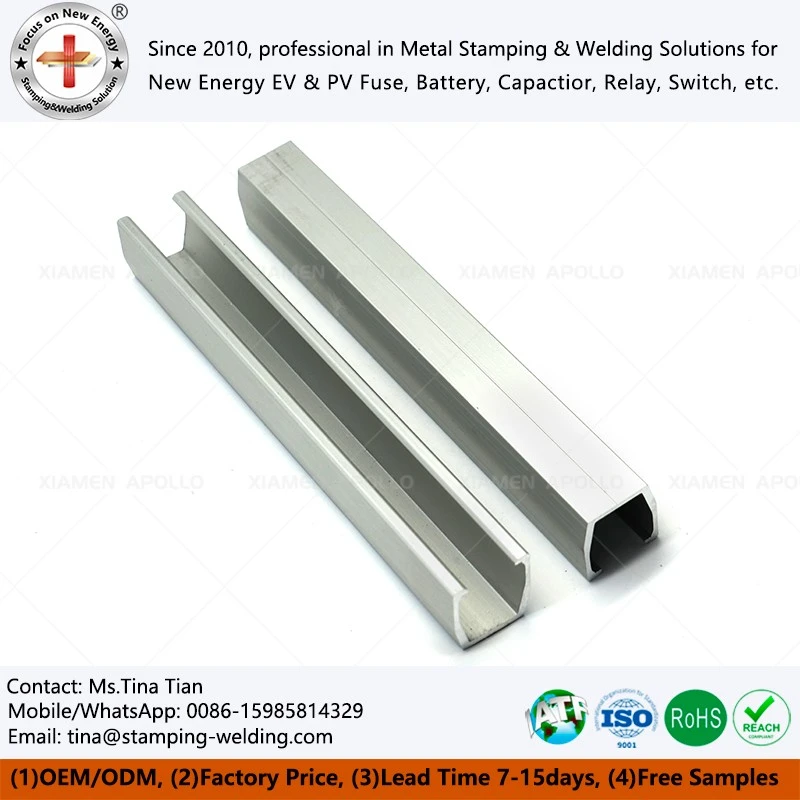

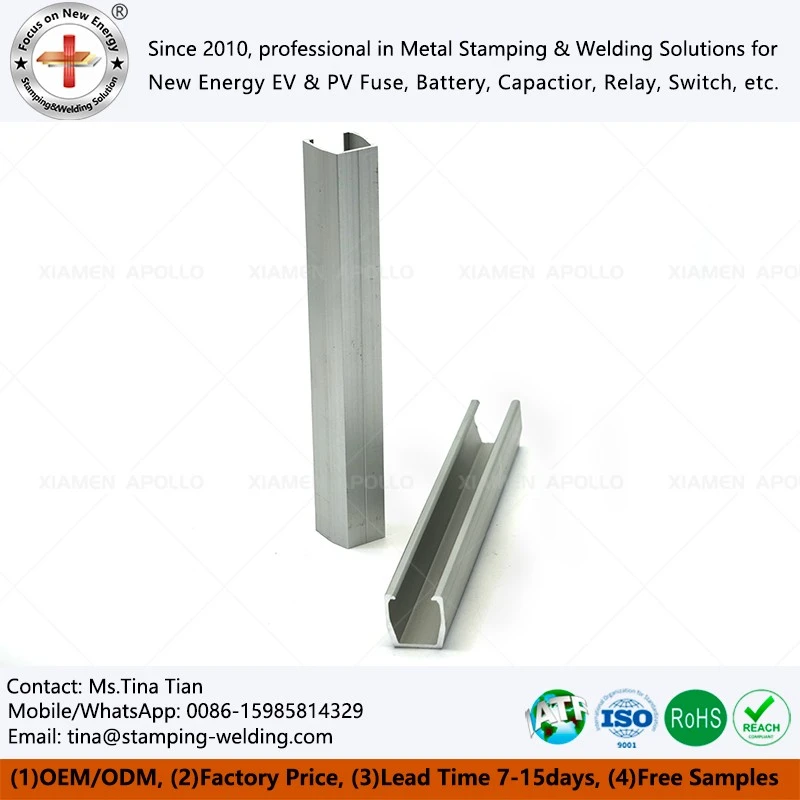

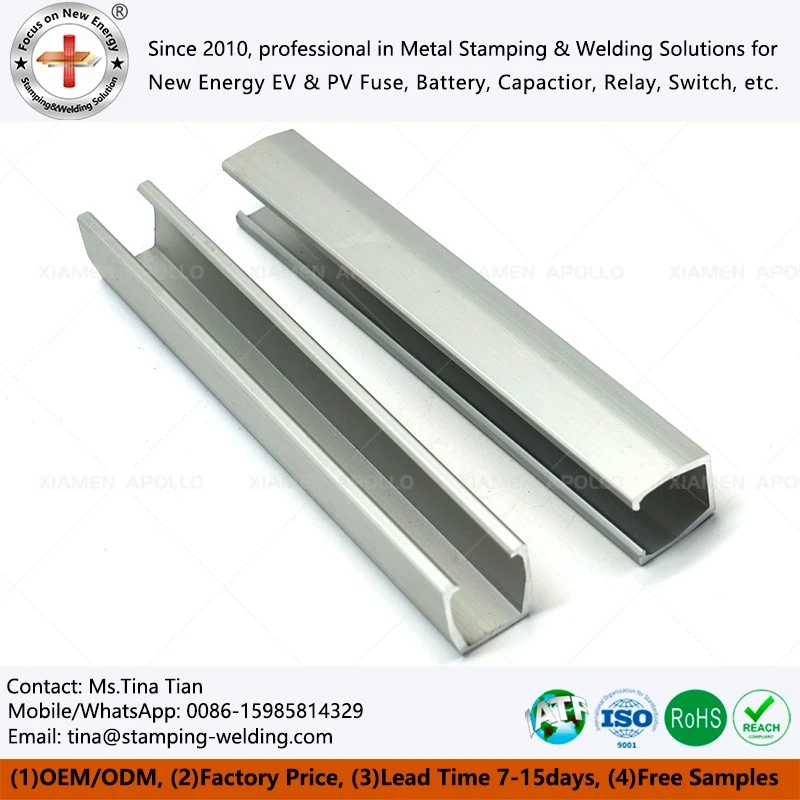

Rail For Solar Panel Mounting
In modern solar power systems, the Rail for Solar Panel Mounting is not only a crucial component of the module fixing structure, but also directly impacts the load-bearing capacity, installation efficiency, and long-term operational reliability of the entire photovoltaic support system. As a vital bridge connecting the photovoltaic modules and the supporting structure, the photovoltaic rail undertakes key tasks such as module positioning, load transfer, structural reinforcement, and system installation standardization. Whether it's a large-scale ground-mounted photovoltaic power station, a commercial or industrial rooftop project, or a distributed photovoltaic system, high-quality mounting rails are a fundamental guarantee for ensuring the long-term stable operation of the system.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
The Rail for Solar Panel Mounting is a primary load-bearing structural component in a photovoltaic (PV) mounting system.
Its main functions include:
Securing solar modules
Transferring wind and snow loads
Increasing overall support strength
Ensuring module installation accuracy
Improving installation efficiency
Supporting long-term outdoor operation
The rail system typically works in conjunction with:
Solar Clamps
Rail Connectors
Roof Hooks
Ground Mount Structures
Fasteners
to form a complete solar mounting system.
Application Advantages and Scenarios
Commercial and Industrial Rooftops
Distributed photovoltaic installations on light steel or concrete roofs.
01
Large Ground-Mounted Power Stations
Long-span guide Aluminium Accessories Solar Rail for PV Solar Mounting System arrangements for fixed or tracking support systems.
02
Residential and Agricultural Photovoltaics
Stable support for integrated agricultural and solar power applications, such as fishery-solar power integration.
03
Special Environment Projects
Photovoltaic arrays in complex climatic conditions such as high altitudes, coastal areas, and deserts.
04
Others
Building Integrated Photovoltaics (BIPV) and integrated photovoltaic applications in carports and curtain walls.
05
Detailed Showcase: Microscopic Engineering Evidence of Structural Safety
No Hidden Cracks in the Cross-Section
Through metallographic polishing of the cross-section, the metal flow lines at the junction of the reinforcing ribs and the outer wall of the profile are full, without extrusion cracks or inclusion defects. This is crucial for ensuring local tear resistance.
Gutter Chamfering and Clamping Surface Flatness
The finely chamfered treatment of the mounting groove is shown, free of sharp burrs. This facilitates smooth insertion of the clamps and prevents scratches on the anodized layer of the component frame.
End Cutting Process
The chip-free cutting process at the ends of the guide Solar Panel Mount Rail Pair is shown. The cut is flat and without deformation, ensuring concentricity and splicing strength when multiple guide rail sections are joined.
Oxide film density
The high magnification reveals the microporous structure and sealing effect of the anodic oxide film, demonstrating its resistance to corrosion and penetration in industrial polluted atmospheres.
Manufacturing Advantages and Production Processes
Die Design and Extrusion
We use imported German die steel to extrude aluminum rods under high temperature and pressure on an extrusion press. In-line quenching (Air Quenching) technology ensures a dense internal metallographic structure in the profiles.
01
Precision Sawing and Straightening
We use a CNC double-head saw for fixed-length cutting, controlling the length tolerance within ±0.5mm; a multi-roll straightening machine eliminates internal stress, ensuring straightness.
02
CNC Machining Center
PV Profile Solar Panel Aluminium Mounting Rail. For special corners or connection points, we perform deep machining such as drilling, tapping, and milling to ensure hole position accuracy.
03
Assembly and Testing
Before mass production, we randomly select samples for simulated assembly to verify the fit with fixtures and pressure blocks.
04
contact us
Whether you are developing a rooftop photovoltaic project, a ground-mounted power station system, or a customized solar installation structure, our engineering team can provide one-stop engineering support, from guide Solar Panel Rails PV module mounting cross-section design and sample development to mass production, based on component specifications, load requirements, and installation environment, helping your project to complete structural integration and mass production more efficiently.
