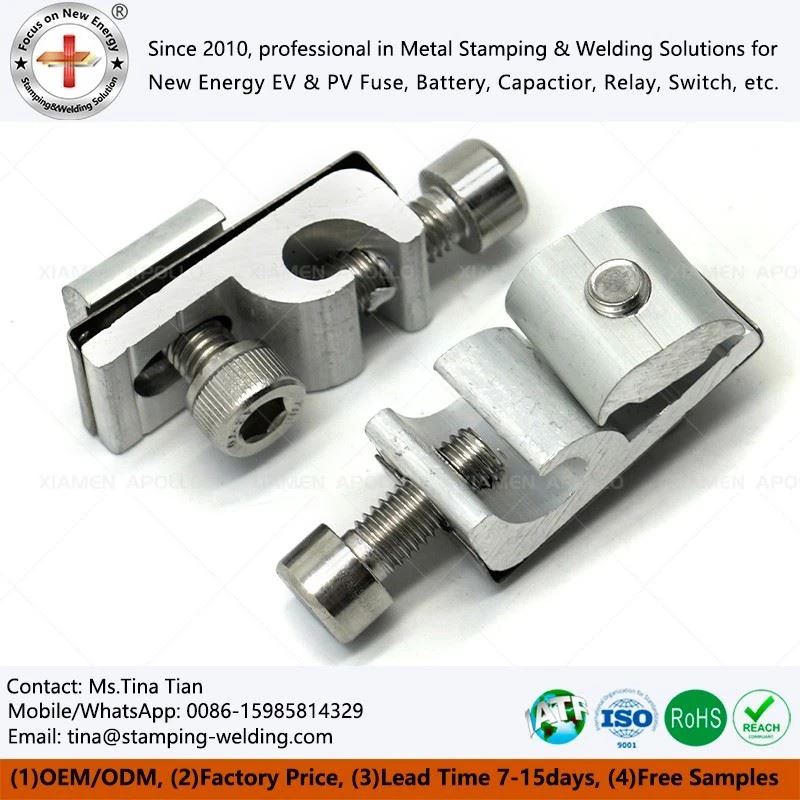

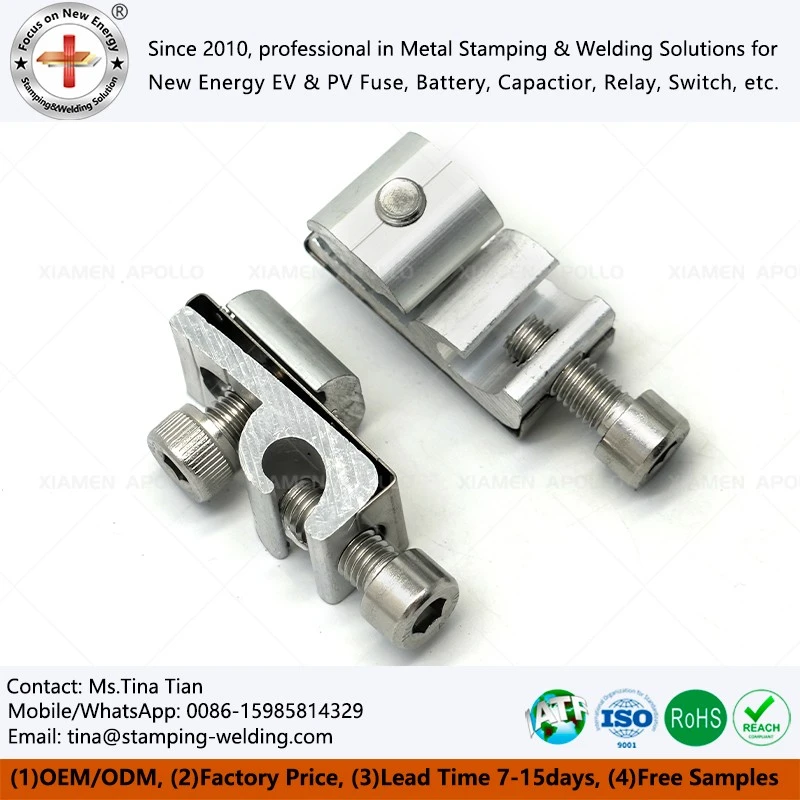

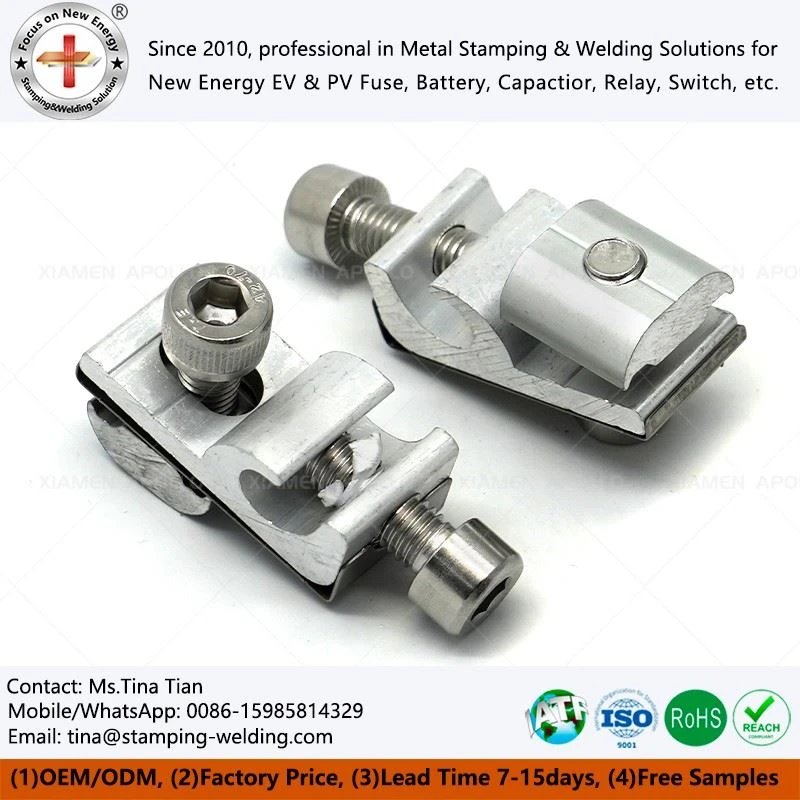

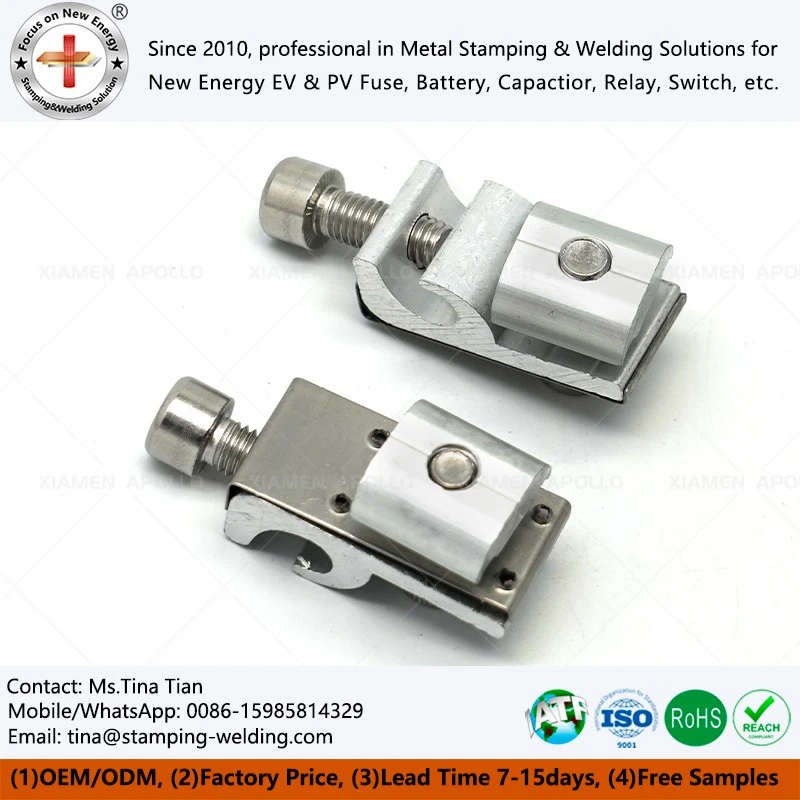

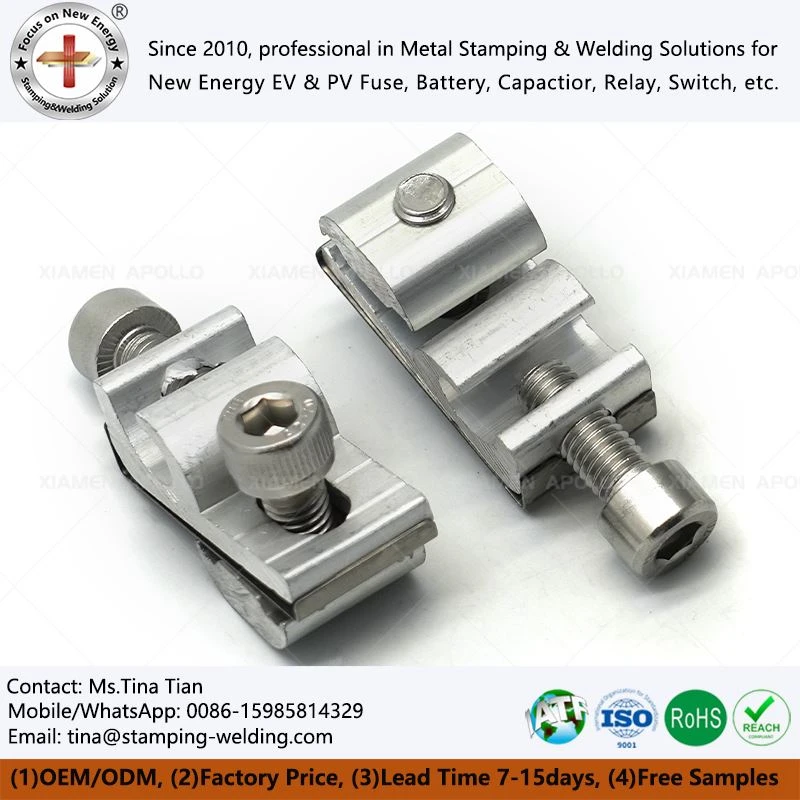

Solar Cable Clip
A solar cable clip is a component specifically designed for cable fixing and management in solar photovoltaic (PV) systems. It is primarily used to securely and neatly fix DC PV cables to the module frame, support structure, or cable tray path, thereby achieving standardized wiring, preventing cable loosening, reducing mechanical wear, and improving the overall operational safety and long-term reliability of the power station. In large-scale ground-mounted PV power plants, industrial and commercial distributed PV systems, and rooftop PV projects, the standardization of cable laying directly affects the system's electrical safety, maintenance costs, and long-term operational stability. Although a small installation accessory, the clip plays a crucial role in "basic fixing and path management" in the entire PV system project, and is an indispensable detail for ensuring the long-term stable operation of the system.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Solar Cable Clips are essentially integrated cable holders, combining mechanical snap-fit principles with weather-resistant materials. Their structure typically includes a base, cable receiving slot, and locking mechanism, allowing for the simultaneous securing of single or multiple cables and supporting the compatible installation of cables with different cross-sections.
Key features include:
Quick-fit design: Utilizing tool-less or tool-free installation methods, significantly improving on-site wiring efficiency.
Multi-cable compatibility: The slot width and flexible design adapt to various photovoltaic cable specifications, achieving neat side-by-side fixing.
Anti-slip and anti-detachment structure: Internal serrations or clamping arms ensure stable cable positioning under vibration.
Weather resistance: Materials possess excellent UV resistance, aging resistance, and high and low temperature resistance, suitable for long-term outdoor exposure.
Application Advantages: Seamless Coverage of Photovoltaic Arrays Across All Scenarios
| Commercial and Industrial Corrugated Steel Roofs | In compact rooftop distributed photovoltaic systems, cables often need to be laid close to guide rails. Cable Clips For Solar Panel Mountings suspend and fix the cables in the air, completely avoiding the risk of sheath melting due to direct contact with the high-temperature corrugated steel roof, and preventing fatal mechanical damage to the cables caused by maintenance personnel stepping on them. |
| Large-Scale Floating/Aquaculture-Solar Hybrid Power Stations | Floating photovoltaic environments have extremely high humidity and are subject to water wave vibrations. All-stainless steel or high-weather-resistant plastic cable clamps not only do not corrode themselves, but also firmly hold the cables, preventing them from sagging and being submerged in water, thus avoiding core failures caused by moisture seeping into the MC4 connector. |
| Mountainous and Desert Ground Power Stations | In mountainous terrain with significant undulations, cables often need to be stretched across complex support structures. The anti-slip design and stress buffering function of the Solar Panel Cable Clips Stainless Steels ensure that long-distance cables maintain the integrity of their sheaths under severe temperature differences, wind, and sand friction. |
Technical Features and Design Advantages: Engineering Wisdom in Micro-Geometry
Double-tooth Anti-slip Barbs/Tabs: The Stainless PV Wire Clip features tiny, reverse-sloping metal claws on its contact surface with the aluminum frame. When the clamp is pushed into the component frame, these claws firmly grip the aluminum surface. Even under strong winds, prolonged cable pulling, or its own weight, the clamp will not shift or fall off the frame.
Unique Lead-in Lip Design: The clamp's opening end features a slightly outward-flaring, streamlined dovetail design. Like a miniature self-guiding funnel, on-site workers can simply align the clamp's edge with the material and push; the metal smoothly unfolds and quickly locks in place without any jamming.
Double-tooth Anti-slip Barbs/Tabs: The Solar PV Cable Clips' opening end features a slightly outward-flaring, streamlined dovetail design. This acts like a miniature self-guiding funnel; when operating blindly, workers simply align the clamp's edge with the material and push, and the metal smoothly unfolds and locks in place without any jamming. Reasonable drainage and chip removal holes: The hollow section of the clamp has a reasonable micro gap to prevent water mixed with mud and sand from getting stuck inside the clamp in rainy and humid areas or when snow melts in winter, forming microscopic electrochemical corrosion cells and ensuring the long-term dryness of the cable environment.
Why Choose Our Solar Cable Clips?
As a professional supplier specializing in photovoltaic auxiliary accessories, we deeply understand the core needs of engineering procurement clients and EPC teams regarding cable management safety, installation efficiency, and long-term reliability. Leveraging our mature engineering plastics processing system, rigorous quality control processes, and extensive project application experience, we provide high-performance Stainless Steel Solar PV Cable Clips solutions to global customers, helping your photovoltaic projects achieve comprehensive improvements in wiring standards, safety protection, and ease of operation and maintenance.
contact us
We not only provide standardized Cable Clamp Wire Clips for Solar Panel products, but also have engineering-level customization capabilities based on photovoltaic module structures, cable routing solutions, and bracket systems. We can provide integrated support from structural design matching to batch manufacturing and delivery for large-scale photovoltaic projects to ensure that the system maintains higher stability and construction consistency throughout its life cycle.
If you need to obtain a wire clamp engineering solution that adapts to the structure of your photovoltaic project, we can provide customized optimization support based on drawings and application scenarios, and complete system-level supporting design with engineering reliability as the core.
