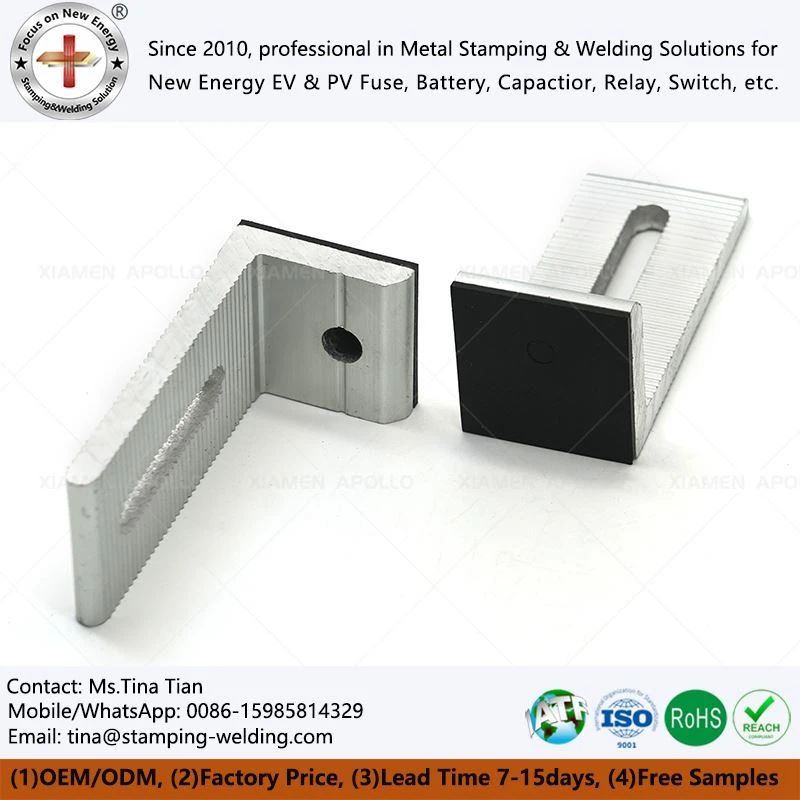

L Feet Hook In Solar Panel Mounting
The L Feet Hook In Solar Panel Mounting (aluminum L-angle roof clamp/photovoltaic hook) is a key installation connector widely used in rooftop photovoltaic systems. It is primarily used to securely fix the solar panel mounting system to the roof structure (such as tiled roofs, asphalt shingle roofs, or metal roof bases). This component safely transfers the load of the photovoltaic modules and mounting system to the main building structure through a "point load conversion + structural dispersion" method, making it one of the core basic connectors for achieving safety and stability in the entire photovoltaic installation system.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
The L Feet Hook-In Solar Panel Mounting is a fundamental connecting structural component in photovoltaic (PV) mounting systems. Its main functions include:
Securing the aluminum alloy rail system to the roof structure;
Connecting the roof substrate to the main load-bearing structure of the mounting system;
Providing a path for wind and snow load transfer;
Ensuring the overall structural stability of the PV array;
Adapting to different roof structures for flexible installation.
Typical structures include:
L-shaped support base;
Roof hook arm;
Rail fixing interface;
Anti-slip/vibration-resistant design area.
This product typically forms a complete PV mounting system together with rails, clamps, and bolts.
Application Advantages and Scenarios
Residential Distributed Rooftops

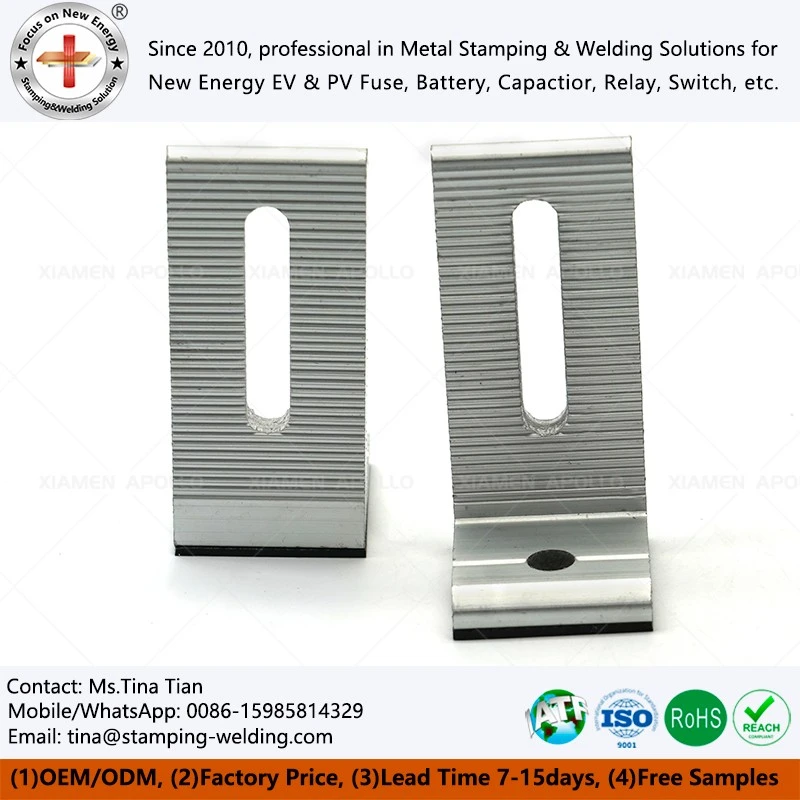

Solar panel installation and fixing on tiled or pitched roofs for L-feet Hooks For Tin Roof Solar Mounting.
01
Industrial and Commercial Metal Roofs
Connection of metal roof surfaces, such as corrugated steel sheets and aluminum-magnesium-manganese panels.
02
Light Steel Structure Factory Roofs
Anchoring of support systems for large-span roofs.
03
Retrofitting Photovoltaic Projects

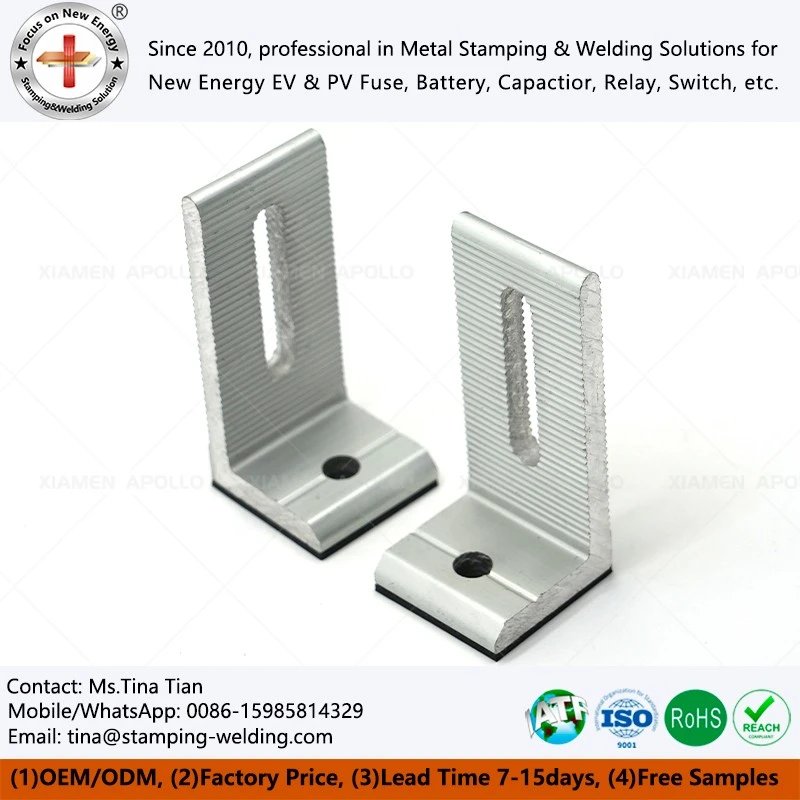

Non-destructive or low-damage installation on existing building roofs for Solar Panel Rack Aluminum Hook L Feet Kit.
04
Others
Integrated photovoltaic applications in agricultural greenhouses, parking sheds, and roofs with special slopes.
05
Detailed Showcase: The Microscopic Scale Determining the Success or Failure of Roofing Projects
Microscopic Image of Inner Cavity Fit

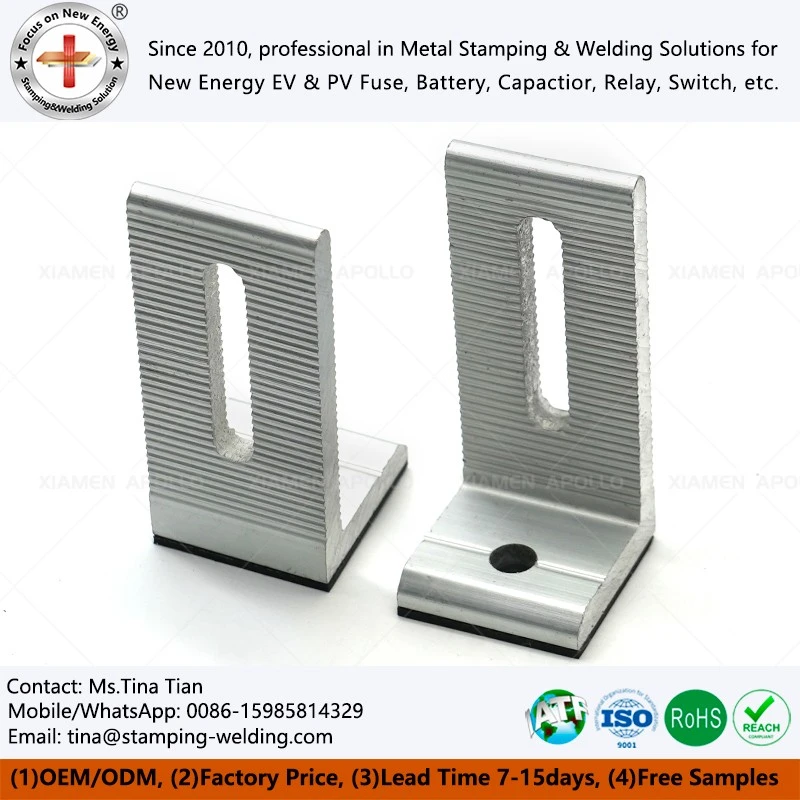

Demonstrates the fit between the Solar Roof Hook Flat Tile Hook's inner cavity curved surface and the corrugated steel sheet, showing uniform and dense gaps, proving milling precision-crucial for preventing localized stress from crushing the sheet.
Edge Treatment of the Long Hole

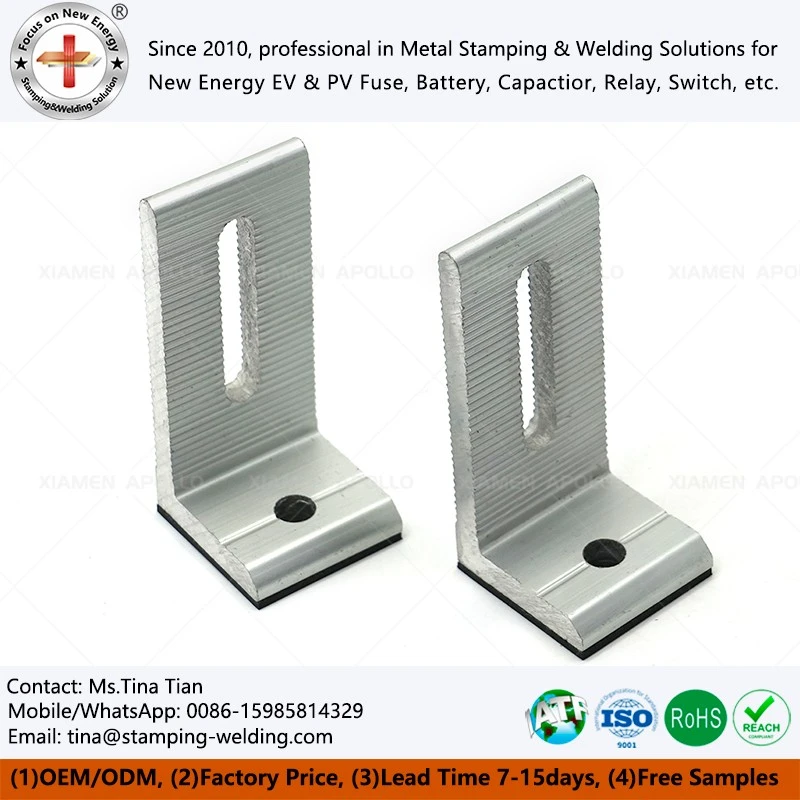

Magnified view shows the smooth chamfering and recessed design of the U-shaped groove edge, facilitating smooth nut sliding and ensuring full-area contact between the bolt bottom and the Aluminum L Feet Hook Kits For Solar Roof, preventing localized tearing.
Anodized Film Texture
Showcases the uniform color and delicate texture of the silver-white or black anodized film, L-Hook For Solar Mounting, proving that the film thickness meets outdoor-grade standards, with no exposed substrate and no color difference.
Integrated Waterproof Gasket
Demonstrates the pre-fabricated gasket positioning groove, ensuring accurate positioning of the gasket during high-altitude operations, preventing displacement and sealing failure.
Why Choose Us
In the seemingly standardized yet highly demanding field of rooftop photovoltaic (PV) L-angle profiles, our core competitiveness lies not in price, but in our deep understanding of rooftop PV structural mechanics and our precise profile design capabilities. We understand that even for L Feet Foot Hook for Solar Panel, the requirements for alloy grades, wall thickness design, and anodizing grades differ drastically depending on whether they are used in the strong wind zones of coastal Guangdong or in inland light snow zones.
Our engineering team possesses a complete technical capability chain, from alloy selection and cross-section design to extrusion die development, heat treatment process optimization, and structural verification. The development of each L Feet Clamp Roof Hook begins with an in-depth analysis of the wind pressure zone, snow pressure zone, roof type, guide rail specifications, and array span of the client's project location, rather than simply copying from a profile catalog. We offer more than just an L-angle profile; we provide a roof connection solution that has undergone structural mechanics verification and extreme environment testing.
contact us
We offer integrated, engineering-grade Metal Tin L Foot Solar Mounting Hook solutions tailored to different roof structures and photovoltaic system design requirements, encompassing structural optimization, material selection, and mass production. This helps projects achieve higher reliability and lower installation complexity.
For customized bracket solution evaluations tailored to specific roof structures, please proceed directly to the engineering inquiry process. We will leverage our system-level structural design capabilities to provide reliable support for your photovoltaic project.
