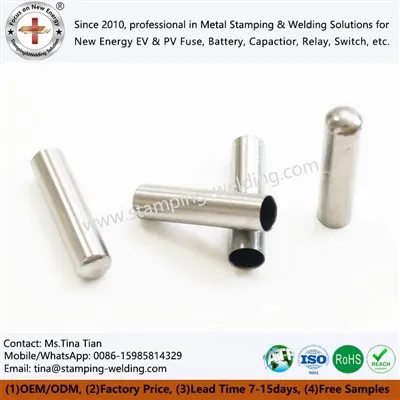

SS304 Material One End closed Pipe Fittings for Sensor

SS304 material one end closed pipe fittings for sensor are a type of pipe fitting made of SS304 stainless steel, which have good corrosion resistance and high temperature resistance and are widely used in pipeline systems for measuring and controlling the medium parameters.

PRODUCT FUNCTIONS

——

• Connecting function: The SS304 material one end closed pipe fitting for sensor can connect the pipeline system and the sensor to ensure the normal flow and measurement of the medium. It can also connect the pipeline system and the equipment or instrument to ensure that the pipeline system can work normally.
• Blocking function: SS304 material one end closed pipe fittings can close one end of the pipeline to prevent the medium from leaking out of the pipeline. At the same time, it can also block the pipeline to isolate the pipeline system to facilitate the installation and maintenance of pipeline equipment.
• Transmitting function: SS304 material one end closed pipe fittings can transmit the pressure, temperature and other information of the medium to the sensor to ensure that the sensor can work normally and accurately measure the medium parameters.
• Isolation function: SS304 material one end closed pipe fittings can isolate the pipeline system to avoid mutual interference between different pipeline systems and avoid pollution between different media.
• Adjustable function: SS304 material one end closed pipe fittings can adjust the position and angle of the sensor to ensure that the sensor can work normally according to different working conditions and installation sites.
• Safe protection function: SS304 material one end closed pipe fittings have good pressure resistance and temperature resistance, which can ensure the safety of pipeline equipment and personal safety in pipeline operation.

PROCESSING TECHNOLOGY
——

• Cutting Processing: SS304 material one end closed pipe fittings can be cut into different lengths according to the needs of pipeline systems. The commonly used cutting methods include cold sawing, torch cutting and laser cutting. The cutting surface should be smooth and straight, and the edges should be vertical and true.
• Bending Processing: Bending Processing: end closed pipe fittings need to be bent to adapt to different installation sites and pipeline layouts. The commonly used bending methods include gas bending, precision bending and forming. The requirements of bending processing are: straight line, uniform radius, no cracking, no flattening, etc.
• Threading Processing: SS304 material one end closed pipe fittings need to be threaded according to the needs of pipeline systems. The threading method should ensure that the pipe outer thread and the socket inner thread can match with each other closely and can rotate smoothly.
• Facing Processing: SS304 material one end closed pipe fittings need to be faced according to the needs of pipeline systems. The facing processing should ensure that the surface of the fitting is flush with the surface of the pipeline and can be connected with the pipeline tightly.
• Flaring Processing: SS304 material one end closed pipe fittings need to be flared according to the needs of pipeline systems. The flaring processing should ensure that the flare face is perpendicular to the axis of the pipe and has a smooth surface and good sealing performance.

PRODUCT INSPECTION

——

• Visual inspection: The appearance of SS304 one end closed pipe fittings should be checked whether there is rust, pitting, deformation, welding seam, etc. The surface treatment should be checked whether it meets the requirements of the contract.
• Dimensional inspection: The dimensions of SS304 one end closed pipe fittings should be checked whether it meets the requirements of the contract. This inspection should include the diameter, length, angle, etc. of the pipe fittings.
• Material inspection: SS304 stainless steel should be checked whether it meets the requirements of the contract. This inspection should include chemical composition, mechanical property, microstructure, etc. SS304 stainless steel should be selected according to the specific application occasions and corrosion resistance requirements.
• Function test: The sensor one end closed pipe fittings should be function-tested whether it meets the requirements of the sensor after welding. This test should include pressure loss, leak tightness, medium resistance, etc.
• Non-destructive testing: Non-destructive testing methods such as magnetic particle testing, liquid penetrant testing, etc. should be carried out on SS304 one end closed pipe fittings to detect whether there is hidden trouble such as crack, blowhole, etc.
• Surface treatment inspection: The surface treatment of SS304 one end closed pipe fittings should be checked whether it meets the requirements of the contract. This inspection should include surface roughness, brightness, hardness, etc. SS304 stainless steel surface treatment should take into account the wear resistance and lubricity factors.
