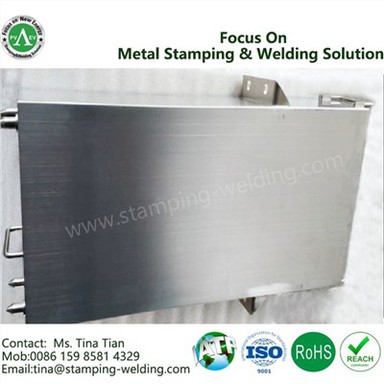

Capacitor Steel Can
Product Name:Capacitor Steel Can
Model Number:ASWT-C006
Product Size:According to customer requirements
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Capacitor Steel Can Material
SUS304 stainless steel or customized;
Surface Treatment
1,Shell surface drawing (mesh 240#~320#), drawing direction is consistent.
2,Shell weld, installation ear corner, shell mouth, no sharp edge.
3,The shell joint marks are polished clean without scratching hands.
Riveting Nut & Bolt
The riveting nut (bolt) is made of 304 stainless steel, the gap of the riveting surface is less than 0.05mm.Riveting nut (bolt) need to repair the nut (bolt) cylindrical root welding two points, increase strength.
Flatness
Flatness of shell body, according to length range, refer to table below:
|
Tolerance Grade |
Basic Length Range | ||
| 0-100 | ＞100-400 | ＞400-1000 | |
| A | 0.3 | 0.5 | 0.7 |
| B | 0.6 | 0.8 | 1 |
| C | 0.7 | 1.2 | 1.5 |
Welding technology:
1,Welding strength: when laser welding, two small sections of steel should be welded before welding the case, and tensile machine should be used to test the tensile force when the fracture strength is greater than 800N/mm before welding.
2,All welding parts shall be fully welded, without virtual welding and leakage welding, and polished after welding.Welding spot using ultrasonic cleaning, no rust water residue.
3,Laser welding with weld width greater than 1mm and fusion depth greater than 0.6mm.
4,Manual argon arc welding, stainless steel wire as filler, weld width > 1mm.After welding, grind the weld to bright with Angle mill.
Used for UPS, inverter, electroplating power supply, inverter welding machine, inverter power supply
And induction heating equipment, large switching power supply and other power electronics equipment
Used for filtering or storage capacitors in energy storage welders.
