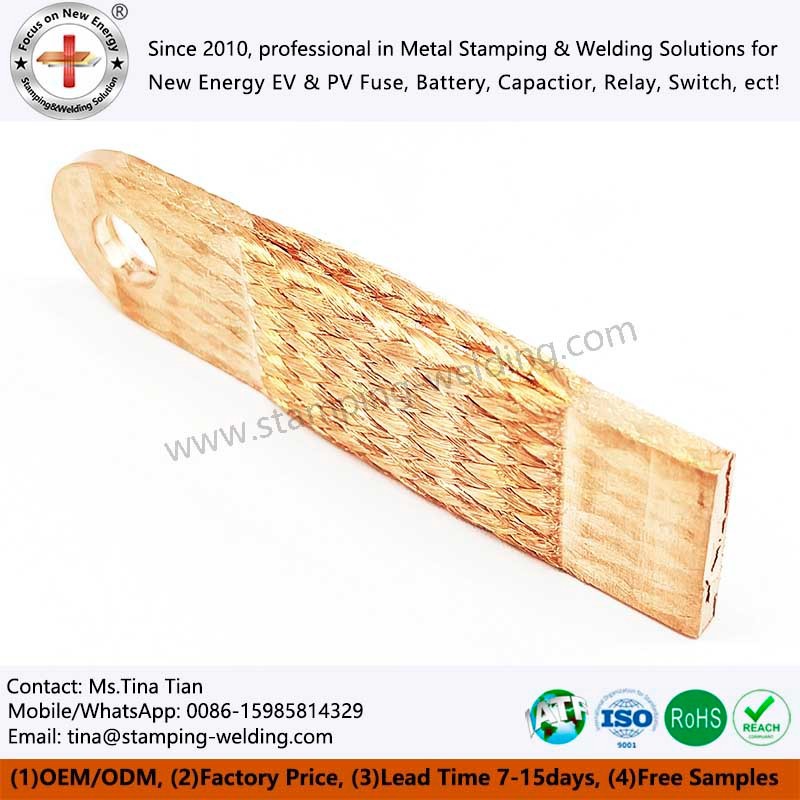

Braided Copper Flexible Busbar
Our braided copper flexible busbars utilize precision-braided multidirectional strands for superior current sharing and ultra-low impedance (<0.1mΩ/m). Proprietary annealing processes enhance fatigue resistance (10,000+ flex cycles), while nickel-plated variants withstand harsh environments. With 15+ years in high-current solutions, we offer custom configurations within 72-hour prototyping and full ISO-9001 certification support.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
A braided copper flexible busbar is an advanced electrical conductor composed of finely woven copper strands, offering unmatched flexibility and vibration resistance compared to rigid busbars. This innovative design enables dynamic movement compensation in high-current applications while maintaining stable conductivity. The interwoven structure provides superior heat dissipation and electromagnetic shielding properties, making it ideal for evolving power transmission challenges in modern electrification systems.
Product structure
The braided copper flexible busbar features a multi-layer architecture with finely woven oxygen-free copper strands forming the core conductive layer, surrounded by high-temperature resistant fiberglass sleeves for mechanical protection. Optional nickel/tin plating layers enhance surface durability, while the interlocking spiral weave pattern ensures uniform current distribution and 360° flexibility without strand breakage.
working principle
The flexible braided copper busbar operates by distributing electrical current through its interwoven network of fine copper strands, which collectively provide multiple parallel conductive paths. This design inherently compensates for thermal expansion/contraction and mechanical vibrations through micro-movements between strands, while maintaining continuous conductivity. The braided structure's inherent gaps enhance heat dissipation, and its dynamic flexibility accommodates equipment movement without creating stress points in electrical connections.
The advantages we offer
1.Our braided flexible copper busbar utilizes 99.99% pure oxygen-free copper strands, ensuring maximum conductivity (101% IACS) and corrosion resistance for long-term reliability in harsh environments.
2.The copper flexible braided busbar design offers unmatched vibration resistance (10,000+ flex cycles) and thermal expansion compensation, preventing connection failures in dynamic applications like EVs and robotics.
3.With the flexible copper braided busbar, customers benefit from our 15-year manufacturing expertise, including custom configurations within 3-5 days and full UL/IEC certification support for global compliance.
fields of application
The flexible braided copper busbar is essential for electric vehicle battery packs, providing vibration-resistant connections between modules that withstand constant movement and thermal cycling.
In industrial robotics, the braided flexible copper busbar ensures reliable power transmission for moving arms and joints, accommodating multi-axis motion without conductor fatigue.
Renewable energy systems utilize the copper flexible braided busbar in solar inverters and wind turbine generators, where it compensates for structural movement while maintaining low-impedance current transfer.
