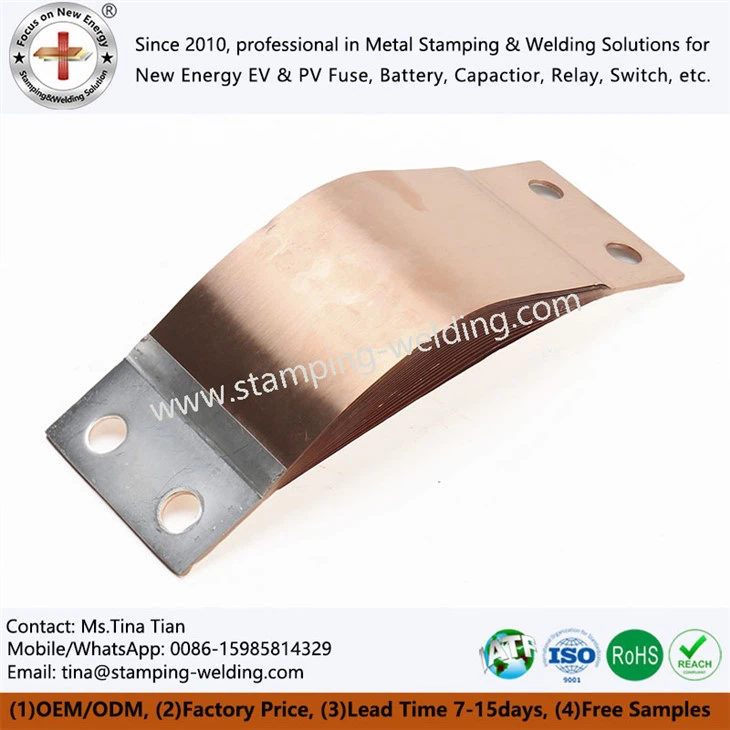

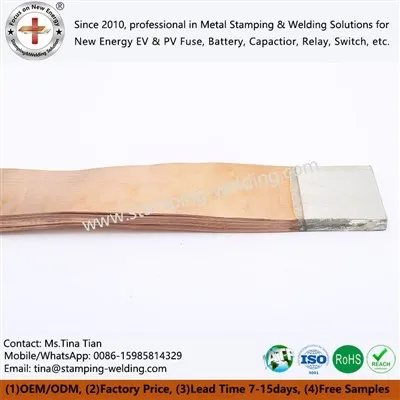

Flexible Copper Foil Shunt Connector

The Flexible Copper Foil Shunt Connector is a significant innovation in electrical connectivity, offering adaptability, conductivity, and efficiency for diverse applications. Utilizing copper foil, known for its high conductivity and malleability, this connector serves as a bridge between components, particularly in situations where traditional rigid connectors are impractical. Its flexibility allows it to conform to intricate designs, addressing the growing demand for connectors that navigate tight spaces. The subsequent exploration will delve into the features, applications, and advantages that make the Flexible Copper Foil Shunt Connector indispensable in contemporary electronic systems.



• Flexibility and Conformity

The primary strength of the Flexible Copper Foil Shunt Connector lies in its flexibility. This characteristic allows it to easily conform to the contours of complex and space-constrained designs, providing a versatile solution for intricate electronic layouts.

• High Electrical Conductivity

Leveraging the exceptional conductivity of copper foil, this connector ensures efficient and low-resistance electrical pathways. The high conductivity of copper contributes to minimal power loss and optimal signal transmission, making it ideal for applications where electrical performance is critical.

• Reduced Mechanical Stress

The flexibility of the connector reduces mechanical stress on connected components. This is particularly advantageous in applications where rigid connectors may subject components to undue strain, potentially compromising their structural integrity over time.

• Vibration and Shock Resistance

The malleability of copper foil in the Flexible Copper Foil Shunt Connector enhances its ability to absorb vibrations and shocks. This makes it well-suited for applications in environments where mechanical stress and movement are prevalent, such as in automotive and aerospace electronics.

• Cost-Effective Manufacturing

The manufacturing process of Flexible Copper Foil Shunt Connectors can be cost-effective, especially when compared to more rigid and complex connector designs. This cost efficiency contributes to the overall economic viability of electronic systems.



• Rolling Mills

Rolling mills are crucial for reducing the thickness of copper foil to the desired dimensions. These machines apply pressure to the metal, ensuring precision in thickness and a consistent quality of the copper foil.

• Etching Machines

Etching machines are used to selectively remove material from the copper foil. This process helps create intricate patterns and shapes required for the Flexible Copper Foil Shunt Connector. Chemical etching or photochemical milling processes are often employed.

• Lamination Machines

Lamination machines are used to bond multiple layers of copper foil together, forming a flexible and conductive laminate. This process is vital for achieving the desired flexibility and conductivity of the shunt connector.

• Cutting and Stamping Equipment

Cutting and stamping equipment is employed to precisely shape the laminated copper foil into the final form of the shunt connector. Computer Numerical Control (CNC) machines may be utilized for accuracy in cutting and shaping.

• Annealing Furnaces

Annealing is a heat treatment process that helps enhance the flexibility and conductivity of the copper foil. Annealing furnaces are used to subject the material to controlled heating and cooling cycles.

• Quality Control and Testing Equipment

Various testing equipment, such as impedance testers, thermal cycling chambers, and electrical testing devices, are essential to ensure the quality and reliability of the Flexible Copper Foil Shunt Connectors. Quality control measures are integrated into the manufacturing process.

• Automated Assembly Lines

Depending on the complexity and scale of production, automated assembly lines may be employed to streamline the manufacturing process, ensuring efficiency and consistency.

• Environmental Control Systems

Precision control of environmental conditions, including temperature and humidity, is critical in ensuring the quality and consistency of the manufacturing process.
