Breaker Busbar
Breaker busbar is a dedicated bar that is compatible with various molded case, frame, and miniature circuit breaker cabinets. As a core structural component for primary power collection and branch connection in low-voltage power distribution, new energy storage cabinets, and power electronic frequency converter equipment, it connects the main circuit trunk line to the circuit breaker input port and takes into account the four basic core operating conditions: rated current carrying capacity, short-circuit current withstand, phase-to-phase electrical insulation, and cabinet mechanical fixation.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
A breaker busbar is a rigid conductive connection component designed specifically for low-voltage power distribution systems, new energy equipment, and industrial control cabinets. Made from high-purity copper or aluminum, it is formed through precision stamping, bending, and surface treatment processes, and is used to achieve standardized electrical interconnection between components such as circuit breakers, fuses, and surge protectors.
Core Functions
Steady-state continuous current carrying capacity with precise and controllable voltage drop: Matching the rated current gradient cross-section design of the circuit breaker, the BusBar Breaker's low internal resistance characteristics ensure stable carrying of rated continuous current and short-term peak current, strictly controlling full-load voltage drop and temperature rise to guarantee long-term stable power transmission.
Short-term short-circuit withstand capability and reliable structural deformation resistance: Relying on the Distribution BusBar's sufficient rigidity and strength, it withstands the instantaneous electromagnetic impact of a short circuit. It does not bend, shift, or fail structurally during a fault, safeguarding the safety of primary equipment and preventing fault propagation.
Standardized insulation layout to avoid creepage and arcing risks: The circuit busbar's integrated, burr-free molding process strictly adheres to IEC electrical clearance and creepage distance standards, adapting to high-humidity and dusty conditions inside cabinets, effectively reducing the risks of creepage, surface discharge, and arcing.
Integrated rigid structure for long-term vibration and fatigue resistance: The integrated rigid connection structure is suitable for outdoor and vehicle-mounted high-vibration scenarios, resisting resonance and mechanical fatigue. Under long-term bumps and vibrations, the connection points do not loosen or shift, eliminating loose connections and overheating for busbar connection.
Fitted closed-loop heat dissipation and balanced temperature control across the entire area: The flat busbar breaker form fits the cabinet air duct, quickly dissipating the heat accumulated by high current, ensuring balanced temperature across the entire area, slowing down thermal aging of insulation, and adapting to high-power, high-frequency, uninterrupted heavy-load operation.

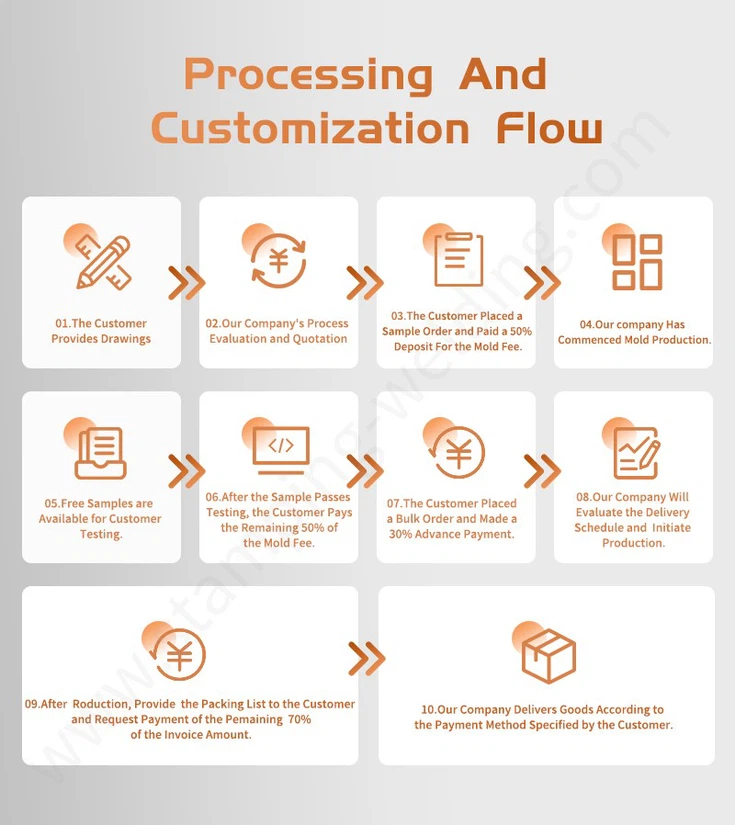

Customization process
Drawing Parameter Submission and Technical Filing: Clients provide a complete set of engineering drawings in PDF/CAD/3D format, clearly specifying current, installation dimensions, operating conditions, and delivery cycle. We simultaneously establish a dedicated technical file, accurately anchoring busbar circuit breaker development benchmark parameters and quickly completing initial technical coordination.
Dual-Line Process Review and Compliance Quotation: Engineering and process engineers simultaneously review the feasibility of the drawings for processing and their on-site adaptability, assess process risks, and provide detailed itemized quotations. This proactively avoids the costs of secondary busbar for circuit breaker modifications later, ensuring a closed-loop confirmation between technical and commercial aspects.
Mold Project Development and Free Sample Testing: After scheme confirmation, 50% of the mold cost is prepaid. The factory locks in the production schedule and performs high-precision mold opening. After mold verification meets standards, 1-20 circuit breaker panel busbars samples are provided free of charge and delivered to the client for rapid installation, temperature rise, and insulation testing under full operating conditions.
Sample Confirmation and Batch Production Capacity Lock-in: After the customer's on-site testing is passed, the remaining balance for the mold is settled, and the entire Busbar with Pins for Circuit Breaker manufacturing process is solidified. A batch order is then placed with a 30% prepayment, specifically locking in raw material and workstation capacity, eliminating the risk of supply disruptions and delays even during peak seasons.
Traceable Raw Material Mass Production and Comprehensive Closed-Loop Quality Inspection: High-purity copper and insulating auxiliary materials are procured through compliant traceability channels, enabling fully automated and standardized mass production. After finished Pin Type Copper BusBar roll off the production line, comprehensive sampling inspections are conducted on electrical performance, dimensional tolerances, and appearance, with batch qualification certificates issued simultaneously to verify and lock in product quality.
Final Payment Settlement and Full Traceability Delivery: After the customer settles the remaining 70% of the batch payment, delivery is made according to the designated timeframe and logistics channels. The entire logistics process is traceable, ensuring safe and reliable delivery of batch BusBar to the project site.
Frequently Asked Questions
WHAT ARE YOUR CERTIFICATES?
We have ISO9001, IATF 16949 certificates, RoHS and Reach.
CAN YOU PROVIDE SAMPLES?
Yes, but the BusBar Breaker sample fee and freight will be paid by your company.
HOW TO ARRANGE DELIVERY?
If you have forwarder in China, we can send you the circuit breaker busbar by your forwarder.
If you have no forwarder in China, we arrange the delivery directly from factory by international express, by air and by sea, it's up to you.
WHY CHOOSE OUR Breaker BusBar?
We are the original factory in China, can supply the Ex-works;
We have been in professional in new energy field 15 years more and have enough successfull experiences to help you improve technology but cost down;
We have branches sales office in India, Iran, Spain, Germany, Japan, can supply the fast local service.
Contact Us
If you have any needs regarding the procurement, selection, sample request, or customization of breaker busbar, or if you wish to learn more about the product details, please feel free to contact us. We will arrange a professional team to provide one-on-one service, customize adaptation solutions, and ensure stable supply, accurate selection, and efficient procurement.
Hot Tags: breaker busbar, China, manufacturers, suppliers, factory
