Busbars Insulation Sheet

Busbar Insulation Sheet is an efficient electrical insulation solution designed to protect busbars in power systems. By heating and shrinking, the heat shrink tube is tightly wrapped on the busbar surface to form a solid insulation layer, effectively preventing current leakage and short circuit. Its excellent heat resistance and corrosion resistance ensure long-term stable operation and are suitable for various industrial environments. This product not only improves the safety of equipment, but also extends its service life. It is an indispensable component in the power system.

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Products Description

Our Busbars Insulation Sheet are made of high-quality insulating materials and have excellent physical, chemical and electrical properties. The products are mainly used for insulation protection of busbars. They are resistant to high voltage, acid, alkali and salt corrosion, and have strong flame retardancy. The use of this product can shorten the busbar spacing, save space costs, improve safety, and effectively prevent risks such as short circuits, corrosion and accidental injuries. It is an ideal choice for power distribution equipment.

Dimensions	OEM/ODM as your drawing.
Certifications	ISO9001, IATF16949, RoHS. Reach, etc.
Shipping Methods	By Air/Sea/Train, Express (DHL/UPS/TNT /FEDEX, etc.).
Payment Items	30% deposit and balance before shipment by Bank T/T or L/C at sight.
Samples	Allowed, made by laser cutting or CNC punching machine, lead time 5-10 days.

4293.1

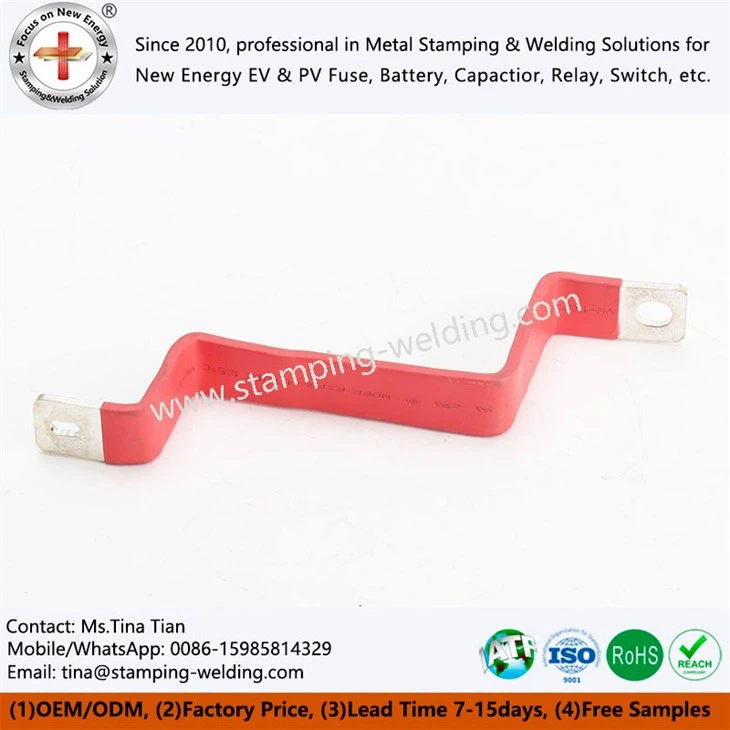

Busbar Insulation Sheet

Product storage

Environmental requirements

Heat Shrink Tube Polyolefin Busbars should be stored in a ventilated, dry and clean environment. Avoid long-term exposure to direct sunlight or high temperature environment. It is recommended that the storage environment temperature and humidity does not too high to prevent the material from getting damp or aging.

Prevent damage

During storage, the Heat Shrink Tubing BusBar should be protected from mechanical damage such as extrusion and scratches. When stacking, it should be handled with care to ensure that the product is not impacted by external forces.

Classified storage

For ease of management and use, it is recommended to store heat shrink tube insulation busbars according to specifications, colors, etc. This can not only improve work efficiency, but also effectively prevent confusion.

Fire safety

Since heat shrink tubes are combustible, they should be stored separately from flammable and explosive items to ensure the safety of the storage environment.

Regular inspection

For Busbars Insulation Sheet stored for a long time, their status should be checked regularly to ensure that they have not deteriorated or damaged. If abnormalities are found, they should be handled in time.

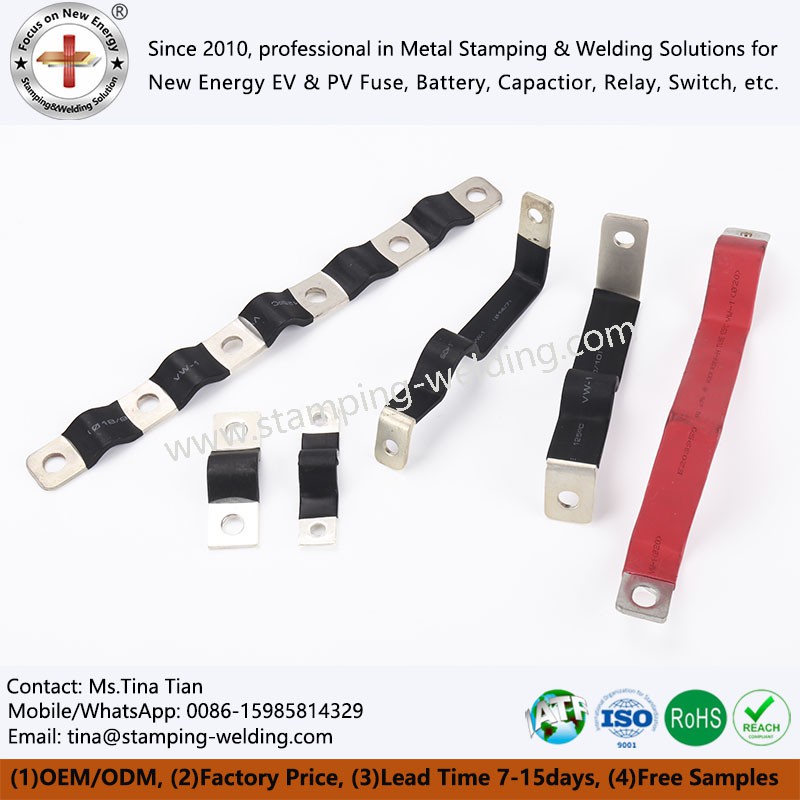

Busbar Insulating Tubings

Product Customization Process

The customer provides Heat Shrink Tube Polyolefin Busbar drawings in PDF/CAD/3D and other formats

Our company conducts process and price evaluation

After the price is approved, the customer places a sample order and prepays 50% of the mold fee

Our company starts mold production

Our company provides 1-20 free samples to customers for testing

After the sample passes the customer test, the customer pays the remaining 50% of the mold fee

The customer places a batch order and prepays 30% of the payment

Our company evaluates the delivery date and starts production

After the product is produced, the customer is provided with a packing list and asked to pay the remaining 70% of the payment

Our company delivers the Heat Shrink Tubing BusBar according to the payment specified by the customer.

Busbar Insulating Tubings Customized Services

Product installation

1. Preparation: Make sure the work area is dry and tidy, and prepare the necessary tools, such as hot air guns, wire strippers, insulating tape, etc.

2. Busbar processing: Clean the Heat Shrink BusBar surface, remove impurities such as oil, dust, etc., and ensure that the heat shrink tube can fit tightly.

3. Heat shrink tube installation: Put the heat shrink tube on the busbar to ensure that the part that needs insulation is covered. Use a hot air gun to evenly heat the heat shrink tubing so that it shrinks tightly and fits the busbar.

4. Check the insulation effect: After heating, carefully check whether the heat shrink tubing is completely shrunk without bubbles, wrinkles or damage. If necessary, use insulating tape for additional fixation.

5. Safety test: After installation, perform necessary electrical safety tests to ensure that the insulation performance of the Busbar Sleeves Insulation meets relevant standards.

Insulation Busbar Flexible Connection Details

contact us

Choosing our PVC Insulation Busbar products, you not only get a high-quality product, but also a reliable and flexible partner. We look forward to establishing a long-term cooperative relationship with you and developing together. Click on the business card below to learn more!
