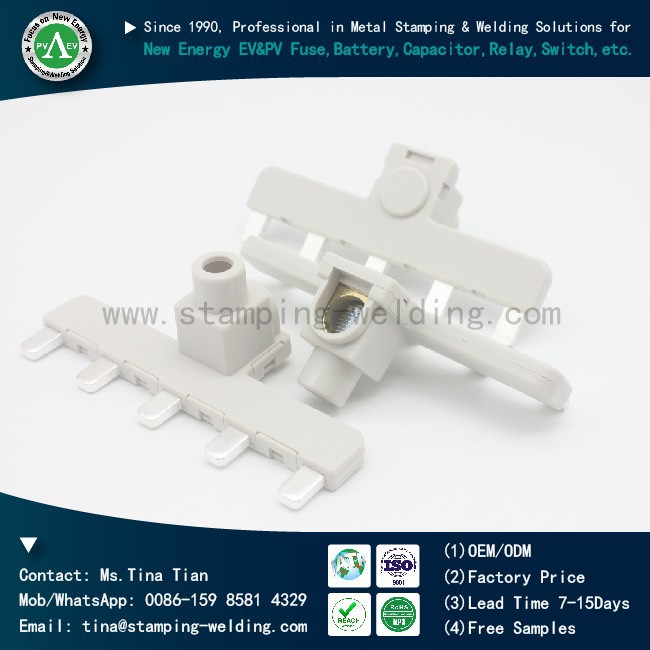

Injection-Molded 5-pin Busbar



Injection-Molded 5-pin Busbars are advanced electrical connection components combining high conductivity, insulation protection, and structural strength. The product features high-quality copper as the conductive core, and advanced injection molding technology encases it with a Plastic Insulated Conductive Bar, forming a unique Insulated Protection Busbar. This design not only ensures efficient current transmission but also isolates the internal conductive elements from environmental corrosion through a Plastic Encased Busbar, enhancing overall system safety and reliability.









High Efficiency Conductivity	The selected copper material ensures low resistance and high conductivity, allowing for quick and stable power transmission within the system.
Insulation Protection	The outer plastic insulation layer provides excellent electrical insulation, preventing short circuits and leakage while resisting moisture, corrosive gases, and other environmental factors.
Structural Strength	The injection molding process tightly bonds the insulation layer with the copper core, enhancing the busbar's mechanical strength to withstand mechanical stress and vibration.
Flexible Connections	The five-pin design offers multiple connection options, facilitating flexible integration with other electrical components to meet diverse application needs.





1. Material Preparation:

High-purity copper is selected as the conductive core, and environmentally friendly plastic pellets are prepared for insulation.

2. Mold Design:

Precision molds are designed and manufactured according to product specifications to ensure accurate and consistent shapes.

3. Injection Molding:

Plastic pellets are heated and melted, then injected under high pressure into the mold, bonding with the copper core to form the complete busbar structure.

4. Quality Testing:

The molded busbars undergo rigorous quality testing, including electrical performance, insulation properties, and mechanical strength tests.

5. Packaging and Storage:

Passed products are carefully packaged with product labels and instructions, then stored in a warehouse awaiting shipment.





Transportation：

To ensure the safety of Injection-Molded 5-pin Busbars during transportation, we use professional packaging and shipping solutions. Products are placed in shock-proof, moisture-proof, and dust-proof boxes, with reinforcement materials to secure them. We collaborate with logistics companies to provide real-time tracking services, ensuring safe and timely delivery to customers.





Inspection Methods：

Various inspection methods are used during the production of Injection-Molded 5-pin Busbars to ensure quality. Automated inspection equipment on the production line monitors electrical and insulation performance in real time. Before products are stored, we conduct sampling tests including visual inspections, dimensional measurements, and mechanical performance tests. We also accommodate third-party inspection requests to meet specific customer quality standards and requirements.





We recognize the importance of environmental protection and sustainability, thus adhering to green production principles during the manufacturing of Injection-Molded 5-pin Busbars. Plastic materials used meet international environmental standards, being non-toxic, harmless, and recyclable. Waste and by-products from the production process are categorized, processed, and recycled. We are committed to reducing energy consumption and emissions through technological innovation and process improvements, contributing to sustainable development





Looking forward to your Inquiry!



As a high-efficiency electrical connection component with conductivity, insulation protection, and structural strength, Injection-Molded 5-pin Busbars have broad applications in electric vehicles, renewable energy generation, and industrial automation. We employ advanced injection molding technology and rigorous quality control systems to ensure product quality and performance stability. We also emphasize environmental protection and sustainability, aiming to provide greener and more eco-friendly electrical connection solutions. Moving forward, we will continue to enhance technological innovation and research investment, offering more advanced, efficient, and eco-friendly electrical connection products to support customer success and industry advancement.
