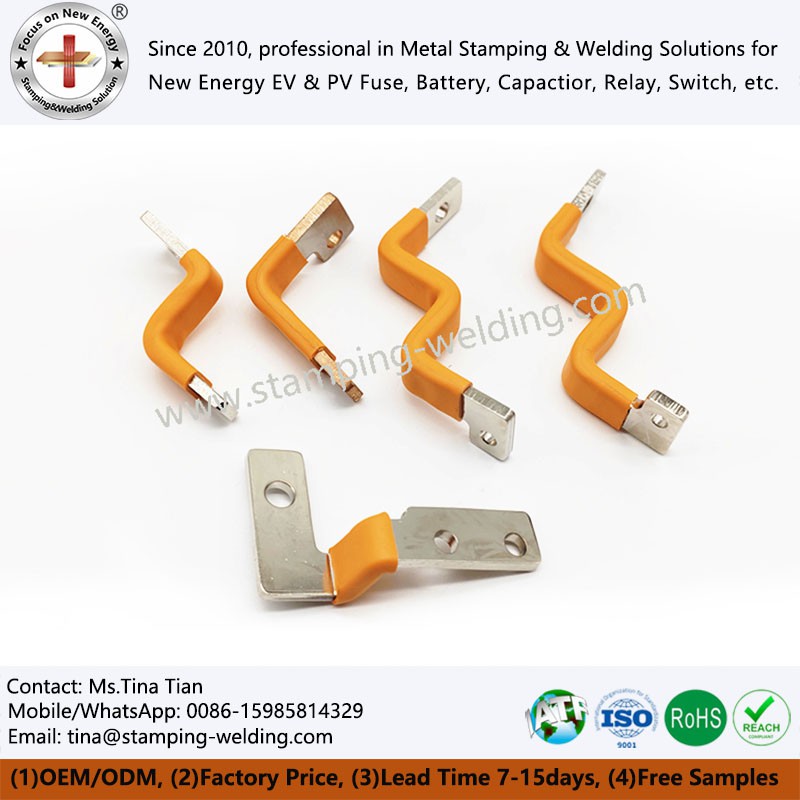

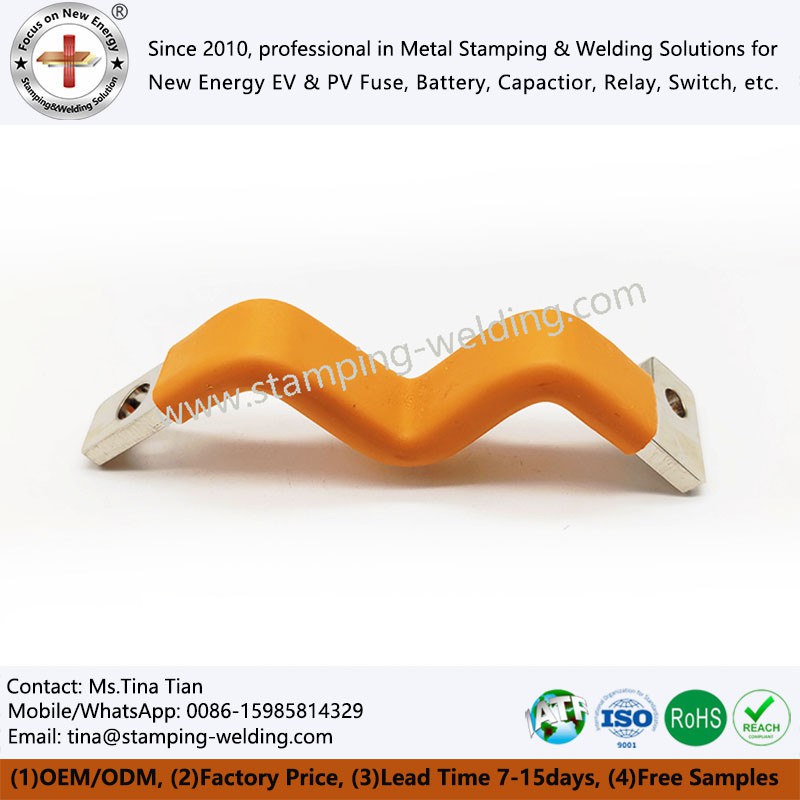

PVC Dipped Insulated Bus Bar
A PVC Dipping Insulated Busbar is an electrical component widely used for power distribution in various applications, especially in low- and medium-voltage electrical systems. It features a metal conductor, usually made of copper or aluminum, which is coated with a layer of PVC (Polyvinyl Chloride) insulation using a dipping method. This coating serves to offer electrical insulation, enhance corrosion resistance, and improve overall durability.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Products Description
| Products Name | PVC Dipped Insulated Bus Bar |
| Insulation Methods |
Plastic Dipping |
|
Dimensions |
OEM\ODM as your drawing |
| Certifications |
ISO9001, IATF16949, RoHS, Reach, etc. |
| Applications |
EV/HEV, PV, UPS, Communication, Industrial Power, Web Server, Rail Transit, etc |
|
Shipping Methods |
By Air/Sea/Train,Express (DHL/UPS/TNT FEDEX, etc) |
Products materials
PVC-dipping insulated busbars offer a reliable and cost-effective solution for electrical distribution systems that require both high electrical performance and safety. The materials used, particularly the conductive base metal and the PVC insulation, provide an ideal combination of electrical conductivity, insulation, and mechanical protection. With their widespread applications across industries, these busbars play a crucial role in ensuring the safe and efficient operation of electrical systems.
1. Base Metal (Conductive Material):
The core material of a busbar is typically a high-conductivity metal, such as copper or aluminum. These metals are used for their excellent electrical conductivity, which allows the busbar to carry high amounts of electrical current with minimal energy loss. Copper is often preferred in applications where high conductivity and corrosion resistance are essential, while aluminum is used where weight and cost are more critical.
2. PVC (Polyvinyl Chloride) Insulation:
PVC is a synthetic plastic polymer that is used for insulation due to its good electrical insulating properties, durability, and cost-effectiveness. The PVC layer provides insulation to prevent electrical shorts, protect personnel from accidental contact with live parts, and improve the mechanical strength of the busbar. The PVC used in the dipping process is often modified to improve its performance under various environmental conditions such as temperature, humidity, and chemical exposure.
Products application
Below are some of the main application areas of our Dip Insulated Busbars：
Low- and Medium-Voltage Switchgear
In electrical distribution panels for homes, offices, factories, or other facilities.
01
Electrical Equipment
For powering machinery and control systems, providing a safe, insulated method of conducting electricity.
02
Panel Boards
In power distribution panels where busbars are used to connect different circuit breakers, ensuring power distribution.
03
Busbar Trunking Systems
Used for efficient power transmission in large buildings, industrial complexes, and substations.
04
Transformers
As part of the primary or secondary distribution of power.
05
why choose us
Our company has been deeply engaged in this industry for many years and has accumulated very rich experience. Our factory uses very high quality raw materials and high-end production equipment, and strictly follows the relevant production standards, so that we have obtained a variety of certificates in the industry. Our Plastic Dipping Copper Busbars and services are sure to make you satisfied. The following are some of our certificates pictures:
contact us
