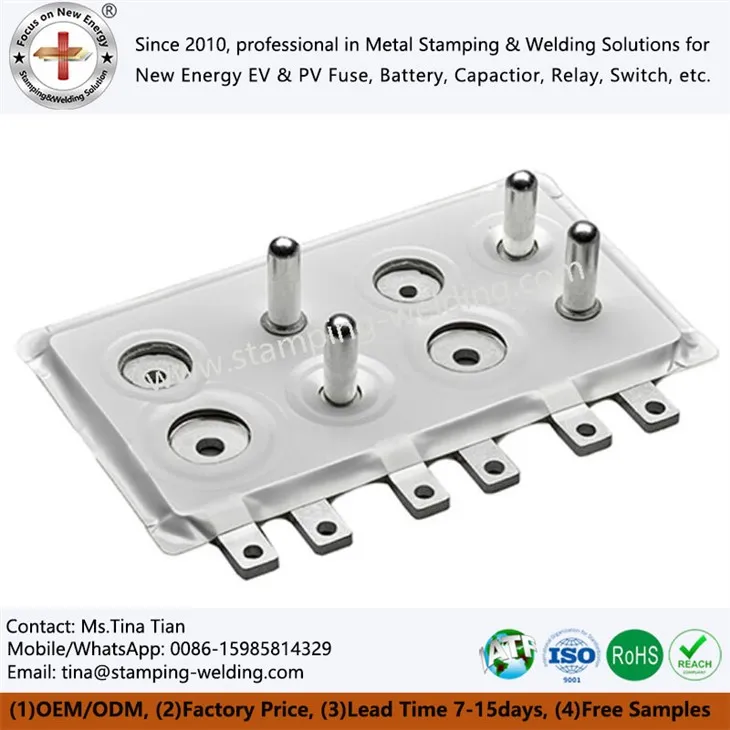

Conductive Laminated Busbar

Conductive Laminated Busbar is a high-performance, high-safety electrical connection component that integrates modern material science with precision processing technology, designed specifically for high current and high voltage transmission in power systems. Centered around the concept of Protective Laminated Busbar, it ensures stable electrical performance and enhanced safety through multilayer material composites and special insulation treatments. Its core structure is typically made of high-conductivity Copper BusBar, while the outer layer is covered with an insulation layer, forming a unique insulated busbar construction that effectively prevents electrical short circuits and electrical shock risks. Additionally, Conductive Laminated Busbar is also known as Laminated Electrical Busbar or Laminated Current Busbar, emphasizing its laminated structure and excellent current-carrying capacity.







The production process of Conductive Laminated Busbar is rigorous and complex, involving the following key steps:

1. Material Preparation: Select high-purity electrolytic copper for the conductive layer to ensure excellent electrical performance and corrosion resistance. Appropriate insulation materials, such as epoxy resin and polyimide, are also prepared for the outer insulation treatment.

2. Precision Processing: Copper materials are precisely cut and stamped to the desired shape and size to form the conductive core layer. This process requires high precision and surface smoothness to ensure reliable electrical connections.

3. Laminating Composite: The processed copper conductive layer is laminated with insulation layers using high-temperature and high-pressure laminating technology to form a multilayer structure. The laminating process requires strict control of temperature, pressure, and time to ensure strong adhesion and insulation performance between layers.

4. Insulation Treatment: Further coating or wrapping insulation material on the outer surface of the composite layer to form a continuous insulation layer, enhancing the overall safety protection level of the product.

5. Quality Inspection: Conduct stringent quality inspections on finished products, including electrical conductivity, insulation resistance, and voltage endurance tests to ensure that each batch meets standard requirements.

6. Packaging and Storage: Qualified products are packaged with dust and moisture protection, clearly marked with product information and usage guidelines, and then stored for sale.





High Conductivity: Utilizes high-quality electrolytic copper as the core material to ensure low resistance and high-efficiency current transmission.

Excellent Insulation: Multilayer insulation design effectively isolates electrical components, enhancing system safety.

High Strength and Stability: Laminating composite technology provides the product with outstanding mechanical strength and thermal stability, suitable for various harsh working environments.

Ease of Installation and Maintenance: Standardized design and convenient installation interfaces reduce construction difficulty and maintenance costs.

Customized Services: Provides customized products in different sizes, shapes, and performance specifications according to customer needs.







Conductive Laminated Busbar is widely used in various scenarios requiring efficient and safe current transmission, including but not limited to:

Large Power Plants and Substations: Used as main or branch busbars connecting generators, transformers, and other key equipment.

Industrial Production Lines: Applied in automated production lines for power distribution and control, ensuring smooth production processes.

Data Centers and Communication Bases: Provides stable power support for servers and communication equipment, ensuring efficient data transmission and processing.

Rail Transit Systems: Handles power transmission tasks for traction and signal control in subway and high-speed rail systems.

New Energy Fields: Serves as an important component in power collection and distribution in solar power stations, wind farms, and other renewable energy installations.
