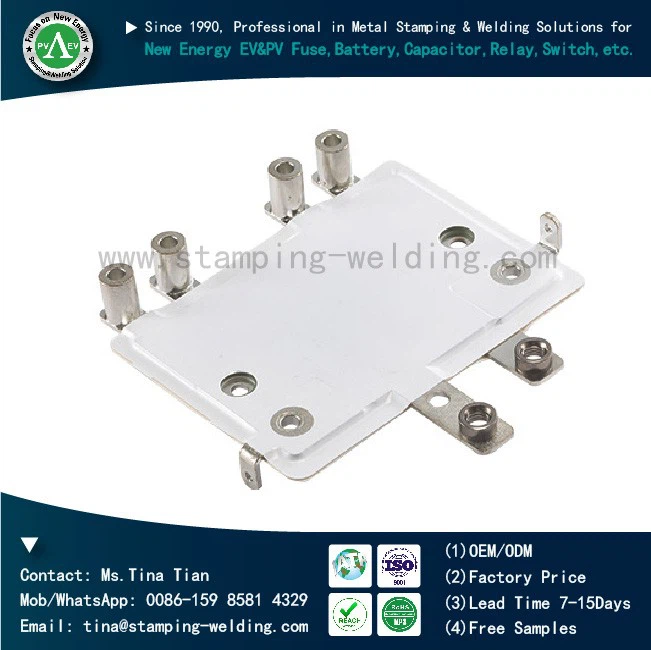

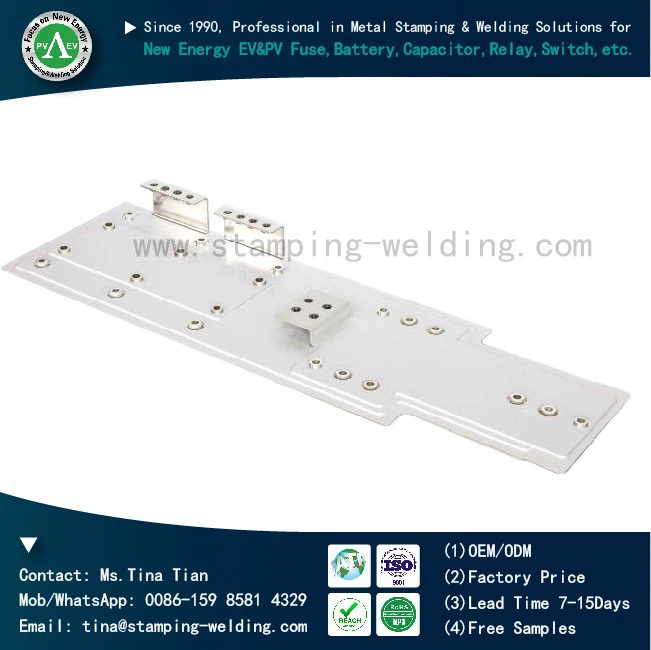

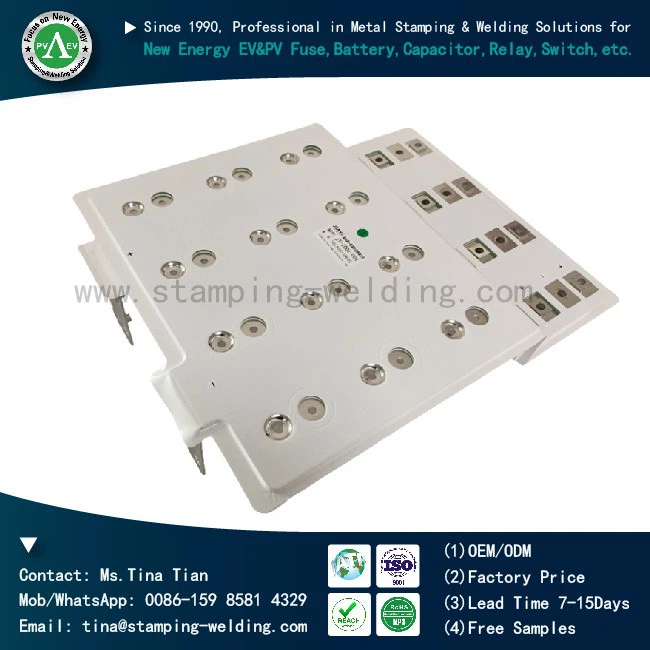

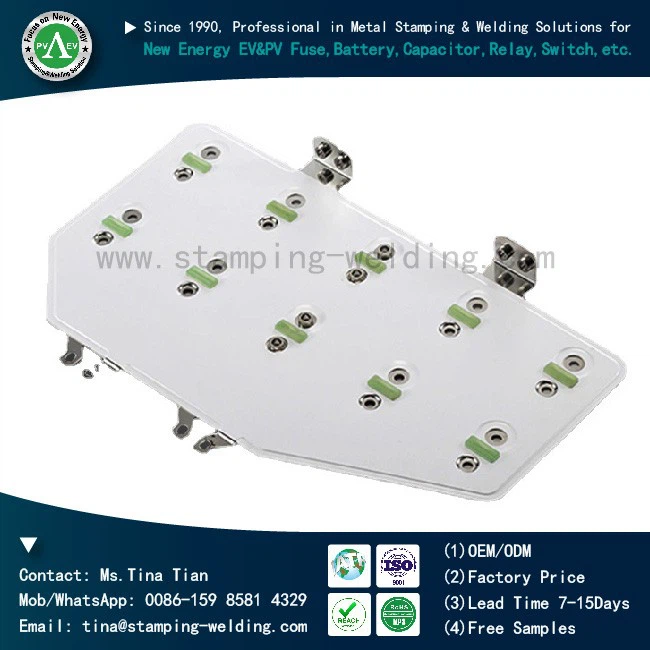

Low Inductive Laminated Busbar For DC Link
Our Low Inductive Laminated Busbar for DC Link—a compact solution revolutionizing power electronics connectivity. Specifically designed to connect active power modules and passive components like capacitors within high-power converters, this busbar excels in high-frequency applications. Its cutting-edge low inductance design minimizes energy losses and heat generation, setting a new standard for efficiency. Upgrade your high-power converter systems with the seamless connectivity and performance optimization of our Low Inductive Laminated Busbar. Embrace a new era in power electronics.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Products Description
Introducing our groundbreaking innovation in power electronics – the Low Inductive Laminated Busbar for DC Link. As the demand for higher efficiency and reduced losses continues to shape the landscape of energy conversion systems, our cutting-edge busbar design addresses a critical need in this space. Engineered to excel in high-frequency applications with rapid switching, our Low Inductive Laminated Busbars (LIB) offer a transformative solution to traditional inductance challenges. This product introduction aims to showcase the significance of our LIB in DC link applications, emphasizing its role in minimizing energy losses and heat generation. Through a meticulous focus on low inductance design principles, our busbars stand poised to revolutionize power electronics, providing a reliable and efficient solution for the evolving demands of the industry.
Products Advantages
- Cost Savings and Simplified Wiring
One of the standout benefits of our Low Inductive Laminated Busbar for DC Link is its streamlined design, leading to substantial cost savings. The simplified form of wiring ensures error-proof assembly, reducing both material and labor costs.
- Mechanical Properties for Enhanced Compactness
Incorporating mechanical support and acting as a back plate, our busbar enhances the structural integrity of your system. Its compact design allows for space optimization, while meeting ultra-low creepage/clearance requirements, ensuring reliability and efficiency in high-power converters.
- Electrical Properties for Optimal Performance
The key strength lies in its electric properties. The Low Inductive Laminated Busbar for DC Link boasts low inductance levels, facilitating high-frequency switching and optimizing overall system efficiency. By limiting skin effects, it ensures a stable and consistent electrical performance. Additionally, improved heat management, thanks to a larger convective surface, makes it an ideal choice for high-power density systems, scaling seamlessly from 50 kW to MW applications.
Products Functions
- Conductive Pathway
The Low Inductive Laminated Busbar for DC Link serves as a robust conductor, facilitating the connection between active power modules and passive components like capacitors within the DC link. This streamlined connectivity minimizes energy losses, contributing to overall system efficiency.
- Low-Inductance Design
A key function of the busbar is its ability to mitigate inductance levels. The low-inductance design enables seamless high-frequency switching, optimizing DC link performance and enhancing energy efficiency.

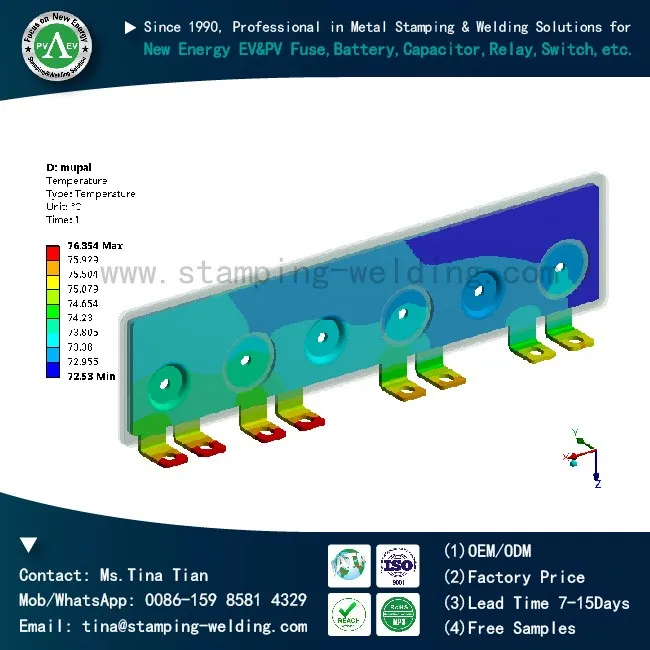

- Heat Management
The busbar functions as a heat management solution. Its design incorporates a larger convective surface, allowing for better heat dissipation. This feature is particularly beneficial in high-power density systems, ensuring effective thermal management for sustained performance.
Applications of the Low Inductive laminated busbar in DC link systems
- In Power Converters
The primary application of the Low Inductive Laminated Busbar lies in power converters, where it acts as a crucial component in the DC link. Its low-inductance design facilitates efficient energy transfer and minimizes losses during high-frequency switching, contributing to the overall performance improvement of power converters.
- Renewable Energy Systems
Within renewable energy systems such as solar inverters and wind turbine converters, the Low Inductive Laminated Busbar proves instrumental in connecting active power modules and passive components within the DC link. This ensures optimal energy conversion efficiency, a critical factor in maximizing the output of renewable energy sources.
- Electric Vehicles (EVs)
The application of the Low Inductive Laminated Busbar extends to electric vehicles, specifically in the DC link of power electronics systems. Its low-inductance characteristics are particularly beneficial in this context, enabling rapid and efficient energy transfer, ultimately enhancing the performance and range of electric vehicles.
- Industrial Motor Drives
In industrial applications involving motor drives, the Low Inductive Laminated Busbar is employed to streamline connectivity within the DC link. Its low inductance allows for smooth high-frequency switching, contributing to improved efficiency and reliability in industrial motor drive systems.
Other products

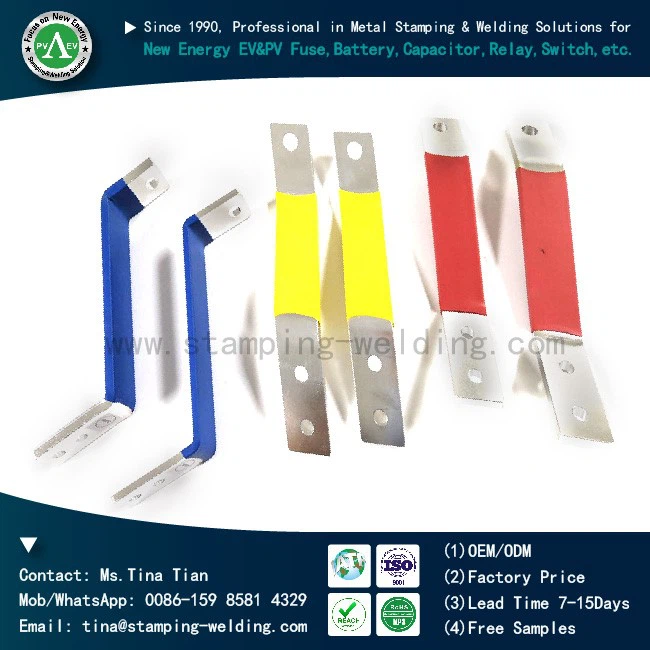

Please Click here : https://www.stamping-welding.com/busbar/copper-busbar/epoxy-powder-coated-busbar.html
