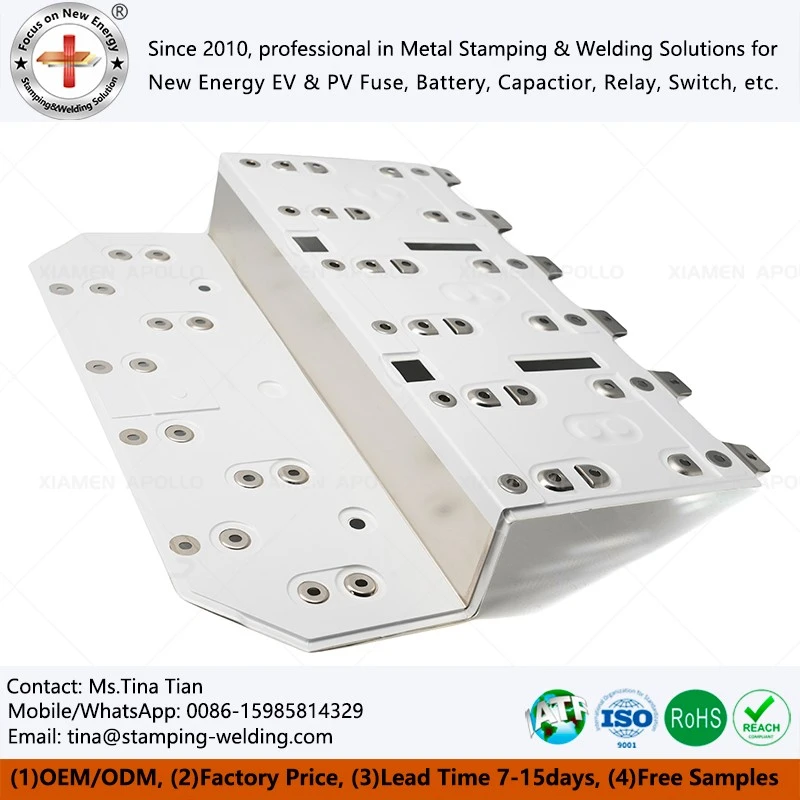

Multi-Layer Composite Structure Connection Bar
The Multi-Layer Composite Structure Connection Bar—also known as a laminated busbar or composite busbar—is a high-performance electrical interconnection component manufactured through the precision lamination of multiple conductive layers and insulating media. Compared to traditional single-layer copper busbars, laminated busbars optimize current transmission paths by stacking multiple conductive and insulating layers according to design specifications; this results in lower parasitic inductance, a more compact structure, superior electrical reliability, and improved space utilization. These products are primarily used in UPS systems, data center server power supplies, energy storage power conversion systems (PCS), new energy power equipment, industrial power modules, and high-power electronic devices, where they perform critical functions such as power transmission, current distribution, and module interconnection.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
As cutting-edge, precision components for high-frequency, high-current power distribution systems, our Multi-Layer Composite Structure Connection Bars demonstrate advanced engineering in both physical form and mechanical design:

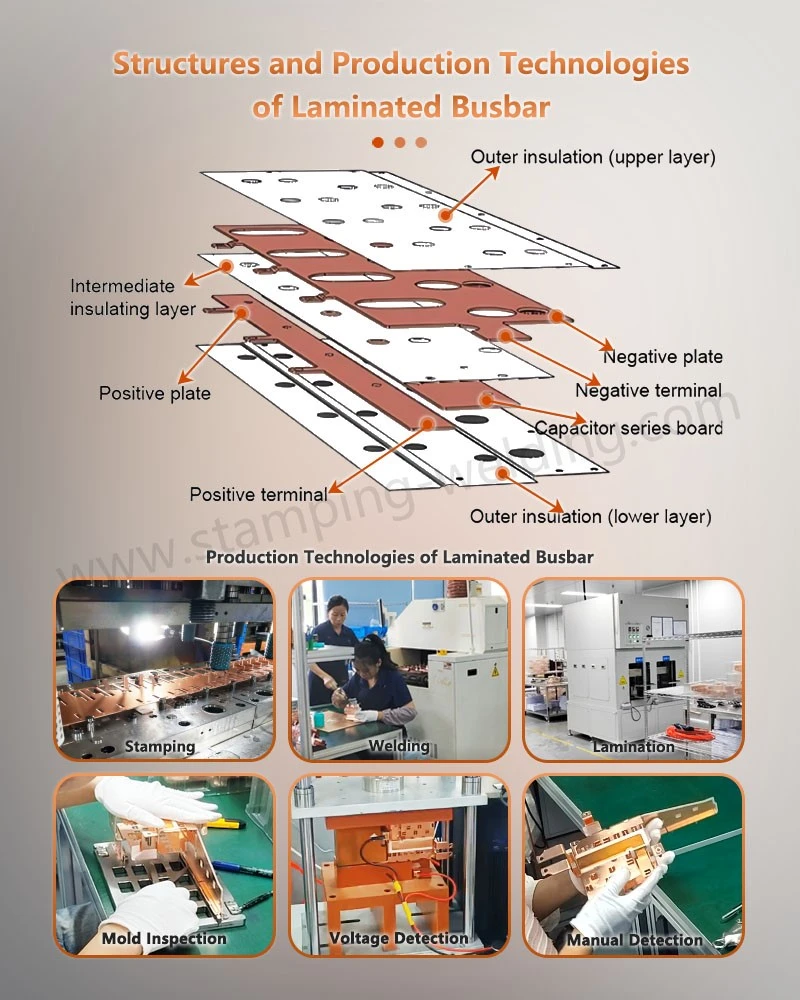

Multi-Layer Parallel Architecture: The product features a stacked configuration of precision-stamped conductive layers (high-purity copper or aluminum) interleaved with ultra-thin, high-dielectric-strength insulation materials bonded via specialized hot-melt adhesives. The resulting flat, compact profile overcomes the spatial constraints associated with traditional cabling.
Low-Inductance Mechanism: When current flows in opposite directions through adjacent conductive layers, the resulting magnetic fields effectively cancel each other out. This unique spatial arrangement of materials and current flow paths drastically reduces internal parasitic inductance, delivering low-inductance characteristics unmatched by conventional power distribution methods.
Key Features and Application Advantages: Unleashing Peak UPS Performance
Drastic reduction of parasitic inductance and protection of power components
A laminated design with ultra-low inductance absorbs voltage spikes generated by high-frequency IGBT switching, thereby extending the lifespan of power semiconductors and reducing the cost of snubber circuits.
Enhanced heat dissipation and lower temperature rise
The large-surface-area parallel Laminated Bus Bar for Distributing Power Backplane structure acts like a massive heat sink; compared to round cables, it offers a superior surface-area-to-volume ratio, enabling more efficient dissipation of Joule heat from connection points and improving the thermal environment within the UPS.
Modular assembly and error-proof design

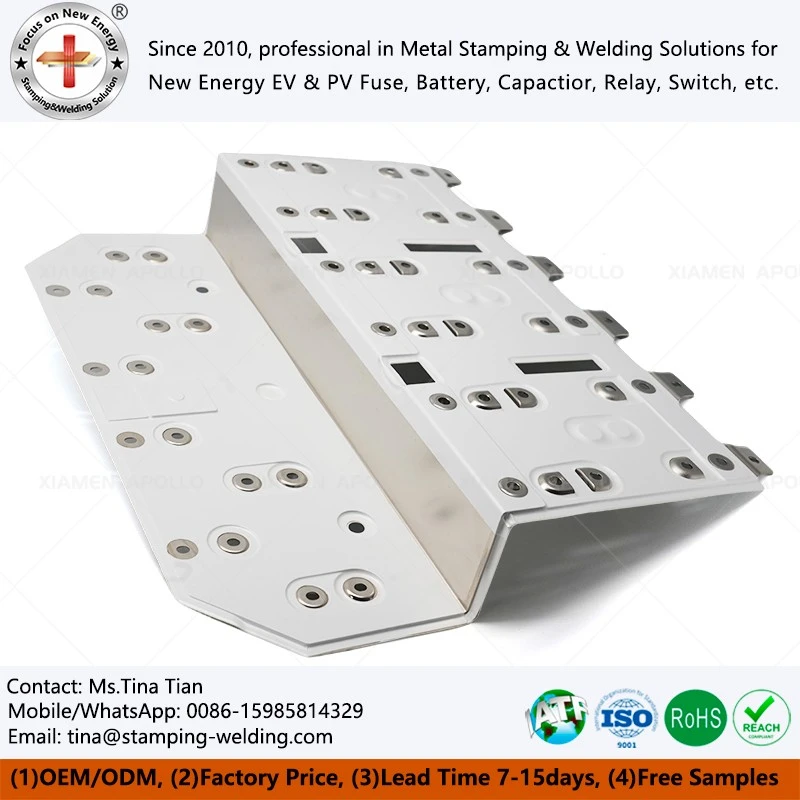

The Laminated Bus Bar for Router Backplane Distribution is shipped as a single, integrated unit that mounts directly onto the UPS chassis using just a few bolts. Featuring built-in mechanical alignment, it allows workers to complete all main circuit electrical connections simply by aligning the mounting holes.
Detail Highlights: Micron-level precision defining engineering quality

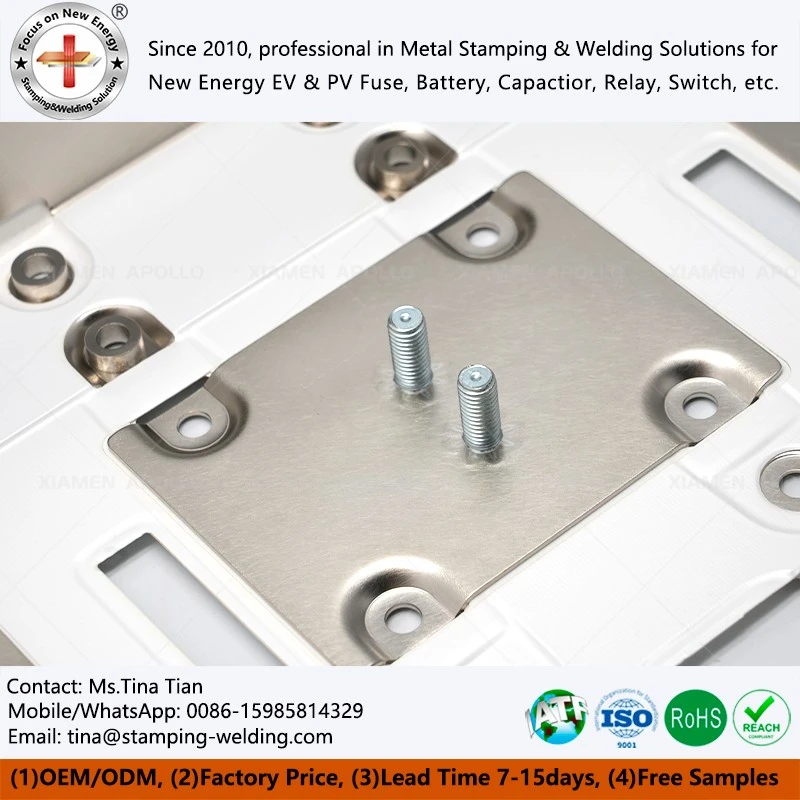

Gap-free interlayer bonding
Following the hot-pressing process, the insulation and conductor layers are perfectly bonded, free from microscopic voids or delamination. This characteristic is a decisive factor for the Power Distribution Unit BusBar's partial discharge levels and long-term insulation lifespan.
Uniformity of conductor surface treatment
Silver, tin, or nickel plating layers are uniform and consistent, with no exposed base material or peeling. The surface quality in connection areas directly impacts contact resistance and long-term current-carrying stability.
Precision of mounting holes
All mounting and positioning holes undergo precision CNC machining, with hole location tolerances strictly controlled. This precision ensures rapid, zero-adjustment installation on automated assembly lines for UPS and server power supplies.
Edge sealing
Various edge treatment options-such as hot-pressed edge sealing, hot-pressing without edge sealing, or hot-pressing with edge potting-are available to meet specific customer requirements. Edge sealing further enhances the insulation system's moisture resistance and dielectric strength.
Manufacturing Strengths: Comprehensive Capabilities from Simulation to Delivery
Electromagnetic-Thermal-Mechanical Multiphysics Simulation

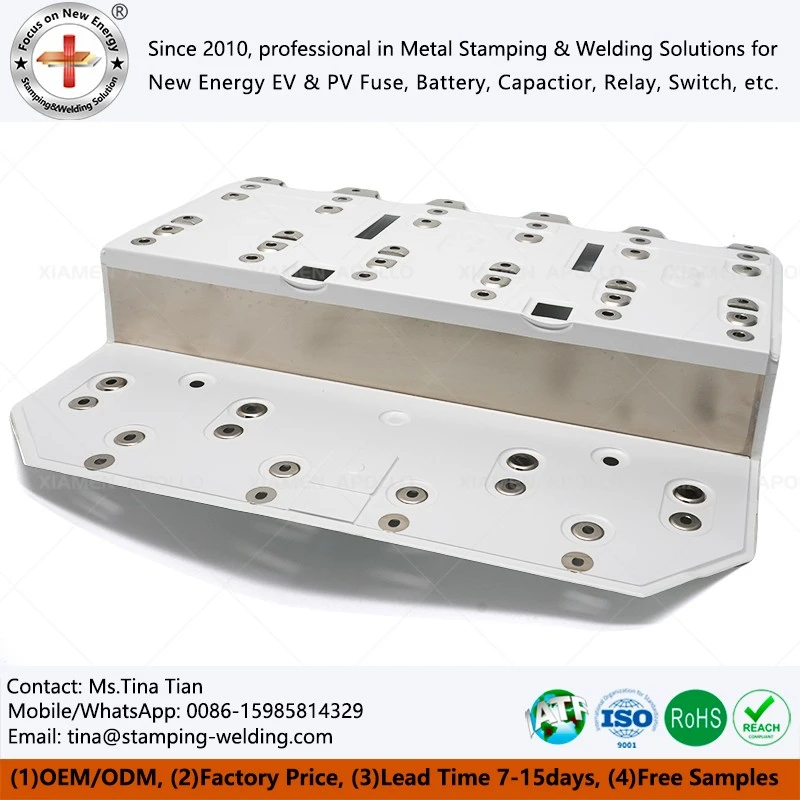

During the design phase, we provide complimentary SI/PI simulation analysis to predict Laminated Bus Bar for Telecom Power Distribution parasitic parameters, temperature rise distribution, and short-circuit electromagnetic forces, enabling the early mitigation of design flaws.
01
Flexible Production Lines
We operate a full suite of equipment ranging from manual hot-press stations for prototyping to continuous hot-press machines for mass production. This setup supports rapid prototyping for low-volume, high-mix orders (with samples ready in 3–5 days) while ensuring stable delivery for large-scale orders.
02
End-to-End Testing Capabilities
Our facilities are equipped with high-voltage withstand testers (AC/DC), insulation resistance testers, loop inductance testers, and X-ray inspection systems. Every Laminated Low Inductive Bus Bar undergoes 100% high-voltage testing and visual inspection before shipment.
03
Material Traceability
All Customized Laminated Busbar for IGBTs, insulation films, and solder materials come with detailed batch records and Material Test Certificates (MTC), ensuring full compliance with RoHS and REACH environmental directives.
04
contact us
For manufacturers of UPS systems, server power supplies, and energy storage equipment, selecting a supplier of Laminated Busbars for complex Busbar Installations-one possessing capabilities in material control, precision manufacturing, and collaborative engineering-is crucial for ensuring product reliability and efficient project delivery.
We offer customized multi-layer composite busbar solutions tailored to your equipment's structural and electrical specifications, leveraging our manufacturing expertise to support your needs for the development and mass production of high-reliability power systems.
