95% Alumina Ceramic

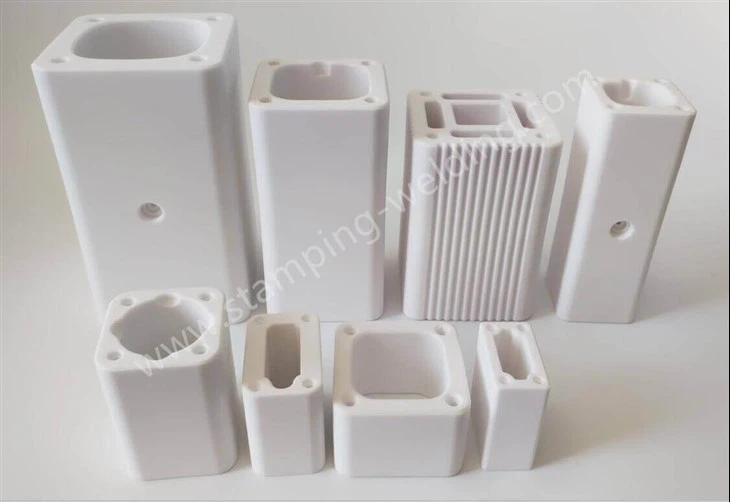

The new energy vehicle fuse ceramic body has several key performance requirements that must be met to ensure safe and reliable operation. Here are some of the key performance requirements that the new energy fuse ceramic body needs to meet:
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
1-Products Name: 95% Alumina Ceramic
2-Model No: WSAT-CERAMIC-23050407
3-Ceramic Parameters:
(3.1)Optional Material: C221, C610, C620, Alumina(Al2O3, 75%-99.9%), Steatite, Cordierite, Mulite,etc.
(3.2)Purity Material: Range from 40% to 99%
(3.3)Ceramic Density: Over 3.65g/cm3
(3.4)Compressive Strength: 2000-2500 Mpa
(3.5)Working Temperature: 1500-1800 °C
(3.6)Ceramic Colors: White, Ivory, pink, black
(3.7)Ceramic Shape: Round, square, oval, half tube
(3.8)Precision Tolerance: Od to be +/-0.05, ID to be +/-0.10mm
(3.9)Surface Treatment: Polished, glazed available
(3.9.1)Forming Methods: Extrusion, ISO pressed, dry pressed
(3.9.2)-Secondary Processing: Fine grinding, threaded
4-Ceramic Characteristic:
(4.1)High temperature stability
(4.2)Low coefficient of thermal expansion
(4.3)High mechanical strength
(4.4)Good insulation properties
(4.5)High purity and corrosion resistance
5-Fuse Ceramic' Applications:
Our Fuse Ceramic Bodies are suitable for new energy vehicle fuses, photovoltaic fuses, energy storage fuses, low voltage fuses(NH00C, NH00, NH1, NH2, NH3), power high voltage fuses,etc.Fuse Ceramic Bodies Standards are ISO/IEC/BS,etc.
6-Customized Logo: MOQ 10,000pcs/item
7-Free Samples: 1-10pcs is allowed
8-Lead Time: Orders 7-10days,Samples 20-25days
9-Exporting Packing: Pearl cotton protective independent packaging inside,carton/pallet outside
10-Certifications: ISO9001,IATF16949,RoHS,REACH,etc.
11-Production Capacity: 10,000,000 pcs/month
What are the key performances that the new energy fuse ceramic body needs to meet?
The new energy vehicle fuse ceramic body has several key performance requirements that must be met to ensure safe and reliable operation. Here are some of the key performance requirements that the new energy fuse ceramic body needs to meet:
1-High temperature resistance: The new energy vehicle fuse ceramic body must be able to withstand high temperatures generated by the high power electrical systems used in new energy vehicles.
2-High voltage resistance: The ceramic body must have a high voltage resistance to prevent electrical arcing and damage to other components.
3-High mechanical strength: The fuse ceramic body must be mechanically strong enough to withstand the forces generated by the fuse element when it melts during an overload condition.
4-Low thermal expansion coefficient: The EV fuse ceramic body must have a low coefficient of thermal expansion to avoid cracking or degrading due to the high temperature changes during operation.
5-Good thermal shock resistance: The Ceramic Body for Auto Fuses must have good thermal shock resistance to withstand sudden temperature changes.
6-Chemical stability: The Ceramic Body for Fast Fuses must be chemically stable to resist the chemicals and gases present in the environment where the fuse is installed.
7-High insulation resistance: The Ceramic Body for Automotive Fuses must provide a high level of electrical insulation to prevent current from leaking out of the fuse and causing damage to the surrounding components.
8-High fracture toughness: The Fusing Electronic Ceramic must have a high fracture toughness to prevent damage from mechanical stresses or impacts.
9-Low dielectric loss: The Ceramic Tube for Energy Storage Fuse must have a low dielectric loss to avoid energy loss in the electrical system.
Overall, the key performances that the new energy fuse ceramic body needs to meet are focused on providing reliable and safe operation in the high-power electrical systems used in new energy vehicles. Manufacturers need to carefully control the manufacturing process and materials used to ensure that the ceramic body meets these performance requirements and provides the best possible protection for the electrical system and passengers.
