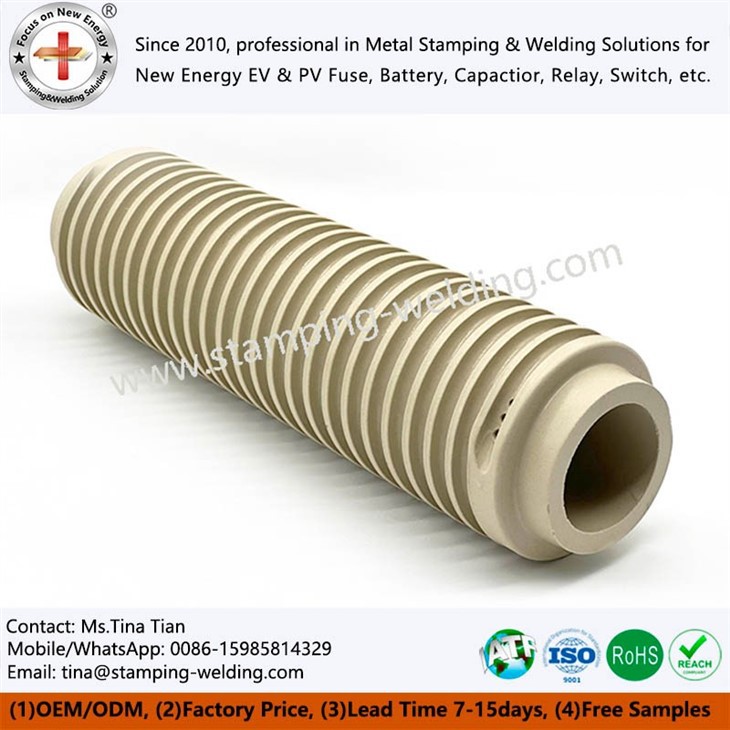

Corrugated Ceramic Tube
In high-end industrial sectors, traditional straight ceramic tubes often face challenges in coping with complex stresses and thermal expansion due to their brittleness and lack of flexibility. Our corrugated ceramic tubes are precision components that integrate high-purity inorganic materials with biomimetic mechanical structures. By constructing continuous corrugated geometric features on the tube wall surface, we endow the originally rigid ceramic with "controllable elasticity" and "a very large heat transfer surface area," making it an irreplaceable core hardware in the semiconductor, aerospace, military, and high-end chemical industries.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
In high-temperature industrial furnaces, precision heat treatment equipment, and semiconductor manufacturing, traditional straight-tube ceramic components often fall short when facing complex installation environments characterized by severe thermal expansion and contraction, mechanical vibration, or limited space. The advent of the Corrugated Ceramic Tube has completely changed the traditional perception of ceramic materials as "brittle and hard." As an engineering masterpiece bridging materials science and structural mechanics, the corrugated ceramic tube, by introducing a precise corrugated geometry into its wall, maintains the original high-temperature resistance, corrosion resistance, and high insulation properties of ceramic materials while endowing the tube with axial flexibility and expansion/contraction compensation capabilities. It is not merely a protective tube, but a key engineering component for alleviating thermal stress, enhancing heat exchange efficiency, and achieving flexible connections in high-temperature thermal fields.
Key Features: A Material Philosophy of Balancing Rigidity and Flexibility
Unique Corrugated Geometry
The corrugated structure endows the pipe with excellent radial compressive strength and a certain degree of axial flexibility, effectively absorbing structural stress caused by drastic temperature changes.
Extremely High Heat Exchange Efficiency
The turbulence effect created by the corrugations breaks down the fluid boundary layer, significantly improving the heat transfer coefficient compared to smooth straight pipes of the same specifications.
Extreme Surface Density
Through vacuum high-temperature sintering, a near-zero porosity surface is formed, preventing the penetration and adhesion of any chemical media.

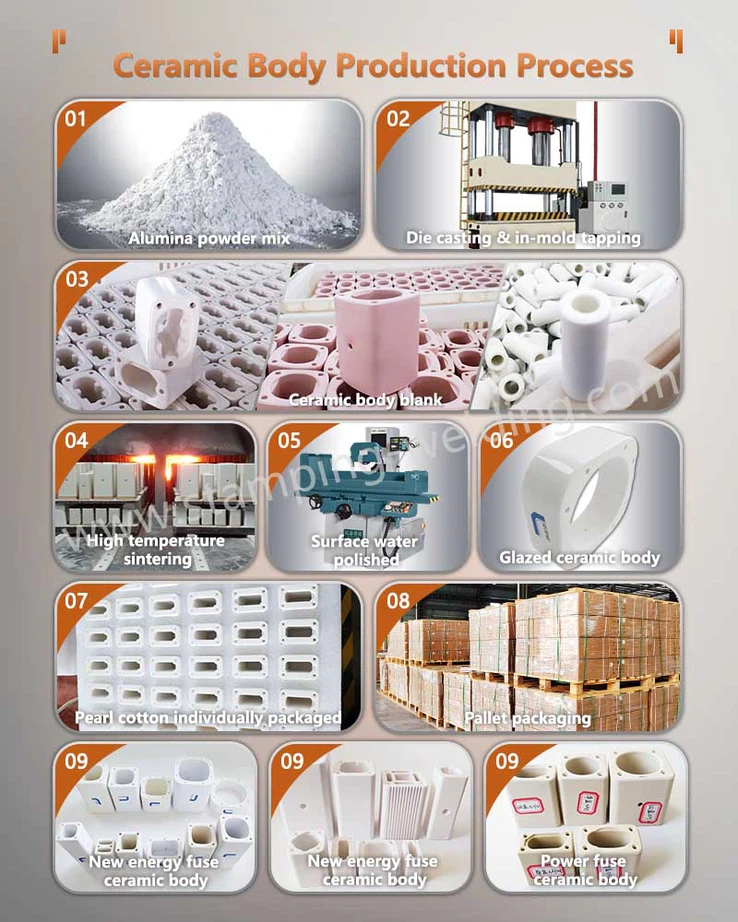

Manufacturing Advantages: Precision Control of Complex Molding Processes
Precision Extrusion Molding Technology
Utilizing a non-standard mold extrusion process, Ribbed ceramic fuse tube clay is extruded under high pressure through a mold with a corrugated profile. To ensure the clarity of the corrugations and surface smoothness, we strictly control the plasticity and moisture content of the clay, ensuring that the extruded tube has full corrugations without collapse.
Slip Casting
For large-diameter or non-standard corrugated tubes, we employ a high-pressure slip casting process. By optimizing the water absorption rate of the plaster mold and the slip formulation, the density of the corrugated section is made completely consistent with that of the straight wall section, avoiding sintering and bending caused by density gradients for the insulating corrugated ceramic sleeve.
High-Temperature Sintering and Crystallization Control
Corrugated tubes are highly susceptible to deformation during high-temperature sintering. We possess computer-controlled tunnel kilns and shuttle kilns. Through precise temperature zone settings and specialized refractory saggers, we ensure uniform heating of the corrugated pipes during firing, maintaining the corrugated geometry within extremely narrow tolerances.
Non-destructive processing and inspection
Addressing the brittle nature of Alumina corrugated ceramic tube pipes, we have developed specialized non-destructive fixtures for the corrugated areas, preventing damage to the corrugated edges during cutting, chamfering, and other processing. Simultaneously, we utilize ultrasonic flaw detection technology to inspect the roots of the corrugations for microcracks.
Application Advantages: Solving Engineering Challenges in Extreme Conditions
Photovoltaic and Semiconductor Manufacturing
In single-crystal silicon growth furnaces and semiconductor diffusion furnaces, corrugated tubes are used to isolate different temperature zones and compensate for thermal deformation of the furnace structure, ensuring the purity and temperature uniformity of the process environment.
01
Industrial Heat Treatment and Metallurgy
In continuous annealing furnaces and galvanizing lines, high-voltage corrugated ceramic fuse tubes, as roller radiant tubes or temperature measuring sleeves, can withstand temperatures above 1100℃ and frequent hot and cold cycles, significantly reducing furnace downtime and maintenance rates.
02
Aerospace and Defense
Used in aero-engine test benches and combustion chamber components of gas turbines. In extremely high temperature and high airflow scouring environments, corrugated tubes provide reliable thermal protection and electrical insulation for a corrugated ceramic insulation tube for a high voltage fuse.
03
Chemical and Environmental Protection Equipment
In high-temperature flue gas desulfurization and denitrification systems, they are used as measuring and lead-out pipes under high temperature and high-pressure differential environments, resisting abrasion from acidic gases and particles.
04
contact us
In cutting-edge manufacturing, every minute evolution in materials can lead to a qualitative leap in system performance. We understand that professional buyers are looking for more than just a component supplier; they seek a technical partner who understands complex operating conditions and shares the risks of R&D. We refuse to engage in homogeneous price competition in the low-end market. Instead, we provide long-term, reliable engineering assurance through continuous breakthroughs in the mechanical structure of ceramic materials.
You can inform our engineering team of your fluid pressure parameters or thermal balance calculation needs, and we will provide you with in-depth selection advice, from structural simulation to material customization.
