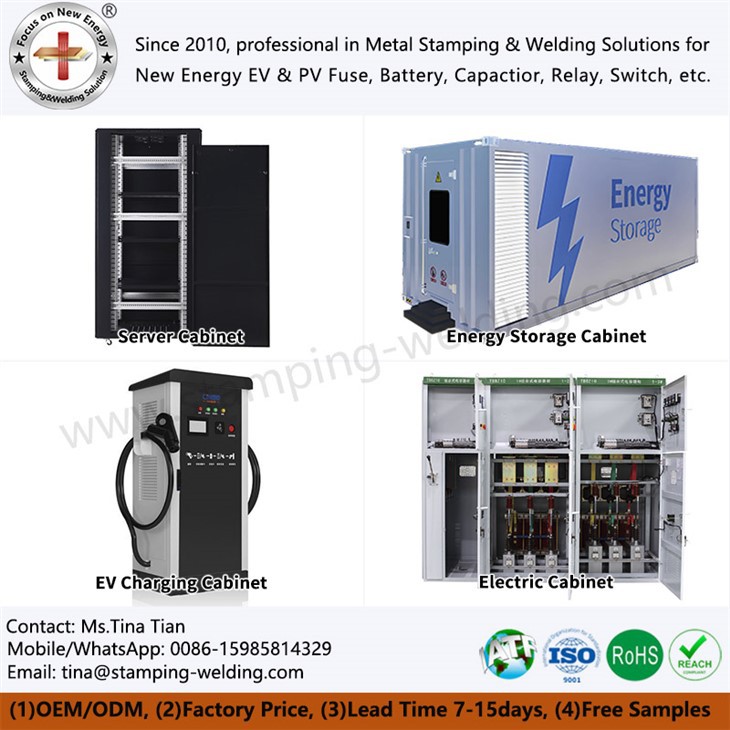

Electrical Cabinet



Xiamen Apollo focuses on the research, development, and production of Electrical Cabinets. Our main product lines include Server Cabinets, Energy Storage Cabinets, EV Charging Cabinets, and Electric Cabinets. Our service network spans the electric power sector, new energy industry, rail transit systems, industrial equipment manufacturing, and data center infrastructure. With core strengths in high conductivity, strong corrosion resistance, and customized service capabilities, we consistently deliver safe, reliable, efficient, and energy-saving electrical connection system solutions to customers worldwide.







1. Server Cabinet





























































1.1 Material and Features
Material: 1.5mm high-quality cold-rolled steel plate (surface electrostatic spraying, corrosion resistance up to C5 level)
Structure: Modular design, support front and back/left and right expansion splicing, compatible with 19-inch standard equipment.
Heat dissipation: Dual fan group on the top + honeycomb ventilation mesh, supports hot-swappable redundant power supply.



1.2 Technical parameters
Protection level: IP55
Load-bearing capacity: static load 1500kg, dynamic load 800kg
Working temperature: -20℃~60℃



1.3 Production process
(1) Cutting and forming: Fully automatic laser cutting machine (accuracy ±0.1mm) and CNC bending machine (repeat positioning accuracy 0.02mm) to ensure component consistency;
(2) Welding process: Robot argon arc welding (weld strength ≥ 90% of parent material), 100% penetrant flaw detection;
(3) Surface treatment: 7 pre-treatment processes (degreasing-water washing-pickling-surface conditioning-phosphating-passivation-drying) to ensure coating adhesion;
(4) Assembly quality inspection: full-size three-dimensional coordinate measuring machine (accuracy 0.01mm) + load bearing test (pressure test 20% over the design value).

















































































1.4 Application scenarios
Supercomputing Center: supports 42U/48U high cabinet customization, compatible with hot and cold channel closed system;
Edge computing node: A 600mm narrow and deep cabinet is suitable for small computer rooms and supports wall-mounted installation.
Financial-grade disaster recovery: 8-level earthquake-resistant design, equipped with dual-channel PDU (16A/32A optional) and intelligent environmental monitoring module;
5G base station: IP55 protection level, -40℃~70℃ wide temperature operation, ETSI EN 300 019 certified.



2. Energy Storage Cabinet





























































2.1 Material and characteristics
Fireproof design: double-layer flame retardant steel plate (A-level fireproof) + aerogel insulation layer, meeting UL94 V-0 standards.
Battery management: integrated BMS system, supporting remote monitoring and fault warning.
Scalability: Supports multiple cabinets in parallel, with flexible configuration of capacity from 100kWh to 10MWh.



2.2 Technical parameters
Cycle efficiency: ≥95%
Protection level: IP54 (outdoor type can reach IP65)
Working humidity: 10%~95% non-condensing



Project	Parameter	Comparison advantage of competitive products
Capacity compatibility	50kWh-3MWh modular expansion	Support multi-brand BMS protocol
Cycle life	≥6000 times @80%	15% lower attenuation rate
Energy density	160Wh/kg	20% ​​higher space utilization
Communication interface	CAN/RS485/Ethernet	Support remote OTA upgrade



2.3 Production process
Precision sheet metal forming → Fireproof coating treatment → Explosion-proof cable duct installation → System joint debugging → High and low-temperature cycle test.



2.4 Application scenarios and extended value
Extended business value
Industrial and commercial peak-valley arbitrage: through the intelligent EMS system, annual electricity bill savings
Emergency backup power guarantee: millisecond-level switching to meet the 99.999% power supply reliability requirements of hospitals/data centers;
Carbon asset appreciation: in line with IEC62933 certification, helping customers obtain carbon credit benefits.

















































































3. EV Charging Cabinet





























































3.1 Materials and Features
Protective design: 2.0mm aluminum zinc plate (no rust after 2000 hours of salt spray test), dustproof and waterproof dual certification.
Cooling solution: independent air duct + liquid cooling module to ensure full power operation at 45℃ high temperature.
Human-computer interaction: 10-inch industrial-grade touch screen, supports code scanning/card swiping/OTA upgrade.



3.2 Technical parameters



Project	Parameter range
Input voltage	AC 380V±15% / DC 750V
Output current	Maximum 500A (liquid cooling version)
Protection level	IP55 (optional IP65 customization)
Cabinet material	SGCC cold-rolled steel plate/304 stainless steel
Working temperature	-35℃~+55℃
Communication interface	CAN/RS485/Ethernet
Output power	60kW~480kW
Charging efficiency	≥92%
Protection level	IP65 (outdoor type)

















































































3.3 Production process
Laser opening → Sealing strip pressing → Lightning protection grounding treatment → Charging module integration → Full load impact test.



3.4 Application scenarios
Highway service areas, commercial complexes, and bus charging stations.
1. Highway fast charging station (high protection + anti-vibration)
Solution: 304 stainless steel cabinet + anti-seismic bracket (amplitude 2mm@10-500Hz), passed ISO 16750 automotive-grade vibration test

2. Urban fast charging station (beautiful + easy to maintain)
Solution: hidden charging gun storage + side door design (90° flat opening, maintenance space ≥800mm)

3. Old community renovation (lightweight + small volume)
Solution: aluminum alloy frame (30% lighter than stainless steel) + wall-mounted design (volume 0.8m³, traditional 1.2m³)
Value: save 30% installation space, suitable for 220V/380V dual power access



4. Electric Cabinet





























































4.1 Materials and Features
Insulation design: SMC composite material partition (arc resistance 15kV), copper busbar tinning treatment.
Intelligent: equipped with a smart meter + wireless communication module, real-time monitoring of energy consumption data.
Customization: supports various standard cabinet types such as GGD, MNS, GCK, etc.



(1) GCK low-voltage withdrawable switchgear
The base material is made of 1.5mm high-quality cold-rolled steel plate (Baosteel SGCC certification), the cabinet body is galvanized, and the corrosion resistance level reaches C4 standard
The internal busbar is made of T2 electrolytic copper (conductivity ≥98%), and the contact surface is silver-plated (thickness ≥8μm) to ensure stable conductivity for 30 years
Unique modular design (modular unit 25mm), supports flexible expansion, and comes standard with IP40 protection level (upgradeable to IP54)
Technical parameters:
Rated working voltage: AC 400V
Rated insulation voltage: AC 690V
Rated current of horizontal busbar: 6300A (peak withstand 125kA/1s)

(2) KYN28-12 high-voltage center cabinet
Fully assembled structure (no welding deformation), core components use imported epoxy resin cast circuit breakers (manufactured under ABB authorization)
The pressure relief channel complies with IEC 62271-200 standard, arcing tolerance of 31.5kA/1s
Five-protection interlocking mechanism passed the national type test (report number: GZ-2023-HV-0178)

Technical parameters:
Rated voltage: 12kV
Rated current: 4000A
Short-time withstand current: 50kA/4s


4.2 Technical parameters
Rated voltage: AC 400V~35kV
Short-circuit withstand: 65kA/1s
Protection level: IP30~IP54



4.3 Production process
CNC processing of copper busbar → busbar insulation coating → circuit breaker assembly → withstand voltage test (AC 4200V/1min).



4.4 Application scenario

Industrial scenario: seismic design (meet GB/T 13539.1-2018 vibration test), suitable for high corrosion/high vibration environments such as chemical industry and metallurgy.
Civilian scenarios: ultra-thin cabinet (thickness ≤ 600mm) + silent design (≤ 55dB), suitable for commercial complexes and data centers.


Group strength and service network: a stable foundation for cooperation



Dimension	Core content	Customer value
Group background	Registered capital of 120 million, 2 major production bases (Xiamen/Ningbo) Annual total production capacity of 8,000 tons, dual main businesses of new energy/low-voltage electrical (revenue ratio 6:4)	Risk resistance: stable capital chain, worry-free delivery of 100,000+ batch orders Professional focus: understand photovoltaic/electrical industry standards (such as IEC 62730)
Global service	4 major regional branches (Europe/Middle East/Southeast Asia/Northeast Asia) The local warehouse covers 500+ models, and 48-hour emergency delivery	Zero time difference response: after-sales service arrives on site within 2 hours, maintenance costs are reduced by 60% Localized trust: Spanish/Iranian branches provide local language technical support Response speed: Free samples 1-2 days (conventional)
Response speed	Free samples 1-2 days (conventional) New mold 20-30 days (including mold, industry 45 days)	Mass production 15-20 days (after payment). Grab the market: new product launch cycle shortened by 50%

Customization process (7 steps of transparency)
Customers provide drawings (PDF/CAD/3D) → 48-hour process evaluation (with quotation) → Sample order + 50% mold fee → 20-30 days mold production → Free 1-20 samples for testing → 50% mold fee after samples are passed → Bulk order + 30% advance payment → 15-20 days production → 70% payment after inspection → Delivery by designated logistics
