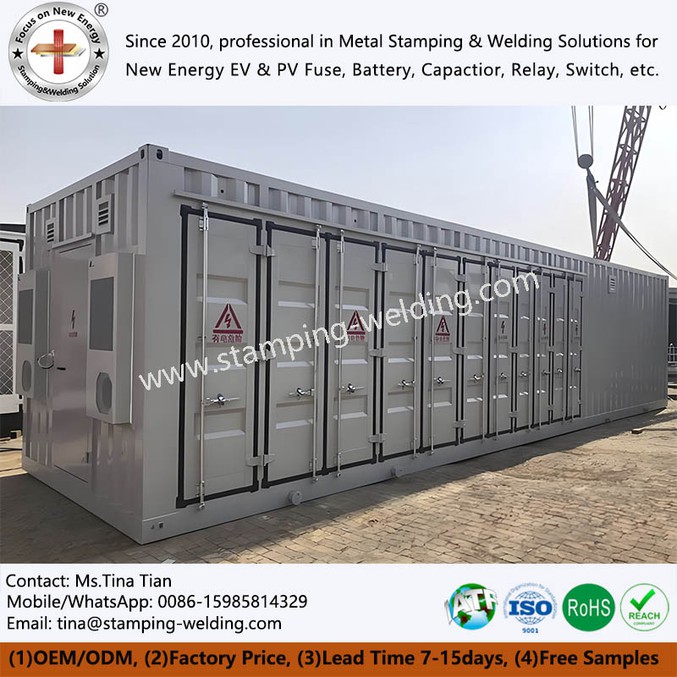

System Energy Storage Cabinet
System Energy Storage Cabinet is a compact energy storage device that integrates battery modules, battery management systems, energy storage converters, energy management units and thermal management systems into standardized outdoor cabinets. This product realizes the storage and release of electric energy through the internal electrical connection and control logic collaboration between the DC side and the AC side, and has functions such as peak shaving and valley filling, demand side response, backup power supply, and new energy consumption.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
System Energy Storage Cabinet
In the context of the rapid development of distributed energy and microgrids, system energy storage cabinets have become the core infrastructure for balancing power supply and demand and improving energy utilization. This series of products is specially designed for industrial and commercial scenarios. It integrates battery packs, thermal management systems, intelligent BMS, fire protection modules, and grid-connected control technology to form a highly integrated mobile energy storage unit.
Product advantages
Not only energy storage, but also value creation.
Plug and play, extremely fast deployment
Our CCS Cabinets complete all internal wiring, system joint debugging and functional testing in the factory. After arriving at the site, they can be put into operation with only simple external connections.
Flexible expansion and on-demand configuration
Whether you are an initial small-capacity pilot or need to expand capacity in the future due to business expansion, you can easily achieve linear expansion of power and capacity, and protect your initial investment.
Intelligent operation and maintenance, cost reduction, and efficiency improvement
Built-in advanced EMS energy management system supports dual monitoring of local and cloud. Through the visualization platform, you can understand the system's operating status.
Extreme safety, full protection
The system has built a three-level safety protection system from batteries, battery packs (PACK), to the entire cabinet. The backup battery cabinet uses intrinsically safe lithium iron phosphate (LFP) batteries.
Details
"Human Factors Engineering" Thinking for Operation, Maintenance, and Expansion.
The maintenance surface is oriented in the same direction
All wiring terminals, communication ports, fuse holders, and circuit breakers are arranged on the front of the Solar Wind Energy Storage Cabinet or on the same operating surface to avoid "circuit work around the cabinet."
01
Layered drawer-type power module
A single power module supports hot-swappable guide slots and is equipped with a mechanical interlocking device to prevent misoperation while powered on for the battery bank cabinet.
02
Expandable busbar reserved space
Pre-set copper bar expansion interfaces on the top and bottom of the cabinet support the parallel connection of multiple cabinets without the need for Cell Connection System Cabinets.
03
Signage and identification system
Energy Storage Cabinet for Outdoor adopts a permanent laser engraving + replaceable lamination double insurance method to meet the dual needs of project acceptance and later transformation.
04
Application advantages
High ambient temperature capacity reduction problem
Through independent air ducts and cell-level temperature sampling, the usable capacity retention rate environment is improved to a level significantly better than the industry standard for CCS Cabinet.
Compatibility issues with the capacity expansion of old stations
Provide a "virtual internal resistance matching" function so that new and old All-in-One PV Power Storage System Cabinets from different batches can be mixed to avoid circulation caused by differences in internal resistance.
The debugging cycle of multinational projects is long
Multi-language HMI and regional power grid parameter templates are pre-installed at the factory. Basic adaptation can be completed on-site by simply selecting the country code.
The skill threshold for operation and maintenance personnel is high
A QR code engineering quick guide is printed on the inside of the outdoor cabinet energy storage system door, reducing on-site dependence on high-end engineers.
contact us
We have mature customized design capabilities, large-scale production capabilities, and full-process engineering service advantages. We can accurately match the System Energy Storage Cabinet required by your project to help your energy storage project run efficiently and operate stably. We sincerely invite you to go to the inquiry page to connect with us and discuss cooperation details.
