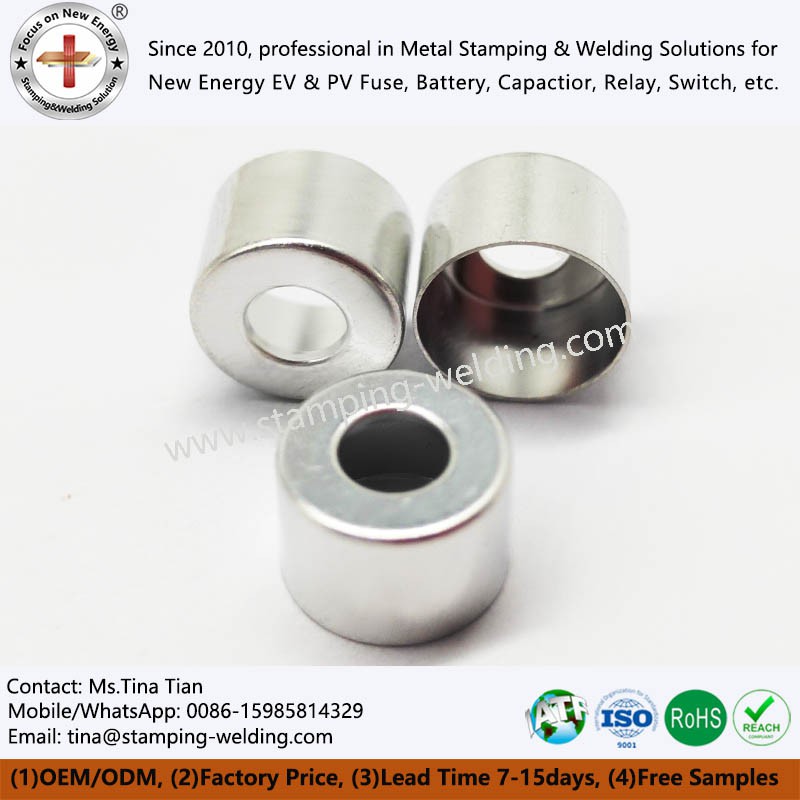

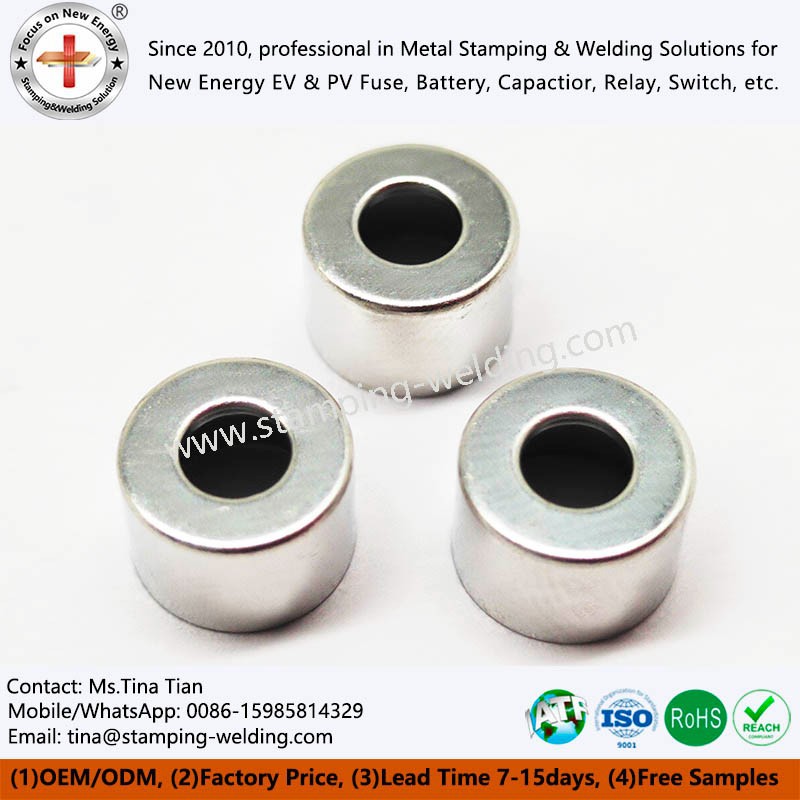

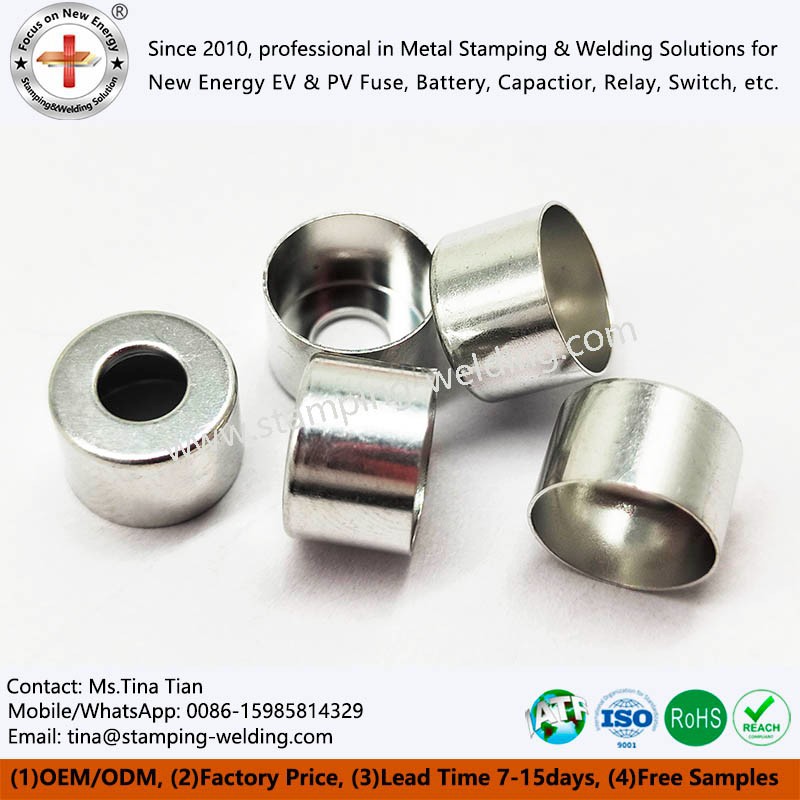

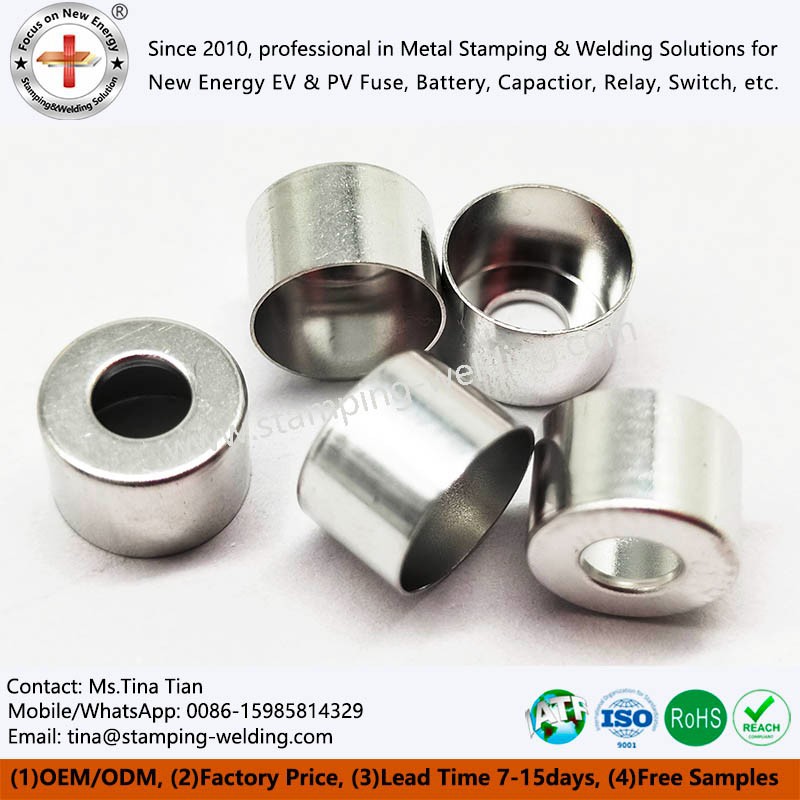

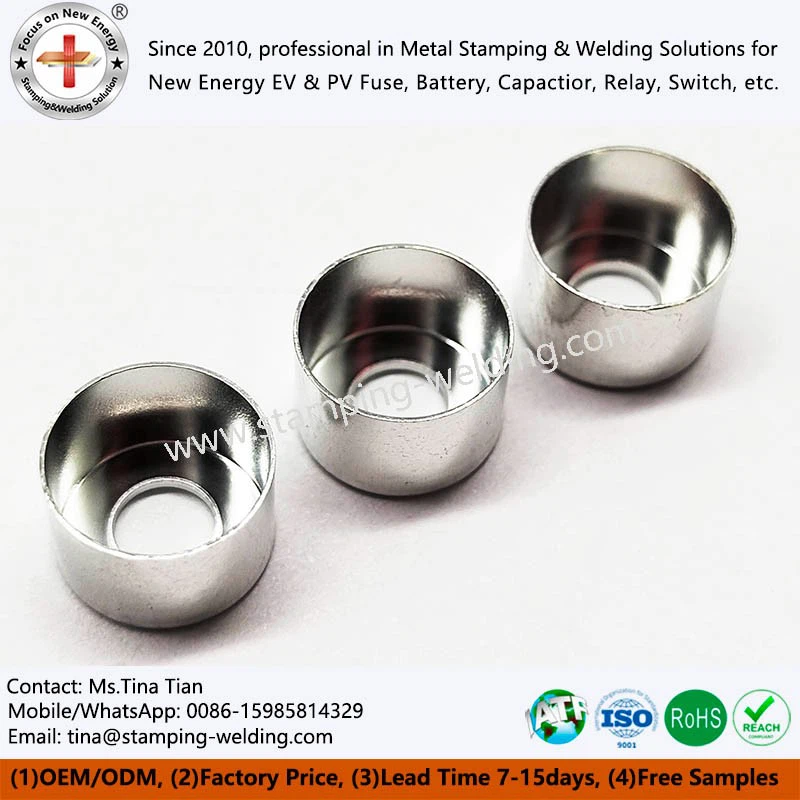

Bright Tin-plated Fuse Copper Cap
The Bright Tin-plated fuse copper cap is designed specifically for high-end protection devices such as photovoltaic fuses (PV Fuse), electric vehicle fuses (EV Fuse), energy storage system fuses (ESS Fuse), power distribution units (PDU), UPS DC links, NH and BS fuses, high-speed fuses, etc. As a key component of the fuse end cap system, the copper outer cap plays a core role in conductivity, heat conduction, mechanical fit, and electrical stability.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Bright Tin-plated fuse copper cap is a fuse outer cap component made of high-purity copper as the substrate, which is precision stamped and coated with a bright tin coating on the surface. Its structural design balances assembly compatibility and electrical performance, making it suitable for forming high reliability fuse assemblies with components such as brass inner caps and blade end caps. Suitable for engineering scenarios with strict requirements for current carrying capacity, thermal management, assembly consistency, and long-term reliability, especially for high-voltage direct current systems, on-board main circuit protection, energy storage cabinet protection, and industrial frequency conversion equipment.
Production process and technical characteristics
Material selection
Bright Tin-plated fuse copper cap strictly controls T2Y2 copper incoming materials, confirms that% IACS ≥ 97 and HV80~110s meet the standards, avoids fluctuations through material traceability, and ensures assembly compatibility and stable performance.
01
Precision dimension control
Accurately control the diameter, height, and wall thickness of Tin plated copper end caps to ensure precise fit with the copper outer cap, melting tube, and blade foot, and adapt to stable and efficient automated assembly without jamming.
02
Surface treatment and smoothness
Custom copper caps use a bright tin coating as the core, combined with silver plating, lead-free matte tin, nickel plating, and ultrasonic cleaning processes to remove burrs and oxide layers, improve surface smoothness and fit, and reduce contact resistance.
03
Stamping and Forming Stability
High precision progressive molds and stable stamping parameters ensure consistent copper cap forming, uniform stress, and no deformation, avoiding assembly eccentricity and loosening issues, fundamentally guaranteeing compatibility.
04
Engineering application scenarios
photovoltaics (PV fuses)
Cap copper is compatible with photovoltaic combiner boxes and string inverters for front-end protection, capable of withstanding DC1000V/1500V high voltage, withstanding outdoor humid, high and low temperature environments, and ensuring stable power supply for photovoltaic systems.
New energy vehicles (EV fuses)
Copper pipe cap is equipped with on-board PDU, battery pack, and high-voltage distribution circuit, which meets the IATF16949 automotive grade standard and is suitable for vibration, high and low temperature cycling conditions.
Energy storage field (energy storage fuses)
Copper cap fittings are used for energy storage cabinets, battery clusters, BMS fuses, to adapt to high current DC transmission, control abnormal temperature rise, and avoid short circuit risks.
Design advantages
The Copper end cap solder fitting adopts a symmetrical structural design, which ensures uniform force distribution during assembly and is not prone to eccentric tilting, significantly improving the overall structural stability of the fuse.
The size chain is finely matched to accurately fit the clearance between the inner and outer caps, balancing assembly smoothness and clamping reliability. The lightweight structure is also more suitable for high-speed automated production lines.
The overall design of Copper end plate adopts high compatibility universal design, which can cover multiple series of fuse specifications such as PV, EV, energy storage, NH/BS, etc., and fully supports customized structure and size development. It can be flexibly adjusted according to customer melting tube, blade foot and assembly condition requirements, truly achieving one-stop exclusive design matching.
contact us
If you are developing a new generation of fuse products or wish to optimize the assembly process of existing fuses, please feel free to contact us. We can provide engineering support such as free samples of Bright Tin-plated fuse copper cap, drawing reviews, and assembly compatibility verification.
