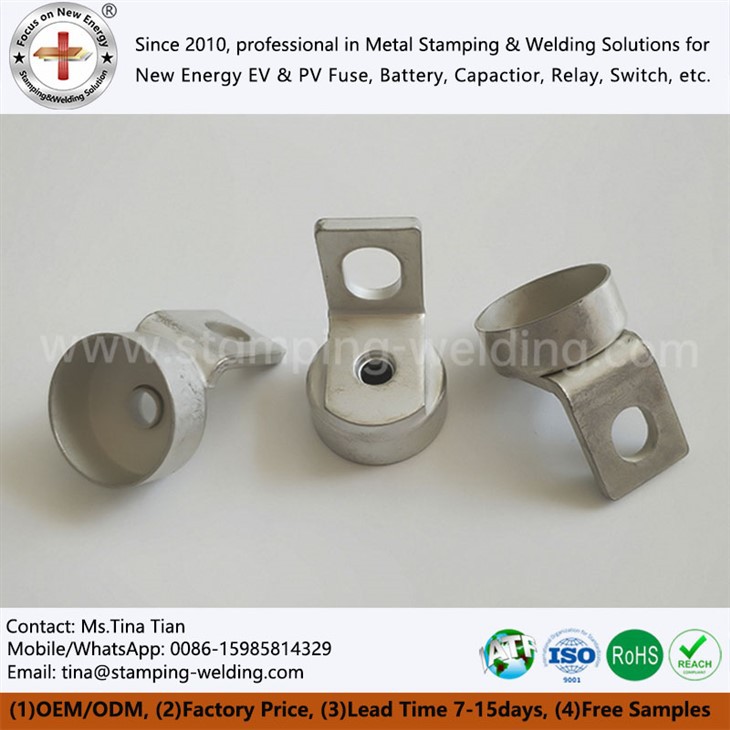

Cap And Contact For Battery Power And Auxiliary Fuses
The Cap and Contact for Battery Power and Auxiliary Fuses is a key functional component in the high-voltage and auxiliary power systems of new energy vehicles, used for electrical connection and mechanical fixation of the fuse terminals. This assembly is typically installed in the main circuit, auxiliary power circuit, or high-voltage distribution unit of the battery pack, undertaking multiple engineering functions including current conduction, structural support, and safety isolation after the release of fused energy.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
The Cap and Contact for Battery Power and Auxiliary Fuses is specifically designed for the high-voltage power systems of new energy vehicles. It precisely adapts to various fuses in the main and auxiliary circuits of the power battery pack, fulfilling three key functions: current transmission, sealing protection, and circuit protection. It can stably conduct high on-board current, isolate contaminants such as moisture and dust, prevent circuit abnormalities, and efficiently support overload and short-circuit protection of the vehicle's high-voltage system. It is suitable for harsh operating conditions such as 800V high-voltage fast charging and high-frequency vibration in vehicles, and is compatible with core high-voltage components such as PDUs, DC fast charging ports, and MCUs, providing core supporting components for the safe and efficient operation of the power system of new energy vehicles.
Core manufacturing process
Precision Stamping
We select high-quality copper materials that meet standards and use high-precision molds to complete the stamping process. This precise machining ensures the accurate processing of the cap and contact structures. Strict control over positioning accuracy and comprehensive dimensional and appearance inspections are performed throughout the process to eliminate deviations and distortions, providing qualified semi-finished Cap and Contact for Battery Pack Fuse for subsequent processes.
Multi-faceted Welding
Before welding, the relevant parts of the Cap and Contact for EV Charging Fuse undergo fine pretreatment such as degreasing and grinding to remove impurities and oxide layers and avoid the risk of incomplete welding. During welding, multiple processes are adapted and parameters are precisely controlled to balance efficiency and quality. After welding, the appearance, strength and conductivity are inspected to ensure that the product is firmly connected and has stable conductivity, making it suitable for high-voltage vehicle conditions.
Comprehensive Quality Control
We have established a comprehensive quality control system covering raw material entry, process inspections, and final product inspection. We focus on verifying core Copper Cap Contact for Eaton Bussmann Series EV Fuses indicators, adding specialized tests for critical processes, and maintaining batch records for traceability. This ensures that products meet automotive standards and relevant quality system requirements.
Application scenarios
Power Battery Pack (PDU)
In the power battery pack PDU, the product is equipped with fuses to transmit current and protect the main circuit, resist the impact of charging and discharging and rapid acceleration of large current, build a strong short circuit protection barrier, and ensure the stable and safe power supply of the battery pack.
01
DC Fast Charging Port
Compatible with 800V high-voltage fast charging port fuses, the product boasts excellent conductivity and structural stability, withstanding the high current surges of fast charging. It also features sealed protection to prevent poor contact, supporting efficient adaptation to high-voltage fast charging scenarios.
02
Motor Controller (MCU)
In the MCU, the product's fuse protects precision electronic components, resisting surge currents, stabilizing power transmission, adapting to vehicle vibration conditions, preventing weld detachment, and ensuring the operation of the motor control system and the stability of the vehicle's power delivery.
03
Auxiliary Circuit
The product is compatible with vehicle auxiliary circuit fuses, covering power transmission for various auxiliary systems. It balances conductivity and protection, relying on standardized manufacturing consistency to adapt to multiple vehicle models and ensure the stability of auxiliary systems and the overall vehicle electrical system.
04
Customization process
Requirement Coordination: The client provides product-related PDF/CAD/3D format drawings, simultaneously informing us of automotive scenario adaptation requirements, electrical parameters, and batch production needs. Our technical team precisely coordinates with the client, identifying key aspects of Copper Cap Contact for Electric Vehicle Fuse customization and confirming no deviations from their requirements.
Process and Quotation Assessment: Leveraging our end-to-end production process advantages, we comprehensively assess the feasibility of the Copper Cap Contact for Semiconductor Fuses customization process, mold development cycle, and cost. Based on the client's needs, we provide a personalized customization solution and detailed quotation for client review and confirmation.
Sample Order Confirmation: After quotation approval, the client places a sample order and prepays 50% of the mold fee. We simultaneously initiate the R&D and manufacturing of a dedicated mold for the Cap and Contact for EV Charging Fuse customization, strictly controlling mold precision to ensure it perfectly matches the product's structure and dimensional customization requirements.
Sample Trial Production and Delivery: After mold manufacturing is completed, we conduct small-batch trial production. After passing full-process quality control testing, we provide 1-20 samples free of charge via express delivery to the client to assist in Copper Cap Contact for Electric Car Fuse compatibility and performance testing.
Sample Acceptance: After the customer completes sample testing and confirms its compliance, the remaining 50% of the mold fee will be paid. Both parties will simultaneously finalize the process standards, quality requirements, and delivery details for mass production, laying the foundation for mass production.
Mass Production and Delivery: After the customer places a bulk order and pays 30% in advance, we will assess our capacity and delivery date and initiate production. Throughout the process, we will adhere to standardized procedures and customized requirements to control Copper Cap Contact for Electric Vehicle Fuse quality. Upon completion, we will notify the customer to pay the remaining balance and deliver the goods to the designated address.
Frequently Asked Questions
Q: WHAT ARE YOUR CERTIFICATES?
A: We have ISO9001, IATF 16949 certificates, RoHS and Reach.
Q: DO YOU ACCEPT OEM?
A: Yes. All Cap and Contact for Battery Pack Fuse size can be customized. Logo can be made as your request.
Q: CAN YOU PROVIDE SAMPLES?
A: Yes, but the Copper Cap Contact for Vehicle Fuse sample fee and freight will be paid by your company.
Q: WHAT'S YOUR DELIVERY TIME?
A: About 10-15 days for Copper Cap Contact for Electric Vehicle Fuse samples, 10-15 days for mass production.
Q: WHY CHOOSE OUR Cap and Contact for Battery Power and Auxiliary Fuses?
A: We are the original factory in China, can supply the Ex-works;
We have been in professional in new energy field 15 years more and have enough successfull experiences to help you improve technology but cost down;
We have branches sales office in India, Iran, Spain, Germany, Japan, can supply the fast local service.
contact us
If you have any needs regarding the procurement, selection, sample request, or customization of Cap and Contact for Battery Power and Auxiliary Fuses, or if you wish to learn more about the product details, please feel free to contact us. We will arrange a professional team to provide one-on-one service, customize adaptation solutions, and ensure stable supply, accurate selection, and efficient procurement.
