Electrical Fuse Components
Model Number:ASWT-F005-1
Material:T2
Application:EV/PV/NH Fuse link
MOQ:1000pcs
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

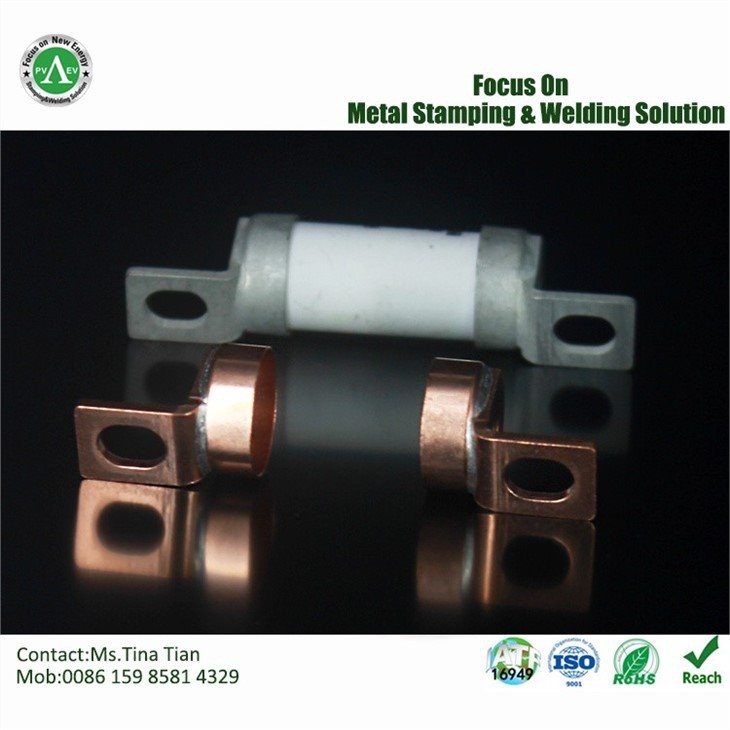

This Electrical Fuse Components is made of tin plating copper.These fuse components are used as end terminal for all kinds of bolted DC Fuses.DC Fuse mainly used in DC combiner box in solar PV systems. When PV panel or inverter caused overload or short circuit, it trip off immediately, to protect PV panels, DC fuse also used to protect other electrical parts in DC circuit, when overload or short circuit.
Product Name | Electrical Fuse Components |
Model No | ASWT-F005-1 |
Dimensions | OEM/ODM as your drawing |
Material | 99.99% Copper T2Y2,%IACS≥97,HV:80~110s; |
Processing | Tooling--Stamping--Riveting--Resistance Tin/Silver Brazing/ Laser Welding--Plating |
Surface Treatments | 1.Silver plating; 2.Bright tin plating; 3.Lead-free fog tin plating; 4.Nickel plating; 5.Ultrasonic cleaned and passivation. |
Supply Methods | 1.Fuse Outer Cap; 2.Fuse Inner Cap; 3.Fuse Outer Cap and Contact Welded Assembly Set; 4.NH Fuse Knife; 5.Fuse Holder Copper Knife,etc. |
Packing | Plastic inside and carton/pallet outside |
Certifications | ISO9001,IATF16949,RoHS,Reach,etc. |
Production Capacity | 5 millions pcs/month |
Samples | Allowed,made by Laser cutting or CNC punching machine, Lead time 5-10days. |
Orders | MOQ 1,000pcs/item,made by stamping die, lead time 20-30days(die&products). |
Shipping Methods | By Air/Sea/Train,Express(DHL/UPS/TNT/FEDEX,etc) |
Payment Items | 30% deposit and balance before shipment by Bank T/T or L/C at sight. |
PRODUCT PROCESS
The T2Y2 copper caps are stamped by not less than 70 tons punching machine.The knife-shaped contacts are stamped by not less than 35 tons punching machine.
Two accessories are press riveted before welding.The welding joint is smooth and horizontal torque of contact knife is not less than 6N*M.
Last tin-plated,silver plated or as customer requirement.
To ensure stable quality,during the stamping process,the key sizes of inner diameter and outer diameter of the caps,the angle,length and other important sizes of knife-shape contacts are required to be first inspected, and the inspection frequency is 20 minutes/time.
No. | Items | Description |
1 | Various Process | 1.Stamping; 2.Red Punching; 3.Machining; 4.Riveting; 5.Welding; 6.Laser Cutting; 7.CNC Punching; 8.Bending; 9.Electroplating,etc equipments. |
2 | Various Welding | 1.High temperature tunnel oven soldering(tin-welding); 2.Resistance Tin/Silver Brazing; 3.Laser welding; 4.Argon arc welding; 5.Tig welding,etc. |
3 | Technical Service | Not only qualified products and competetive price,but also advanced/ trending technology solutions. |
From raw materials to finished caps, all processes include mould design,stamping,welding, testing are finished in our factory. Only the plating is finished by our supplier 5km near our factory.
QUALITY GUARANTEE
We are committed to the highest quality standards. All quick connect end cap for copper pipe are inspected before shipping. We have certificates of ROHS directives, REACH, ISO9001, SGS guidelines and IATF 16949.
We offer various size of copper pipe end caps, outer caps, brass inner caps,all kinds of knife-type terminal,fuse knife terminals, fuse link contacts ,socket base and clips etc.Also your samples or drawings are welcome.
Sep1: Put the end caps contacts into PE bag;
Sep2: Hot sealed the bag when The quantity is enough;
Sep3:Fill the outer box with a bubble pad;
Sep4: Put the packed products into the outer box and seal it;
Sep5:Attach the right label on the upper left corner of the outer container.
Sep6:Put the cartons on pallet and wrap with stretch film.
The shipping time to main countries over the world is about 7-10 days by express.
