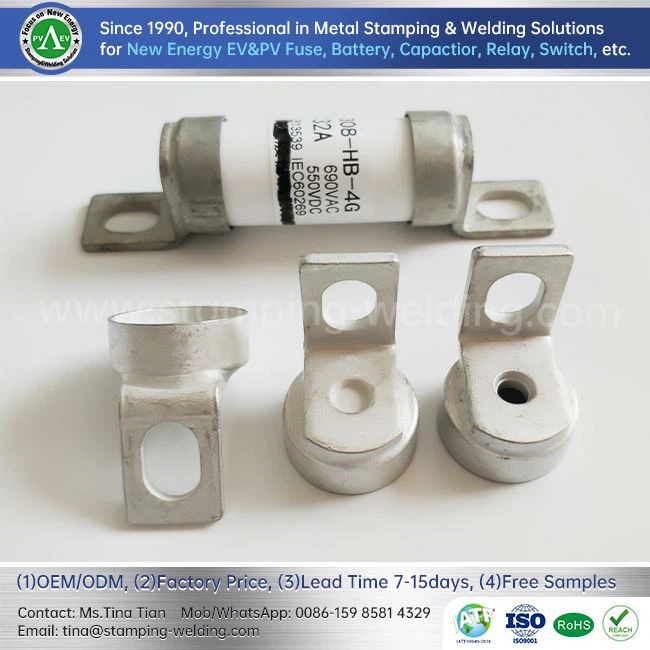

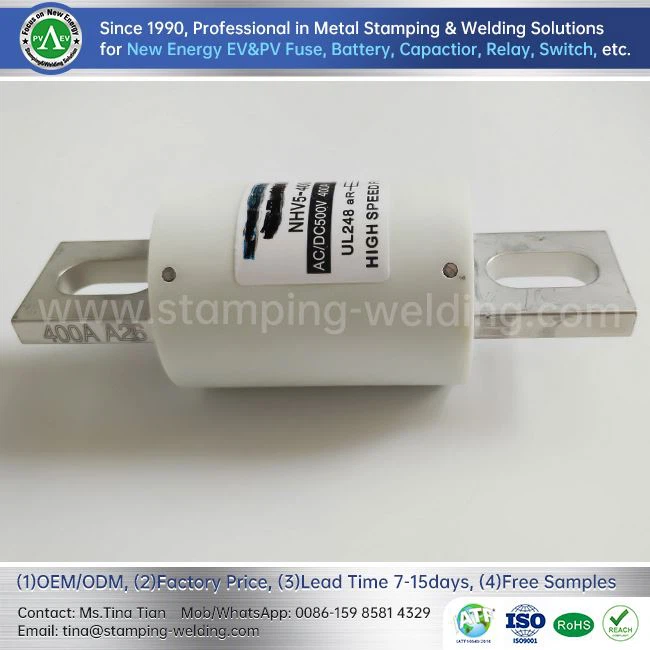

Link For Photovoltaic Fuse

Fusible Element: The fusible element is the core of the photovoltaic fuse, designed to melt and break the circuit when exposed to overcurrent or short circuit conditions. Typically made from a specialized alloy or a blend of materials with precise melting points, this component ensures rapid and reliable operation under excessive current.

Housing Material: The housing material provides mechanical durability, electrical insulation, and protection from environmental elements. High-quality thermoplastics or thermosetting plastics are commonly used, offering resistance to UV rays, temperature variations, and other external factors.

End Caps: End caps are key parts that secure the fusible element in place and ensure proper electrical connections within the fuse. These are typically crafted from highly conductive materials such as copper or brass, which reduce resistance and minimize power loss within the circuit.

Filler Materials: Some photovoltaic fuses incorporate filler materials to offer additional mechanical support and improve heat dissipation. These fillers are often made from substances with high thermal conductivity, boosting the fuse's ability to manage heat during operation.

Labels and Markings: Labels and markings on the fuse are essential for conveying important details such as fuse ratings, specifications, and safety certifications. They are printed on durable, weather-resistant materials to ensure long-lasting visibility and legibility.

PRODUCT FUNCTIONS

--

Overcurrent Protection: Photovoltaic systems are susceptible to overcurrent situations caused by factors like short circuits or other irregular conditions. This product is engineered to detect such overcurrent incidents and swiftly disconnect the circuit, preventing the flow of excess current and protecting critical PV components from potential harm.

Fault Current Interruption: In the case of faults, such as ground faults or arc faults, the product quickly isolates the affected section of the circuit. By doing so, it prevents the faulted area from impacting the rest of the system, reducing risks and potential damage to the PV setup.

Fire Prevention: Faults within PV systems can lead to excessive heat generation, heightening the risk of fire. This product plays a vital role in preventing fire hazards by interrupting current flow during fault conditions, thus reducing the chance of thermal damage and fire outbreaks.

Equipment Protection: The Link acts as a safeguard for valuable and sensitive PV system components, like solar panels and inverters, shielding them from damage caused by overcurrent incidents. By cutting off the circuit, it helps avoid costly repairs or replacements of these components.

System Reliability: The Link boosts the overall dependability of the PV system by addressing overcurrent issues immediately. This reliability is crucial for meeting energy production goals and minimizing downtime or potential system failures.

Solar Panels: The Link is essential for protecting individual solar panels in a photovoltaic (PV) array from overcurrent incidents and faults. In large-scale solar setups, where many panels are connected in series or parallel, the Link ensures that localized issues within a single panel don't disrupt the entire array's operation.

Inverters: In photovoltaic systems, inverters are responsible for converting the direct current (DC) generated by solar panels into alternating current (AC) for use in electrical grids or buildings. The Link for Photovoltaic Fuse safeguards inverters from overcurrent occurrences, ensuring their smooth operation and protecting them from potential damage.

PV Combiner Boxes: In PV systems, combiner boxes aggregate the output from multiple solar panels before sending it to the inverter. The Link is integrated into these combiner boxes to offer protection against overcurrent conditions and isolate any problems arising in specific panel strings.

Charge Controllers: In off-grid PV setups, charge controllers manage the charging and discharging of batteries. The Link for Photovoltaic Fuse plays a key role in shielding these controllers from overcurrent situations that might occur during the battery charging or discharging cycles.
