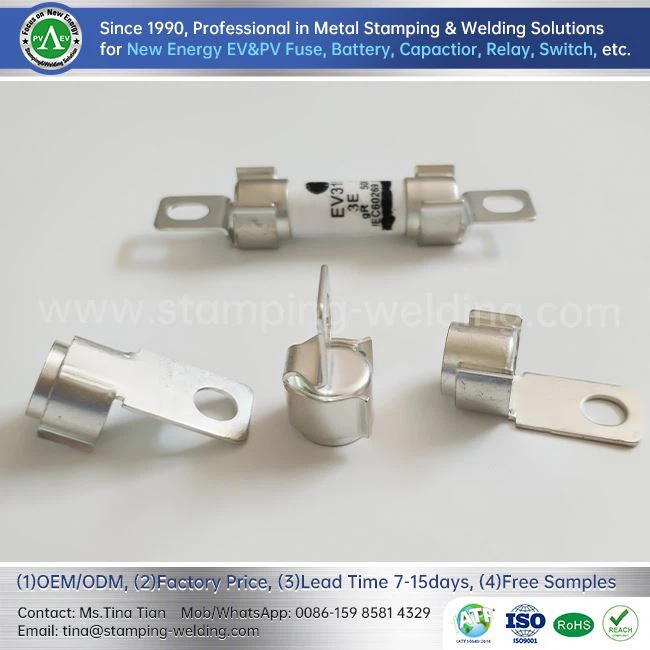

Electric Vehicle Silver-plated Fuse Contact Caps

Electric vehicle silver-plated fuse contact cap refers to an electrical component used to protect circuits from damage by overload current. This contact cap is usually located in the electrical system of an electric vehicle as an important part of the circuit. Fuse contact caps are usually made of metal materials and are plated with silver to improve conductivity. When the current is overloaded, the electric vehicle fuse opens the contacts, cutting off the circuit.

Excellent conductivity: Copper is a good conductive metal, and silver plating further improves the conductivity of the contact cap. Electric vehicle silver-plated fuse contact cap can effectively conduct current and reduce resistance, ensuring that electrical energy in the circuit can be transmitted efficiently.

Good corrosion resistance: Silver has good chemical stability. The electroplating method is used to make the surface of the copper contact cap of the fuse less susceptible to oxidation or corrosion. It can work stably for a long time in complex environments, ensuring the reliability and safety of the circuit.

High thermal conductivity: Copper is an excellent thermal conductive material, and silver also has good thermal conductivity. Therefore, the silver-plated copper contact cap can not only effectively conduct current, but also quickly transfer the heat generated in the circuit to prevent the circuit from overheating.

Good contact performance: Silver plating can improve the surface flatness and smoothness of the contact cap, making the contact cap more closely in contact with other electrical components. Good contact performance helps reduce contact resistance and improve circuit efficiency and stability.

Ease of processing: Copper is a metal material that is easy to process and shape, and the surface treatment of silver plating is also relatively simple. This makes the silver-plated copper contact caps highly processable during the manufacturing process, enabling products that meet the requirements to be produced quickly and efficiently.

Prerequisite work: Collect the required materials, mainly including copper materials and silver-plated materials. Copper is a common material used to make the main body of the contact cap, while silver-plated material is used to improve the conductive performance of the contact cap.

Cutting: Cut the copper plate to the appropriate size, and ensure that the quality and purity of the silver plating material meet the requirements.

Stamping: The copper material is shaped into the shape of the contact cap through stamping equipment. This step ensures that the formed contact cap has the desired shape and size and has a smooth surface with no obvious defects.

Welding: Weld the fuse outer cap and L-shaped contact blade to form a complete fuse copper contact blade cap.

Surface treatment: The formed contact cap is surface treated for silver plating. Surface preparation may include steps such as oxide removal, sanding and cleaning to ensure a smooth surface. This step is critical to the quality of the silver plating, as poor surface preparation may affect the adhesion and uniformity of the silver plating.

Silver plating: Silver plating is one of the key steps in the crafting process. Silver plating can be achieved by electroplating. In this step, a uniform silver layer is formed on the surface of the contact cap. Quality control of silver plating is very important because the thickness and uniformity of the silver plating layer directly affects the conductivity and corrosion resistance of the contact cap.

Quality inspection: The manufactured silver-plated copper contact caps of fuses need to undergo quality inspection. Through strict quality inspection, it is ensured that the quality of the contact caps meets the standards and can work properly in the electrical system of electric vehicles.

Electroplating: Electroplating is a method of improving the surface properties of metals by depositing a layer of metallic or non-metallic substances on them.
Heat treatment: Heat treatment is a method of heating and cooling metal to change its microstructure and mechanical properties. Common heat treatments include annealing, normalizing, quenching, tempering, etc.
Chemical treatment: Chemical treatment uses chemical reactions to change the properties of metal surfaces. Common chemical treatments include pickling, alkali cleaning, acid-base neutralization, electroless plating, etc.
Spray coating: Spray coating is the application of paint or paint mixtures to metal surfaces using spray equipment to form a protective or decorative coating. Such as spray paint, spray polymer, spray ceramic, etc.
Anodizing: Anodizing is a method of improving corrosion resistance, hardness, and wear resistance by forming an oxide layer on the surface of a metal. Common anodizing includes aluminum anodizing, magnesium anodizing, etc.
Mechanical treatment: Mechanical treatment is the use of mechanical methods to process metal surfaces to improve their surface quality and shape.

Battery management system: The battery management system of new energy vehicles is one of its key components and is responsible for monitoring, controlling and protecting the working status of the battery pack. Electric vehicle silver-plated fuse contact caps are often used in fuse boxes or fuse panels in battery management systems to protect battery packs from overcurrent damage.

Electric motor drive system: The electric motor drive system of an electric vehicle drives the vehicle by controlling the work of the electric motor. In motor drive systems, electric vehicle silver-plated fuse contact caps serve as circuit protection devices to protect motors and related electrical components from faults such as overcurrent or short circuit.

Charging system: The charging system of new energy vehicles is used to charge the battery pack, including external charging and on-board charging. Silver-plated copper contact caps can be used as protection devices in charging systems to prevent charging current from exceeding the set value and protect charging equipment and electric vehicles from damage.

Electric vehicle management unit: The electric vehicle management unit is one of the core components that controls the coordinated operation of various vehicle systems. Silver-plated copper contact caps can be used for circuit protection and control in electric vehicle management units to ensure the safety and stable operation of the vehicle.

Other electrical systems: In addition to the above main application scenarios, electric vehicle silver-plated fuse contact cap can also be used in other electrical systems of new energy vehicles, such as on-board chargers, electric power steering systems, braking systems, etc., to protect circuits and control current to ensure the normal operation of various vehicle systems.
